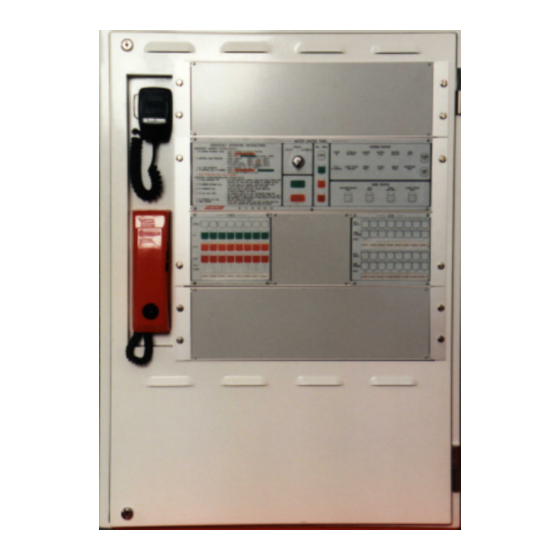

EV3000
Occupant Warning &
Intercommunications System
Commissioning Log Book
MAN1528-9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV3000 and is the answer not in the manual?

Questions and answers

Related Manuals for Ampac EV3000

Summary of Contents for Ampac EV3000

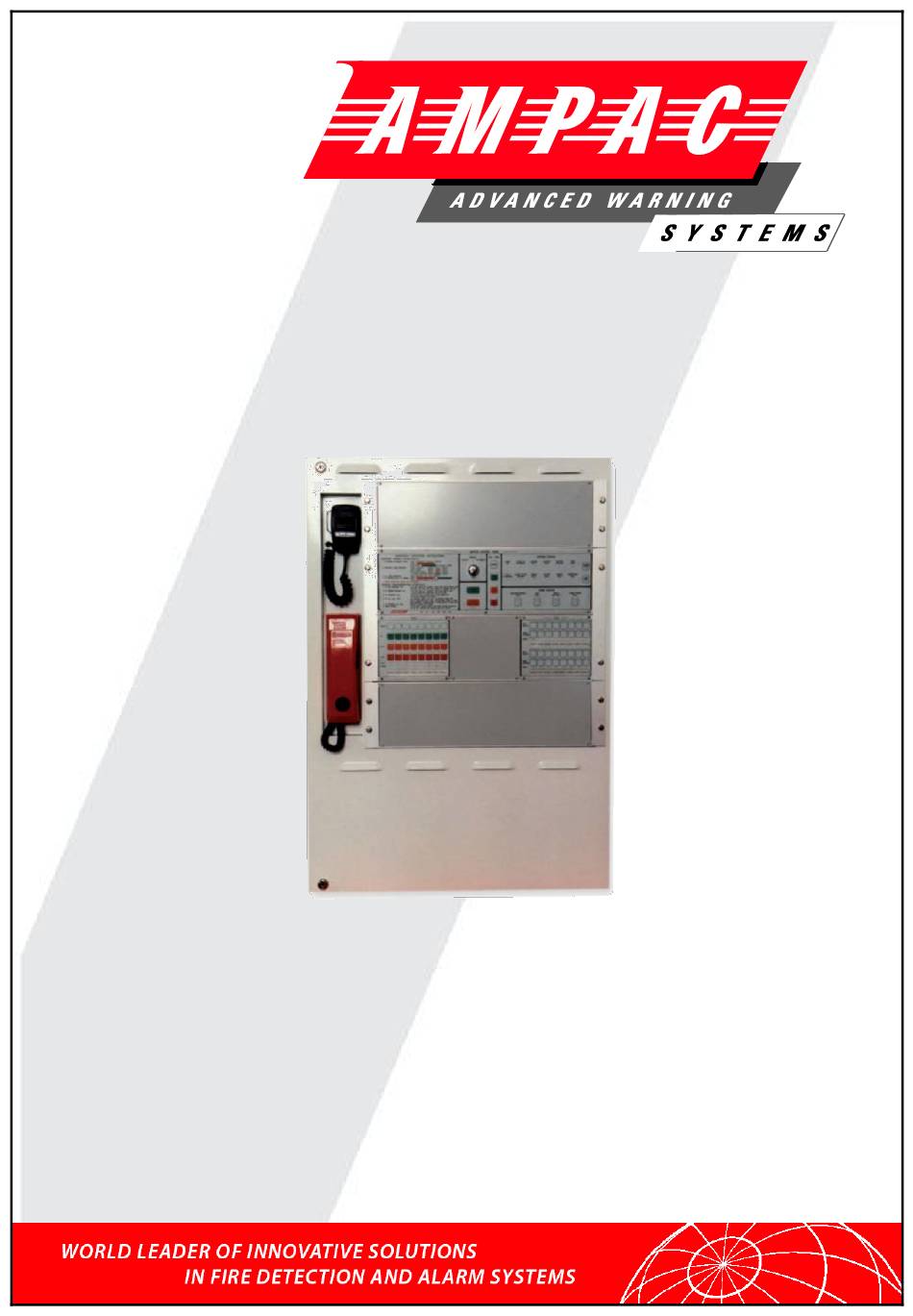

  • Page 1 EV3000 Occupant Warning & Intercommunications System Commissioning Log Book MAN1528-9...

  • Page 2: Table Of Contents

    Battery Information ..................... 8 Documentation ..................... 9 Appendix A Pre-commissioning Checklist ..........10 Appendix B EV3000 Commissioning Report ........... 11 Appendix C Sample Commissioning Report ........... 12 Appendix D Commissioning Acceptance Report ........13 Appendix E Maintenance Logs ..............15 12.1...

  • Page 3: Damage Report Form

    COMMENT: ......................…….................................…....……...............................………..PROJECT NAME: ..........…..SERIAL NO: ............RECEIVING PERSON: ..........PHONE NO: ............WE INVITE YOU TO MAKE ANY OTHER RELEVANT COMMENTS TO HELP IMPROVE OUR PRODUCT AND SERVICE TO YOU NOTE: WARRANTY AS PER AMPAC TERMS OF SALE.

  • Page 4: Purpose

    EV3000 COMMISSIONING LOG BOOK 2 Purpose The purpose of this manual is to assist in the installation and operation of the EV3000 Occupant Warning and Intercommunication System (OWIS). 2.1 Scope The information within this manual is only available to and for the use of personnel engaged in the installation and operation of the EV3000 OWIS.

  • Page 5: Wiring

    EV3000 COMMISSIONING LOG BOOK 3 Wiring Check that the installation requirements of AS 2220.2 – Section 5 are complied with NOTE: Complete the following tests with all power turned off / disconnected. 3.1 Mains Connection Check that the AC Mains Power supply is installed in accordance with AS2220.2 - 1989 Section 4.
  • Page 6 EV3000 COMMISSIONING LOG BOOK Record the result on the Commissioning Record by ticking the appropriate box. Repeat for each circuit. NOTE: THIS WILL NOT APPLY TO HIGH LEVEL COMMUNICATION FIRE ALARM INPUTS.

  • Page 7: Commissioning Record

    EV3000 COMMISSIONING LOG BOOK 4 Commissioning Record WHEN CARRYING OUT THE TEST OUTLINED IN SECTION 3 TICK BOX IF THE LINE RESISTANCE IS CORRECT CIRCUIT TYPE SPEAKER W.I.P. E.A.I.D VISUAL ALARM F.I.P. CIRCUIT TYPE SPEAKER W.I.P. E.A.I.D VISUAL ALARM F.I.P.

  • Page 8: Completing The Commissioning Report

    Short circuit the wiring at each WIP to ensure fault is displayed on the EIS zone control and an alarm is initiated on the EWS zone control panel at the MECP. Check the operation of each WIP as per the instructions in the EV3000 Operators Manual. Ref AS 2220-1 Section 3.
  • Page 9 EV3000 COMMISSIONING LOG BOOK Describe any ancillary equipment provided, e.g. SECP, Remote Paging Consoles. And refer to their individual manuals for commissioning requirements.

  • Page 10: Battery Requirements

    EV3000 COMMISSIONING LOG BOOK 6 Battery Requirements To calculate the battery requirements fill out the following 6.1 Calculating System Quiescent Current Number of EWS zones † x 0.002 † Total zones including those un-configured. Number of EIS zones † x 0.002 Main CPU current E.C.P.

  • Page 11: Documentation

    EV3000 COMMISSIONING LOG BOOK 7 Documentation Check that operator's manual is provided. Check that as-built drawings are provided. Check that termination schedules are provided. COMMENTS...

  • Page 12: Appendix A Pre-Commissioning Checklist

    EV3000 COMMISSIONING LOG BOOK 8 Appendix A Pre-commissioning Checklist EV3000 PRE-COMMISSIONING CHECK LIST EWIS SERIAL NO DATE Unpack system and check for any damage (see Operators Manual) Check all boards and connectors are firmly installed. Install amplifiers into amplifier frames. At this point do not remove termination resistors or install field wiring.

  • Page 13: Appendix B Ev3000 Commissioning Report

    EV3000 COMMISSIONING LOG BOOK 9 Appendix B EV3000 Commissioning Report REFER TO SECTION 5...

  • Page 14: Appendix C Sample Commissioning Report

    EV3000 COMMISSIONING LOG BOOK 10 Appendix C Sample Commissioning Report...

  • Page 15: Appendix D Commissioning Acceptance Report

    DATE OF COMMISSIONING TEST:..................... DATE OF ACCEPTANCE INSTALLATION:.................……..CLIENT'S SIGNATURE:....................……..... COMMISSIONING PERSON'S SIGNATURE:..............…..... WE INVITE YOU TO MAKE ANY OTHER RELEVANT COMMENTS TO HELP IMPROVE OUR PRODUCT AND SERVICE TO YOU NOTE: WARRANTY IS AS PER AMPAC TERMS OF SALE.
  • Page 16 EV3000 COMMISSIONING LOG BOOK...

  • Page 17: Appendix E Maintenance Logs

    EV3000 COMMISSIONING LOG BOOK 12 Appendix E Maintenance Logs 12.1 E1 Monthly Test Log Book To complete the Monthly Test Log follow the procedure below. Visually inspect the installation for damage, eg. all speakers, warden intercom points, visual alarms, control panels etc.
  • Page 18 EV3000 COMMISSIONING LOG BOOK Final Checks Press the Lamp Test switch at each Emergency Control Panel (Ref Fig 1 Page 7 Master Control Panel Layout). For a period of 6 seconds the buzzer will sound intermittently and all indicators will illuminate and flash, except system on batteries, charger fault, battery fault, battery isolate and power on.

  • Page 19: E2 Completing The Half Yearly Log

    EV3000 COMMISSIONING LOG BOOK 12.2 E2 Completing the Half Yearly Log 12.2.1 Introduction The Half Yearly Log includes all the requirements of the Monthly Test log with the following additional tests. A battery capacity test should be done in conjunction with the Half Yearly tests a minimum of once a year.

  • Page 20: E3 Battery Capacity Test

    EV3000 COMMISSIONING LOG BOOK 12.3 E3 Battery Capacity Test This test may be performed away from the system. Disconnect the system batteries and replace with substitute batteries. Discharge the system batteries at current of Idis , the formulae for the calculation of Idis can be found in section 6 ( record the value in section 6 ).

  • Page 21: E4 Monthly Test Report Forms

    EV3000 COMMISSIONING LOG BOOK 12.4 E4 Monthly Test Report Forms ------------------------------------------------------------------------------------------------------------------ MONTHLY TEST Is the installation damage free? Does the alarm system activate an alert at each ECP? Does each zone at each ECP activate when the keyswitch is in 'Manual'.

  • Page 22: E5 Half Yearly Report Form

    EV3000 COMMISSIONING LOG BOOK 12.5 E5 Half Yearly Report Form Is the installation damage free? Does the installation match the original records? Does the alarm system activate an alert at each ECP? Does the automatic evacuation sequence fully function? Does each zone at each ECP activate when the keyswitch is in 'manual'?

  • Page 23: Illustrations

    EV3000 COMMISSIONING LOG BOOK 13 Illustrations EMERGENCY CONTROL PANEL EMERGENCY OPERATING INSTRUCTIONS ALL C ALL S YS TEM S TATU S MANUAL EMERGENCY WARNING SYSTEM (E.W.S.) ISOLATE AUTOMATIC 1. T O SILENCE AUT OM AT IC T ONES PLACE KEYSWIT CH IN M ANUAL PO SIT IO N.

  • Page 24: Glossary Of Terms

    EV3000 COMMISSIONING LOG BOOK 14 Glossary Of Terms ALARM AMPLIFIER BACKGROUND MUSIC RELAY COMMON CONTACT (WIPER) COMMON PROCESSOR UNIT EAID EMERGENCY ALARM INITIATING DEVICE EARTH: BUILDING EARTH EMERGENCY CONTROL PANEL OCCUPANT INTERCOMMUNICATION SYSTEM END OF LINE OWIS : OCCUPANT WARNING AND INTERCOMMUNICATION SYSTEM...

  • Page 25: Definitions

    EV3000 COMMISSIONING LOG BOOK 15 Definitions Activating device - a device capable of being operated automatically or manually to initiate an alarm signal, e.g. a detector, a manual call point, or a pressure switch. Alarm system - facility provided in a building to give an alarm in the event of fire, civil commotion, bomb threat, leakage of toxic or noxious fumes, structural damage, or other emergency.
  • Page 26 Zone (floor) warden - a person who, during an emergency, assumes control over a particular floor or evacuation zone under the direction of the house warden. UNCONTROLLED DOCUMENT NOTE: Due to Ampac’s commitment to continuous improvement specifications may change without notice.
