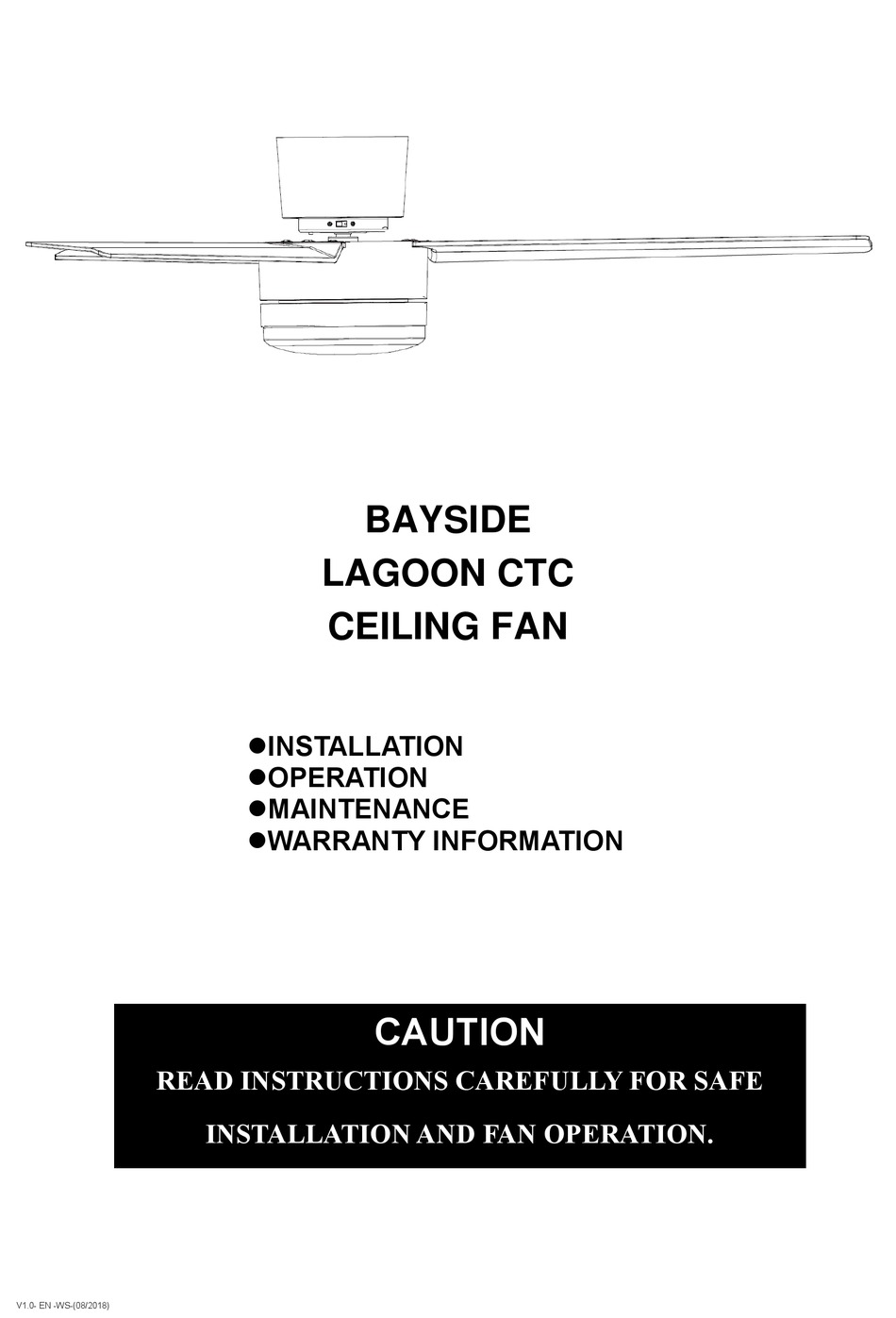

Page 1: Ceiling Fan

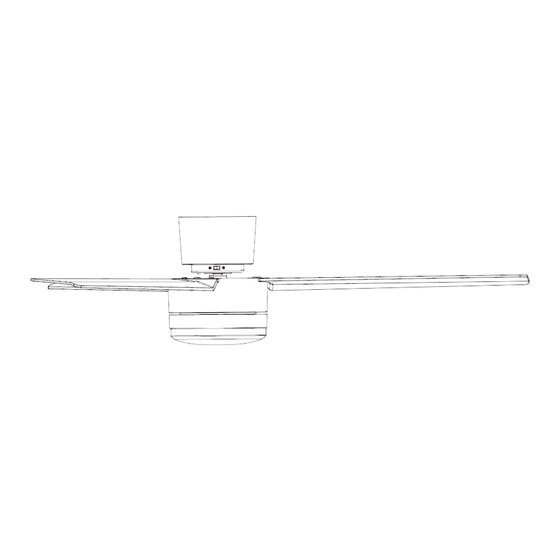

BAYSIDE LAGOON CTC CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0- EN -WS-(08/2018) -
Page 2: Safety Precautions
Lagoon CTC Fan Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Bayside product. To ensure correct function and safety, please read and save all instructions before using the product. SAFETY PRECAUTIONS In Europe: This appliance can be used by children aged from 8 years and above and persons with... - Page 3 Lagoon CTC Fan Installation Instructions all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1. A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan.
-
Page 4: Before Installation
Lagoon CTC Fan Installation Instructions BEFORE INSTALLATION Unpack your ceiling fan carefully. Remove all parts and hardware. Examine all parts, you should have the following: Fig. 1 Fan without light Fan with light Mounting bracket x 1 Mounting bracket x 1... -
Page 5: Installing The Mounting Bracket
Lagoon CTC Fan Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Secure the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 30kg, with two long screws provided. - Page 6 Lagoon CTC Fan Installation Instructions Light kit installation (For fan with light) Install the globe (included, Max. 23W, GX53) in the lamp holder. Fig. 4 HANGING THE FAN • Lift the fan assembly to the mounting bracket (1) and let the J-hook (2) of the mounting bracket go through the hole of the hanging canopy (3) and hang up the fan assembly.
-
Page 7: Electrical Wiring Diagram
Lagoon CTC Fan Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan. -
Page 8: Finishing The Installation
Lagoon CTC Fan Installation Instructions 2/ Remote with plugs Fig. 8 FINISHING THE INSTALLATION • Loosen two screws (1) from the mounting bracket (5). • Loosen two screws (2) by half thread from the mounting bracket (5). • Lift the hanging canopy (3) of the fan assembly up to... -
Page 9: Using Your Ceiling Fan
Lagoon CTC Fan Installation Instructions USING YOUR CEILING FAN FAN WALL CONTROL Turn on the power and check the operation of the fan. • OFF Position – Fan off • 3rd Position – Low fan speed • 2nd Position – Medium fan speed •... -
Page 10: After Installation
Lagoon CTC Fan Installation Instructions AFTER INSTALLATION WOBBLE: NOTE: Ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet. If the fan was mounted rigidly to the ceiling it would cause excessive vibration. Movement of a few centimetres is quite acceptable and DOES NOT suggest any problem. - Page 11 Bayside design cannot be held responsible for any repair other than those carried out by it or one of its Authorised Service Agents. Please keep this warranty information in a safe place. This information must be produced in the event of service being required.
- Page 12 Lagoon CTC Fan Installation Instructions CEILING FAN WARRANTY INFORMATION BAYSIDE WARRANTY HOTLINE - 1300 289 808 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ………………………………………………………...
