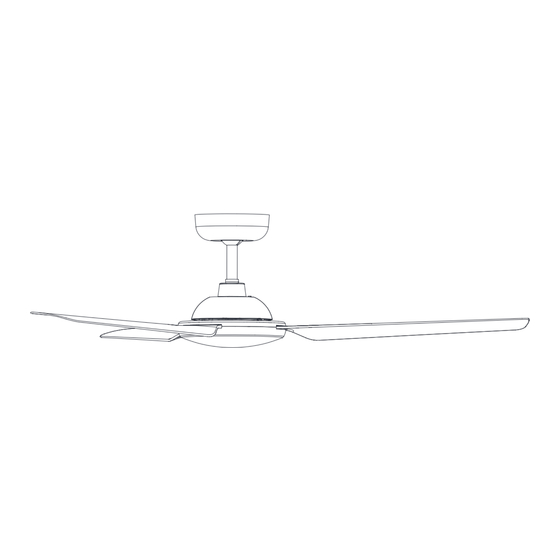

- Page 1 BAYSIDE SOMERSET CEILING FAN ⚫INSTALLATION ⚫OPERATION ⚫MAINTENANCE ⚫WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0- WS - AU (03/2024)
-
Page 2: Safety Precautions
SOMERSET Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Bayside product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 SOMERSET Installation Instructions A single-pole switch on the active of the receiver input of remote control must also be included in the wiring, and located the same room as the ceiling fan. Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.
-
Page 4: Before Installation
SOMERSET Installation Instructions BEFORE INSTALLATION • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
SOMERSET Installation Instructions INSTALLING THE MOUNTING BRACKET • The ceiling fan must be installed in a location so that the blades are spaced 300mm from the tip of the blade to the nearest objects or walls. • Install the hanging bracket to the ceiling joist or structure that is capable of carrying a load of at least 16kg, with two long screws provided. -
Page 6: Installing The Fan
SOMERSET Installation Instructions INSTALLING THE FAN Blade attachment 1. insert the blade into the slot of rotating member of fan motor assembly. Align the 2 holes on the blade with the 2 holes on the rotating member of fan motor assembly and using 2 blade screws with lockwashers (supplied in fan parts bag) to secure the blade to the fan motor assembly. - Page 7 SOMERSET Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. USE WITH WALL SWITCH WIRING DIAGRAM: Ensure the motor earth wire is connected to the single earthing terminal block “1”...
-
Page 8: Finishing The Installation
SOMERSET Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body back to the earth terminal at the terminal block on the mounting bracket. -
Page 9: Reversing Switch
SOMERSET Installation Instructions REVERSING SWITCH Your ceiling fan can operate in either summer or winter mode. SUMMER Mode: The reverse switch shall be in the “Left” (SUMMER) position to make the fan rotate in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. WINTER Mode: The reverse switch shall be in the “Right”... -
Page 10: Care And Cleaning
To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners. • The motor has a permanently lubricated ball bearing so there is no need to oil. TECHNICAL INFORMATION 48” BAYSIDE SOMERSET Fan Model SKU# 213024 Rated Voltage... - Page 11 Bayside design cannot be held responsible for any repair other than those carried out by it or one of its Authorised Service Agents. Please keep this warranty information in a safe place. This information must be produced in the event of service being required.
- Page 12 SOMERSET Installation Instructions CEILING FAN WARRANTY INFORMATION BAYSIDE WARRANTY HOTLINE - 1300 289 808 Complete and retain this form for your personal records and warranty purposes. NAME………………………………………………………………………………… ADDRESS…………………………………………………………………………… ……………………………………………………POSTCODE…………………… MODEL NUMBER…………………………………………………………………… (PO# + DATECODE Sticker here) PO NUMBER or DATECODE ………………………………………………………...
