- Page 1 LX20+ Cordless Primary Light User Manual www.diverite.com 386-752-1087 August 2019...
-
Page 2: Table Of Contents
Table of Contents Product Description .................. 1 Tech Specs ....................2 Important WARNINGS ................3 Installing the Batteries ................4 Adjusting the Hand Mount................ 6 Attaching the LX20+ to the Hand Mount ..........7 Turning the LX20+ On and Off ..............8 Care and Maintenance ................ -
Page 3: Product Description

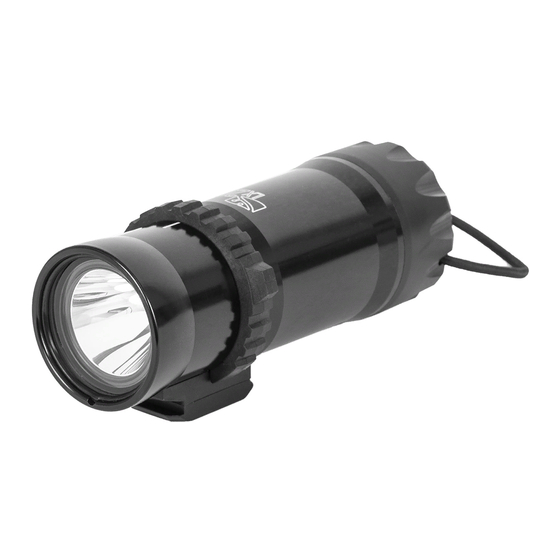

LX20+ Cordless Primary Light www.diverite.com Product Description The LX20+ takes cordless primary lights to the next level. Now 36% brighter and with additional power modes, the LX20+ delivers a maximum of 1500 lumens of 6500 kelvin light in a concentrated 6 degree spot beam. Its compact and robust design makes it an ideal handheld primary light and perfect travel companion. -
Page 4: Tech Specs
LX20+ Cordless Primary Light www.diverite.com Tech Specs LED: Cree XM-L2 U4 driven at 16 watts Light color temperature: 6500 Kelvin Beam angle: 6° spot Light Output and Burn Times: Power Mode Lumen Output Burn Time 100% 1500 lumens 2.25 hours 750 lumens... -
Page 5: Important Warnings
LX20+ Cordless Primary Light www.diverite.com Important WARNINGS Read this manual carefully before diving with the LX20+ Handheld light. • You should fully understand how this dive light works and that you are proficient in its use prior to diving. • The LX20+ Handheld is an electronic device and electronic devices can fail. -
Page 6: Installing The Batteries
LX20+ Cordless Primary Light www.diverite.com Installing the Batteries The LX20+ is powered by four rechargeable lithium-ion batteries. The batteries must be charged and installed in the battery carrier before being inserted in the LX20+. NOTE: Charge the batteries before installing them using the provided charger. Follow the included manufacturer’s instructions to charge the batteries. - Page 7 LX20+ Cordless Primary Light www.diverite.com 5. Make sure the O-rings and O-ring sealing surface on the cap are clean and free of any debris. Screw the cap back on making sure it is tightened snugly. Ensure that the O-rings are not pinched between the cap and the body.
-
Page 8: Adjusting The Hand Mount
LX20+ Cordless Primary Light www.diverite.com Adjusting the Hand Mount The hand mount can be mounted on your left or right hand. It secures to the hand using an elastic strap. The circular opening on the side of the hand mount is for the thumb and helps to keep the light secure and in place on your hand while diving. -
Page 9: Attaching The Lx20+ To The Hand Mount
LX20+ Cordless Primary Light www.diverite.com Attaching the LX20+ to the Hand Mount The LX20+ can be attached to the hand mount with it on or off of your hand. The light mount is spring-loaded to hold the light in place, and makes it easy to attach and remove the light. -
Page 10: Turning The Lx20+ On And Off
LX20+ Cordless Primary Light www.diverite.com Turning the LX20+ On and Off The LX20+ has a rotary magnetic on/off switch that can easily be used underwater with gloves. To Turn the Light On or Off: 1. Rotate the magnetic switch to the right to turn the light on. The white line on the switch must line up with the white line on the light’s body. -
Page 11: Care And Maintenance
• DO NOT TAKE THE LIGHT APART. Arrange with your dealer to return the light to Dive Rite for repair. • Flooding damage cannot be fixed or corrected in the field. Attempting to repair the light in the field voids your warranty. -
Page 12: Travelling With The Lx20
LX20+ Cordless Primary Light www.diverite.com Travelling with the LX20+ When travelling with the LX20+, the battery pack must be installed backwards so that there is no chance of activation. Simply remove the battery pack, turn it around, and put it back in with the contact rings facing towards the back cap. -
Page 13: Warranty Information
City, FL. It is the responsibility of the original purchaser to send in the suspected warranty item along with a completed Return Authorization Form and the original purchase receipt. Once the product is received Dive Rite will evaluate it to determine if a warranty claim is valid.
