  • Page 1 35 Watt LED Lighting System USER MANUAL January 2019 – Rev A...
  • Page 2 This is the user manual for the Dive Rite EX35 Lighting System. This user manual is proprietary and copyright Lamartek, Inc. 2019. It may not be reproduced, changed, or distributed without authorization from Lamartek, Inc. All information contained in this manual has been carefully reviewed and is believed to be accurate, however it is subject to change.

  • Page 3: Table Of Contents

    Adjusting the Hand Mount ................13 Hand Mount QRM Attachment ..............13 Light Operation ..................... 15 Care, Maintenance, & Storage ..............16 Dealing with a Flooded Light ................ 17 Warranty Information .................. 17 January 2019 © Lamartek, Inc. dba Dive Rite...

  • Page 4: Product Description

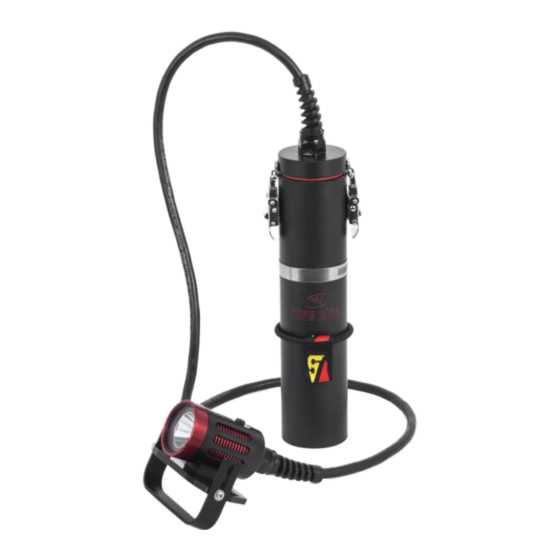

    Product Description Dive Rite's EX35 Primary Canister Light ushers in a new era of power and efficiency for demanding technical dives. Utilizing the latest LED technology, pushbutton control and a high efficiency head design, the EX35 boasts an impressive 4300 lumen output in a sleek and compact package.
  • Page 5 The EX35 also has a strobe mode for when you really need to get someone’s attention.

  • Page 6: Tech Specs

    At 6 hours, the light flashes 3 times to indicate low battery and steps down to 1% power mode to conserve power for up to an additional 16 hours before shutting off.  Strobe Cycle Time: 100ms on / 900ms off January 2019 © Lamartek, Inc. dba Dive Rite...
  • Page 7  Airline approved, UN38.3 tested, 150 Wh Li-Ion expedition canister battery available in straight or 70 degree sidemount lid configurations  Package includes: EX35 light, expedition canister battery with Quick Belt Mount, rigid Goodman handmount with QRM, li-ion smart charger, and protective EVA carrying case ...

  • Page 8: Important Warnings

     Before diving, you should have the proper training from a qualified instructor and obtain certification from a recognized training agency.  DO NOT USE THE EX35 LIGHT OUT OF WATER. Brief operation to check functionality is OK. The light has built in thermal protection circuitry...

  • Page 9: Charging, Maintaining, & Installing The Batteries

    6. Disconnect the battery once it is fully charged. Do not pull on the cord to remove the charging adapter. 7. Unplug the Smart Charger from the wall outlet. January 2019 © Lamartek, Inc. dba Dive Rite...
  • Page 10 1. Check that the red O-ring is installed on the canister lid and that the O- ring is clean and not damaged. There is no need to lubricate this O-ring. Lubrication can attract dirt which prevents proper sealing. January 2019 © Lamartek, Inc. dba Dive Rite...
  • Page 11 3. Close both latches on the side of the battery canister simultaneously to evenly seal the O-ring and lock the lid in place. Pull on each latch to make sure it is locked. January 2019 © Lamartek, Inc. dba Dive Rite...

  • Page 12: Mounting The Canister

    Because you don’t need to be able to reach a switch on the canister, you can mount the canister in any location you desire on your diving system configuration. The EX35 canister comes with the Quick Belt Mount for mounting it to the waist belt of your harness or backplate. Mounting the Canister 1.

  • Page 13: Adjusting The Hand Mount

    Adjusting the Hand Mount The EX35 is supplied with a hard Goodman style hand mount. This hand mount is adjustable and can be used on either your left or right hand. Adjusting the Hand Mount 1. Using a Phillips screwdriver, slightly loosen the screws on either side of the hand mount until the bar slides freely.
  • Page 14 1. Open the locking lever on the front of the QRM receiver to unlock it. 2. Push the light head forward and tip the back end up to rock it out of the QRM receiver. January 2019 © Lamartek, Inc. dba Dive Rite...

  • Page 15: Light Operation

    Light Operation The EX35 has a magnetic pushbutton on/off switch that can easily be operated underwater even with thick gloves. Turning the Light On or Off  Push and hold the button for 1 second to turn the light on. The light always starts on high (100%) power mode.

  • Page 16: Care, Maintenance, & Storage

    Care, Maintenance, and Storage With proper care and service, your EX35 Lighting System can provide you with years of safe, enjoyable use. Without proper care, your EX35 can become damaged and be either unserviceable or dangerous to use.  Prior to taking the light underwater, ensure that all O-rings and latches are secure.

  • Page 17: Dealing With A Flooded Light

     DO NOT TAKE THE LIGHT APART.  Arrange with your dealer to return the light to Dive Rite for repair. Flooding damage cannot be fixed or corrected in the field. Attempting to repair the light in the field voids your warranty.
  • Page 18 City, FL. It is the responsibility of the original purchaser to send in the suspected warranty item along with a completed Return Authorization Form and the original purchase receipt. Once the product is received Dive Rite will evaluate it to determine if a warranty claim is valid.
