Chapter 2. Controls, Indicators, and Connections
2–3 Bottom Panel
The battery compartment and power-cord storage com-
partment are located in the bottom panel of the Test Kit,
as illustrated in Figure 3. Plugging the power cord into a
120 Vac outlet automatically switches the Test Kit from
battery to line operation. The battery compartment
(located under the power-cord storage area) accepts six
"D" cells; these may be zinc oxide, alkaline, or
rechargeable nickel-cadmium batteries. The Test Kit does
not recharge nickel-cadmium batteries when operating on
120 Vac. To replace the batteries, loosen the thumb screws
and remove the battery cover.

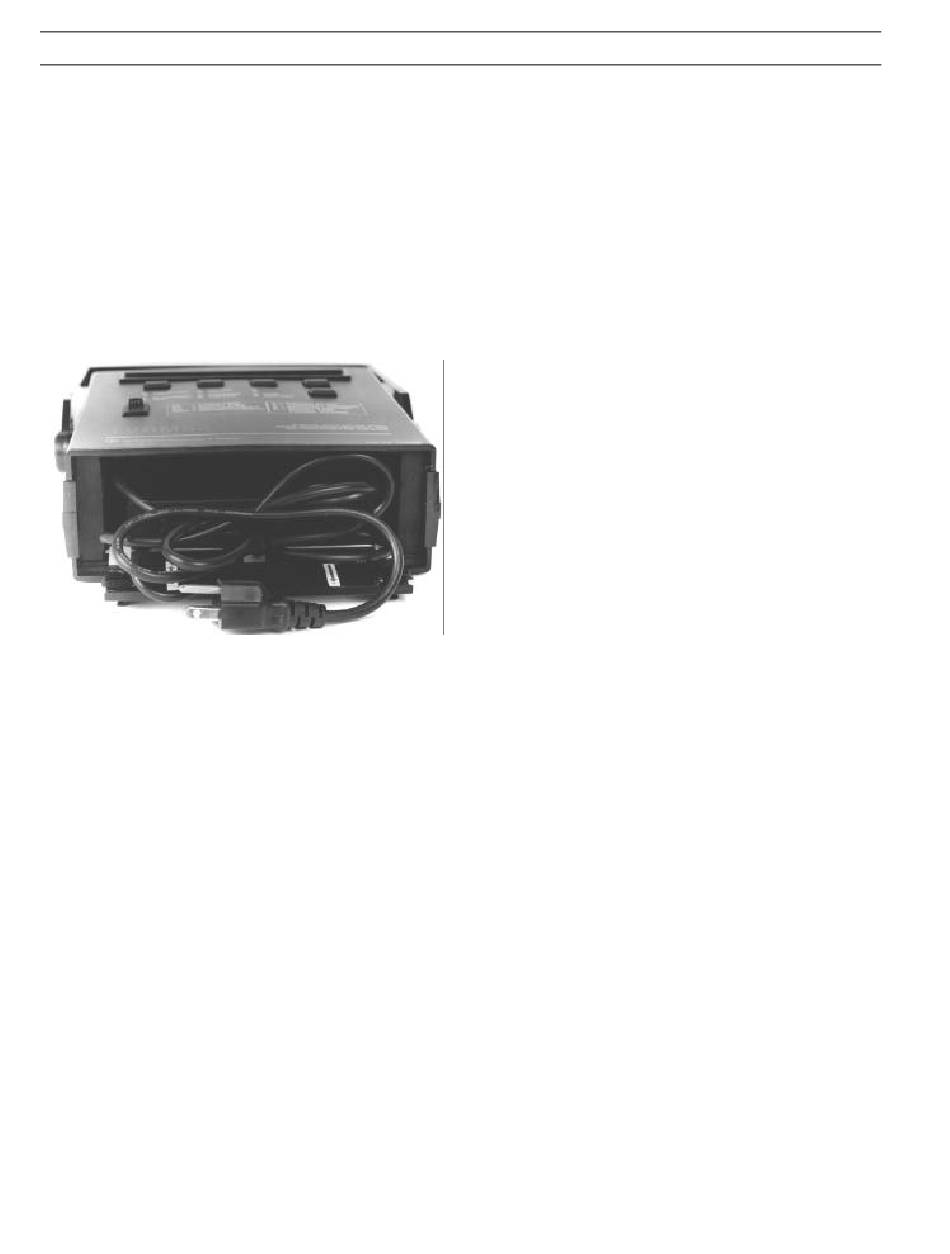

Figure 3. Bottom panel of the Test Kit, showing the 120
Vac power cord and the battery-storage area.
