Summary of Contents for Kannad 406 AF-COMPACT
- Page 1 DOC07089A 0144618A...

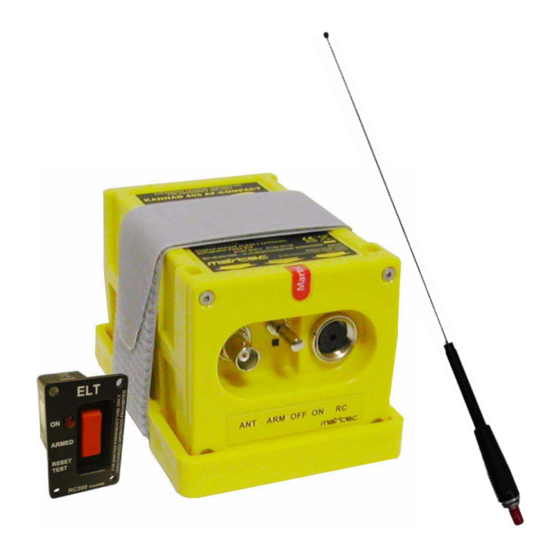

- Page 2 1. CHECK PACK COMPOSITION Check that your KANNAD 406 AF COMPACT Pack is composed of: 1. transmitter; 2. mounting bracket; 3. RC200 remote control panel; 4. DIN-12 connector; 5. SUB D 9 Pts Female connector. Outside antenna (6) is purchased separately.
- Page 3 Determine the lo cation of the ELT on board according to FAR/RTCA recommendations. 1. Fixed wings Mount the KANNAD 406-AF COMPACT with the arrow of the "Flight direction" label pointed towards the front of the aircraft. 2. Helicopters Mount the KANNAD 406 AF COMPACT: - with the front face connectors pointing downwards at a 45°...
-
Page 4: Install Bracket
(not supplied) should be installed as shown figure hereunder. 3. Fix the bracket with the 4 screws, 8 washers and 4 nylstop nuts supplied. IMPORTANT: tighten to a torque between 4 and 5 Newton x meter. PAGE 4 QUICK INSTALLATION GUIDE KANNAD 406 AF-COMPACT... - Page 5 2. Slide the self-stripping strap throught the buckle. Ensure the buckle is correctly positioned (indifferently on righ or left side of ELT) regarding the horizontal center line of ELT as shown Detail A. 3. Fasten the self-stripping strap tightly. PAGE 5 QUICK INSTALLATION GUIDE KANNAD 406 AF-COMPACT...
-
Page 6: Install Antenna
1 dB must be used. • Fit both ends of coaxial cable with a waterproof Male BNC connector (not supplied), reference RADIALL R141007. • Connect one Male BNC connector to the antenna Female BNC socket. PAGE 6 QUICK INSTALLATION GUIDE KANNAD 406 AF-COMPACT... - Page 7 - Secure the mounting tray (3) to the instrument panel (4). - Secure the RC200 (5) to the mounting tray (3) with the 2 screws (6) supplied (torque 0.8 Nm). INSTRUMENT PANEL PAGE 7 QUICK INSTALLATION GUIDE KANNAD 406 AF-COMPACT...
- Page 8 3. 406 & 121.5 MHz transmission tests (optional): Refer to § C. 406 and 121.5 MHz transmission test, page 303 of installation manual. 4. At the end of this procedure, switch the ELT to ARM. PAGE 8 QUICK INSTALLATION GUIDE KANNAD 406 AF-COMPACT...
