IntrOdUCtIOn
This VGA extender includes a transmitter and a receiver unit. It can extend VGA signal up to 120
meters over single network cable, and the supported resolution is up to 1920x1080p@60Hz.

PACkAGE COntEntS

• VGA EXTENDER TX x 1pc
• VGA EXTENDER RX x 1pc
• Power supply DC5V / 2A x 2pcs
• 3.5mm audio cable x 2pc
• User's manual x 1pc
Note: above accessories are contented in the regular package for the kit with transmitter and receiver.
If buy VGA Extender TX or VGA Extender RX separately, the package contents would be different.

InStALLAtIOn rEQUIrEMEntS

1. Source device with VGA output port (computer graphics card, DVD, PS3, HD monitoring
equipment, etc..)
2. Display device with VGA input port
3. UTP/STP Cat5e/6 networking cables, which following the standard of EIA-568B

PAnEL dESCrIPtIOn

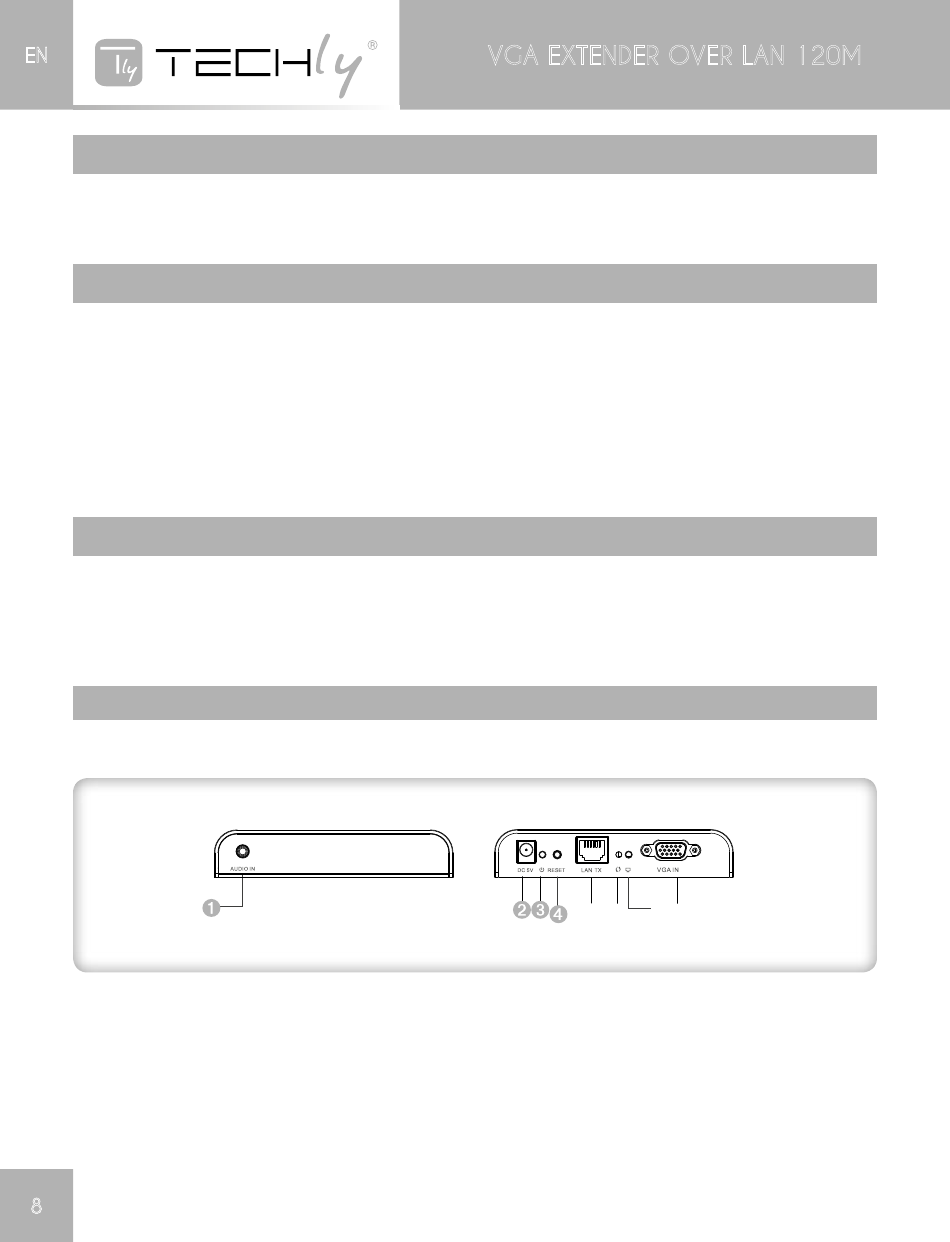

VGA EXTENDER TX (Sender)
Audio input
➊
Power input (DC5V)
➋
Power light
➌
Reset button
➍
LAN signal output (RJ45)
➎
Data transmission light
➏
Connection light
➐
VGA input
➑
8
