EBA00011
NOTE:
_
Check the following items again after setup and predelivery service have been completed.
A: INSTALLATION OF THE PARTS INCLUDED IN THE CRATE
Ã
Front shock absorbers
Ã
Rear shock absorber
Ã
Front wheels
Ã
Rear wheels
Ã
Handlebar
Ã
Front brake master cylinder
Ã
Cable ties (handlebar)
Ã
Handlebar cover
Ã
Fender stay
Ã
Front bumper
Ã
Front panel
B:TIGHTENING TORQUE OF EACH PART
Ã
Front shock absorber and frame
Ã
Front shock absorber and front lower arm
Ã
Front wheel and front wheel hub
Ã
Rear axle and rear wheel hub
Ã
Steering stem and handlebar holder
Ã
Front brake master cylinder and bracket
Ã
Front fender stay and frame
Ã
Front bumper and frame
Ã
Rear bumper and frame
Ã
Rear bumper and tail/brake light bracket
Ã
Tail/brake light lens unit and tail/brake light bracket 7 Nm (0.7 m · kg, 5.1 ft · lb)
Ã
Rear protector and swingarm
Ã
Footrest and footboard
Ã
Footboard and frame
Ã
Rear fender stay and foot protector
Ã
Foot protector and rear fender
C: ROUTING OF WIRE, CABLES, ETC.
Ã
Front brake hose
Ã
Handlebar switch lead
Ã
Parking brake switch lead
Ã
Front brake light switch lead
Ã
Throttle switch lead

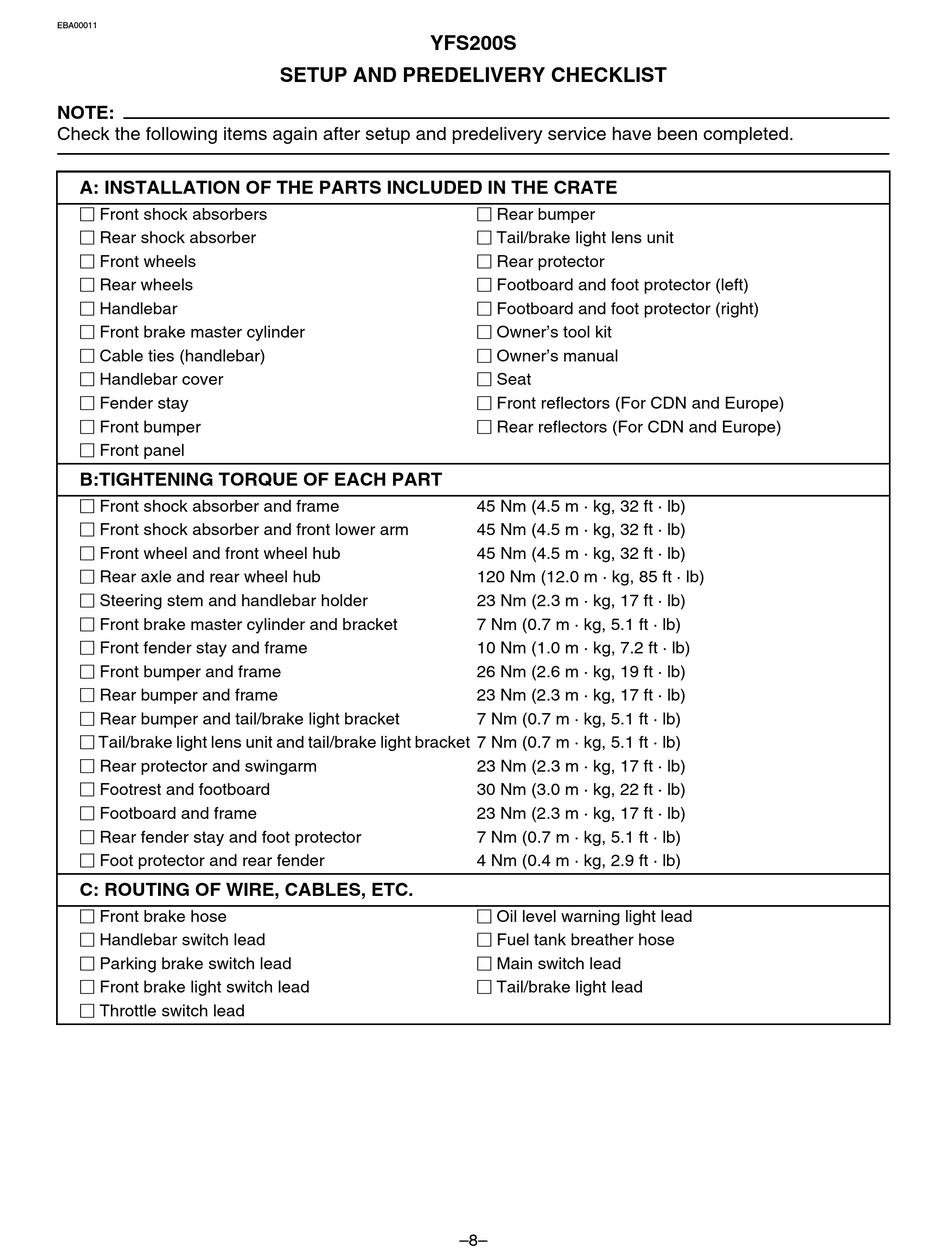

YFS200S
SETUP AND PREDELIVERY CHECKLIST
Ã
Rear bumper
Ã
Tail/brake light lens unit
Ã
Rear protector
Ã
Footboard and foot protector (left)
Ã
Footboard and foot protector (right)
Ã
Owner's tool kit
Ã
Owner's manual
Ã
Seat
Ã
Front reflectors (For CDN and Europe)
Ã
Rear reflectors (For CDN and Europe)
45 Nm (4.5 m · kg, 32 ft · lb)
45 Nm (4.5 m · kg, 32 ft · lb)
45 Nm (4.5 m · kg, 32 ft · lb)
120 Nm (12.0 m · kg, 85 ft · lb)
23 Nm (2.3 m · kg, 17 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
10 Nm (1.0 m · kg, 7.2 ft · lb)
26 Nm (2.6 m · kg, 19 ft · lb)
23 Nm (2.3 m · kg, 17 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
23 Nm (2.3 m · kg, 17 ft · lb)
30 Nm (3.0 m · kg, 22 ft · lb)
23 Nm (2.3 m · kg, 17 ft · lb)
7 Nm (0.7 m · kg, 5.1 ft · lb)
4 Nm (0.4 m · kg, 2.9 ft · lb)
Ã
Oil level warning light lead
Ã
Fuel tank breather hose
Ã
Main switch lead
Ã
Tail/brake light lead
–8–
