Kohler ARTIFACTS 72762T-9M Manual

SERVICE PARTS

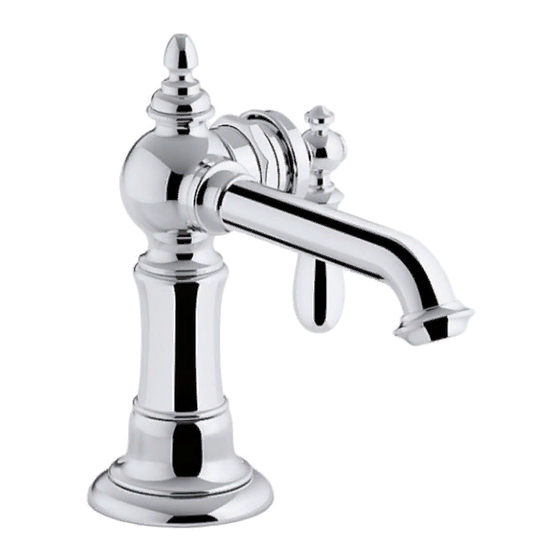

72762T-9M Single-handle Bathroom Sink Faucet
1006815
38820
1192902**
1271187
1271397
52202
78150
1146748
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1271109-2A-A
ARTIFACTS
1233282
1181649**
38676
1272333**
1244853**
1102890**
1102891
1102892
1142103**
1228834
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
1194613
Please leave these instructions for the consumer. They contain important information.
1192910**
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
3. Observe local plumbing codes.
4. If possible, install this faucet before installing the lavatory.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, counter-clockwise for cold water.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
4 1271109-2A-A
72762T-9M Single-handle Bathroom Sink Faucet
144
Ø68
ARTIFACTS
52
Ø69
Ø60
Ø41.2
Ø31.75
1
