Kohler Margaux 72627T Installation Instructions

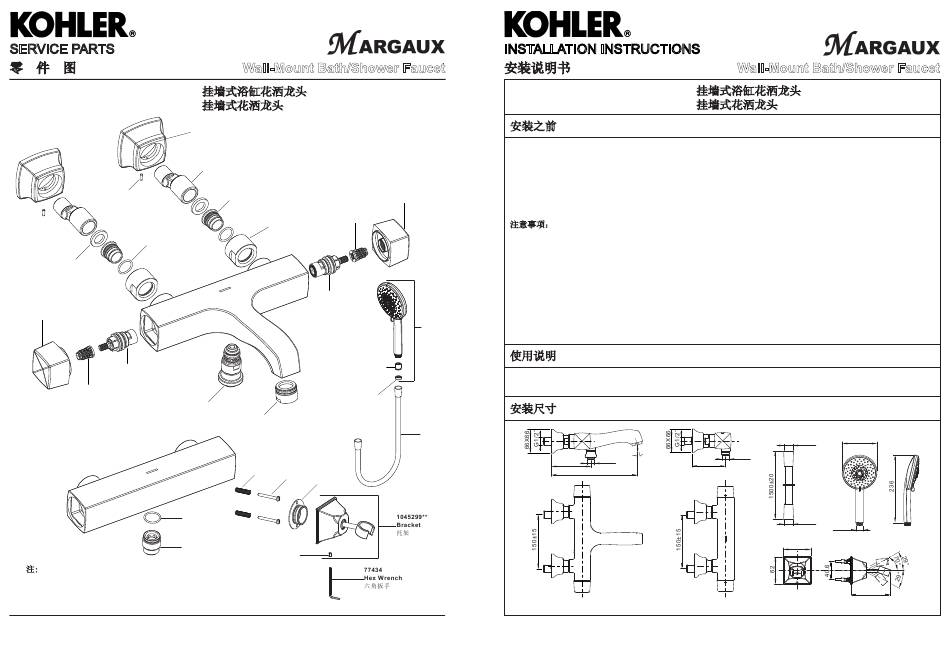

SERVICE PARTS
零 件 图
72627T
72628T
1130588
Screw
螺钉
870992
O-Ring
O型圈
1218659
Washer
垫片
1199511**
Left Handle
左把手
3005765
Valve
流量阀
871241
Spline Adapter
齿套
●
870721
O-Ring
O型圈
●
864922**
Bush
出水口接头
注：1.描述中有"
"的零件仅用于72627T
▲
2.描述中有"
"的零件仅用于72628T
●
**订购时请说明颜色编号
**Color code must be specified when ordering
1115111-2-G
Wall-Mount Bath/Shower Faucet
挂墙式浴缸花洒龙头
挂墙式花洒龙头
1112788**
Escutcheon
装饰罩
1170944**
Connection
接头
864471
Seat
871241
底座
Spline Adapter
865225**
齿套
Coupling Nut
连接螺母
3007072
Valve
流量阀
1240266
Check Valve
单向阀
1218903
Restrictor
限流器
▲3008851**
Diverter Assy
▲1043143**
切换器组件
Aerator
起泡器
1120988
1119427
Anchor
1032149**
Screw
胀塞
Support
螺钉
托架底座
56283
Screw
螺钉
玛尔戈
Installation INSTRUCTIONS
安装说明书
安装之前
所有的资料是按最新出版的产品资料编写而成。科
勒公司保留任何时候不经通知即可改变产品特性、
包装或产品可供类型的权利。
1199510**
Right Handle
说明书包括重要的安装、保养及清洁方面的内容，
右把手
请把这些资料交给用户阅读。
注意事项：
1.一定要先彻底冲洗供水管以清除管道中的杂质。
2.切换器正常工作的最小压力为0.05MPa(0.5bar)。
3.花洒最高工作压力：0.5MPa(5bar)。水压超过
0.5MPa(5bar)须安装减压阀。花洒最高工作温度及
环境温度：60°C。请特别注意花洒同花洒连接的臂
管须远离浴霸，否则可能损坏花洒及其密封件，甚
至对使用者造成伤害。
1202351**
Handspray
花洒
使用说明
逆时针旋转左把手为关，顺时针旋转右把手为关。
安装尺寸
1248781**
Hose
软管
4 1115111-2-G
Wall-Mount Bath/Shower Faucet
72627T
挂墙式浴缸花洒龙头
72628T
挂墙式花洒龙头

BEFORE YOU BEGIN

All information is based on the latest product
information available at the time of publication.
Kohler Co. reserves the right to make changes in
product characteristics, packaging, or availability at
any time without notice.
Please leave these instructions for the consumer.
They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove
debris.
2. The minimum inlet water pressure for the diverter is
0.05MPa(0.5bar).
3. The highest working pressure for handspray is
0.5MPa(5bar). If it exceeds 0.5MPa(5bar), a
pressure reducer is needed. The highest water and
environment temperature is 60°C. Please keep
handspray, showerhead and the shower arm away
from heater, or it may become damaged and cause
injury to the user.

HANDLE OPERATION

Left handle closes with turning anticlockwise, right
handle close with turning clockwise.

ROUGH-IN DIMENSIONS

14°
G1/2˝
G1/2˝
92.5
109
237
72627T 72628T
玛尔戈
122
G1/2˝
G1/2˝
G1/2˝
62
89
