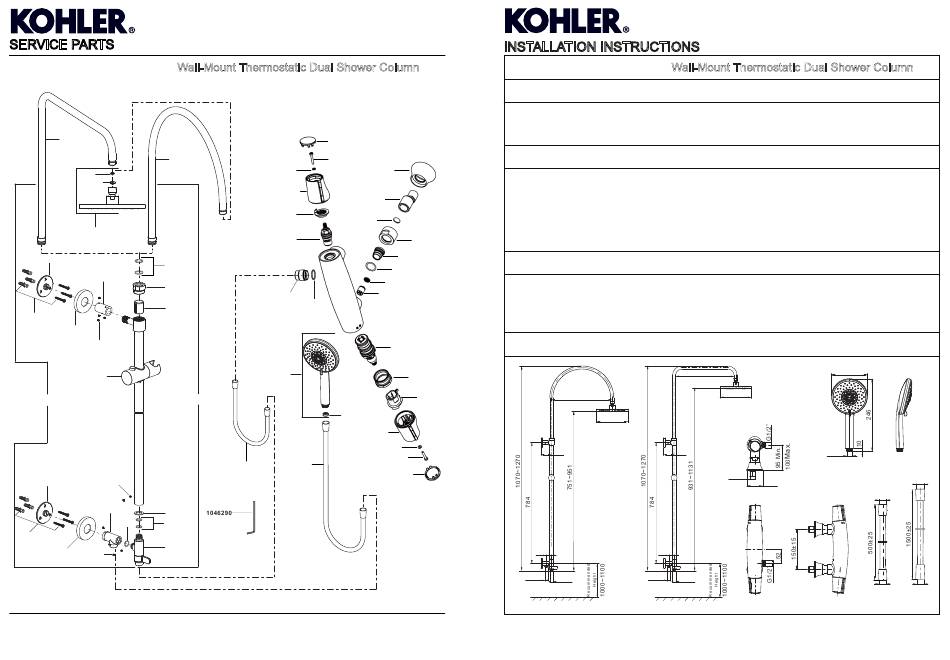

SERVICE PARTS
72638T-B7 72639T-B7 Wall-Mount Thermostatic Dual Shower Column
1121294**
1121282**
77420
1030624
1122927**
1196610
870992
1196622**
1196609**
1121285
1061576
1196621**
832751
1109471**
72639T-B7: 1196627** 72638T-B7: 1222095**
1196610 832751
1196607**
1196628
870921
870921
1061576
1183267**
1196621**
832751
**Color code must be specified when ordering
1240261-2A-A
SYMBOL
871612**
837192
832940 865224**
898779**
1170944**
871585
1218659
833405
865225**
864471
870992
836586
831752
864922**
870721
835239
1065970**
865150
1030624
898778**
832940
837192
1072938**
1154793**
871612**
INSTALLATION INSTRUCTIONS
72638T-B7

BEFORE YOU BEGIN

All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right to
make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.

OPERATION CONDITION

1. Minimum supply pressures: 0.05MPa(0.5bar).
2. Recommended supply static pressures: 0.3MPa(3bar)
on hot and cold water.
3. Supply pressure greater than 0.5MPa(5bar): install a
pressure reducer.
4. Hot water temperatures, minimum: 50ºC, maximum:80ºC.
5. Recommended hot water temperature: 65ºC(energy-saving).

HANDLE OPERATION

1. Turn the diverter handle of the column counter-clockwise, handspray works; turn it clockwise, showerhead works.
2. The temperature is set by slowly turning the temperature selector(right-hand handle). For safety reasons, there is a stop that
limits temperature to 40ºC. To get a higher temperature, push the button and continue turning the temperature selector.
3. Water flow is set by turning the left-hand handle. There is also a water-saving stop. To obtain a higher flow rate, push the
button and continue turning it.

ROUGH-IN DIMENSIONS

400
871584
68
34
G1/2˝
G1/2˝
72638T-B7
4 1240261-2A-A
72639T-B7 Wall-Mount Thermostatic Dual Shower Column
6. Setting range, approximately: 20ºC to 50ºC.
7. Safety stop at: 40ºC.
8. Pressure difference between hot and cold supply: 0.2MPa
(2bar) maximum.
9. The highest water and environment temperature is 60ºC.
Please keep handspray, showerhead and the shower arm
away from heater, or it may become damaged and cause
injury to the user.
400
Ø203
Ø203
68
G1/2˝
Ø59
34
G1/2˝
G1/2˝
Finished Floor
72639T-B7
SYMBOL
Ø122
G1/2˝
G1/2˝
G1/2˝
G1/2˝
G1/2˝
