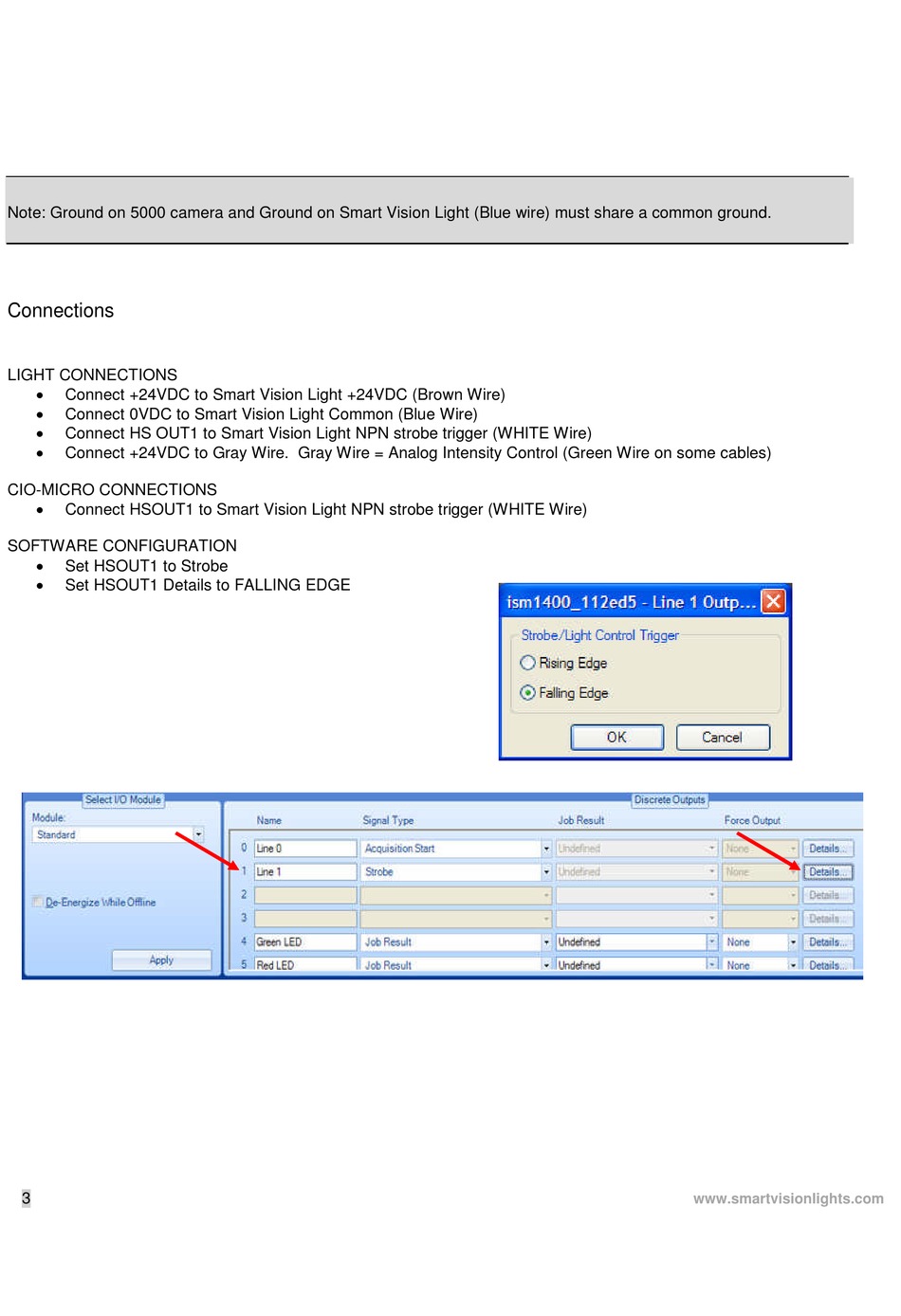

Note: Ground on 5000 camera and Ground on Smart Vision Light (Blue wire) must share a common ground.

Connections

LIGHT CONNECTIONS


Connect +24VDC to Smart Vision Light +24VDC (Brown Wire)

Connect 0VDC to Smart Vision Light Common (Blue Wire)

Connect HS OUT1 to Smart Vision Light NPN strobe trigger (WHITE Wire)

Connect +24VDC to Gray Wire. Gray Wire = Analog Intensity Control (Green Wire on some cables)

CIO-MICRO CONNECTIONS


Connect HSOUT1 to Smart Vision Light NPN strobe trigger (WHITE Wire)

SOFTWARE CONFIGURATION


Set HSOUT1 to Strobe

Set HSOUT1 Details to FALLING EDGE
