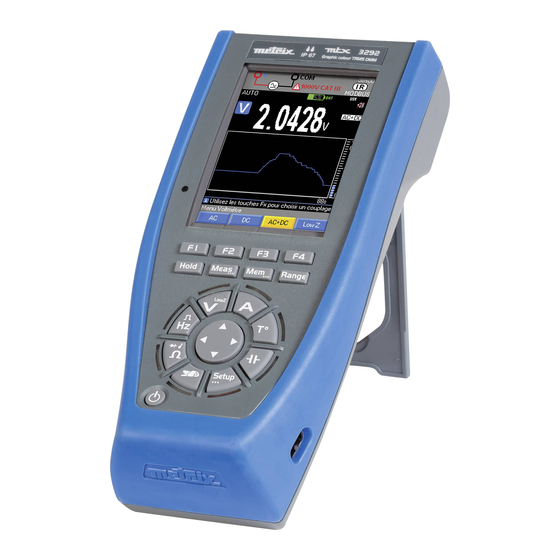

Metrix MTX 3292 Quick Start Manual

MTX 3292/MTX 3293,
Portable Digital Multimeter -
100,000 cts
X04002A02 - Ed. 1 - 07/14
The full user's manual is available on the CD supplied with the
instrument. Download is possible from our support site:
www.chauvin-arnoux.com.
This multimeter complies with the EN 61010-1 safety standard on double
insulation for electronic measuring instruments.
IP 67 as per standard IEC 60529.
Symbols used on the instrument:
Warning: Risk of danger.
Refer to the user's manual to find out about the
potential dangers and any action to be taken in order to
avoid them.
Earth Double insulated
If you use this instrument in a way which is not specified, the protection
provided may be compromised, thus endangering you.
The safety of any system including this instrument is the responsibility of the
assembler of the system.
This instrument has been designed for use indoors:
- in an environment with pollution level 2,
- at an altitude of less than 2000 m,
- at a temperature between 0°C and 50°C,
- with relative humidity < 80 % up to 35°C.
It can be used for measurements on the circuits of:
- Category III installations for voltages up to 1,000 V (AC or DC)
relative to earth.
- Category IV installations for voltages up to 600 V (AC or DC)
relative to earth.
- CAT III: Measurement category III corresponds to measurements
carried out on installations in buildings.
Example: measurements on switchboards, wiring, etc.
- CAT IV: Measurement category IV corresponds to the measurements
carried out on the source of low-voltage installations.
Example: meters and measurements on the safety devices protecting
against overcurrents, etc.
For safety reasons, only use suitable cords supplied with the instrument:
they comply with the EN 61010-031 standard. Before each use, make
sure that they are in perfect condition.
When the instrument is connected to the measuring circuits, never touch a
terminal which is not in use. Use only suitable accessories delivered with
the instrument or approved by the manufacturer.
If the measurement category of the accessory is different from that
of the instrument, the lowest category applies to the unit.
6, avenue du Pré de Challes
F-74940 ANNECY-LE-VIEUX
Tél. +33 (0)4.50.64.22.22
Frequency: Hz
V input
2. Select Range ± ,
frequency range
and
< 200 kHz or
> 200 kHz
by the keys
.
3. Select Meas..., then MEAS+ to select a secondary
function among: MATH, DCY, PER, PW+/-, CNT+/- or:
REL relative measurement
SURV for time-stamped MIN/MAX/AVG
SPEC to obtain the specifications.
ASYC IV
Display
Power supply
Counts
Communication
We thank you for your confidence in the quality of our products.
• Fuse and batteries or rechargeable batteries:
Fuse: 11 A: 10 x 38 - 1000 V
F - breaking capacity: > 18 kA
4 batteries: 1,5 V AA LR6 or batteries 1,2 V Ni-IMH LSD
• Terminal block: with 3 4-m banana inputs and an optical
• Display of the connection on the screen:
Resistance: Ω, Diode, Continuity
COM input
1. Activate Hz.
1. Activate Ω by pressing this key:
2. Select Meas..., then MEAS+ for the MATH
secondary function, or:
MTX 3292
Graphic color (70 x 52)
4 R6 batteries (AA format)
or rechargeable batteries
100 000
IR / USB (Bluetooth, optional)
connector for USB communication:
V input COM input
F2 accesses
(continuity),
F3 accesses 100 Ohm range
F4 selects the diodes
(4V or 26V diode test)
o r subsequent presses
REL relative measurement
SURV for time-stamped MIN/MAX/AVG
SPEC to obtain the specifications.
Voltage: V , V
AC
MTX 3293
1. Activate "V", then
press F1, F2, F3, F4
to select the coupling:
AC,
DC,
AC+DC or
V
lowZ.
Configuration SETUP
MEASURE to adjust the
parameters: filters,
impedance, reference...
2. Graphic mode (default),
but select:
Meas... for another display
MEAS+ to select a
secondary function
REL relative measurement
SURV for MIN/MAX/AVG
(time-stamped)
SPEC to get the specs
3. Select Mem... to save or stop a sequence (10 max. and
6,500 measurements)
Consult data by long press on Mem
Graphic display of Mem... in VAC+DC mode:
Capacitance: F
V input
1. Activate C by pressing this key.
Pressing:
F1 accesses Range+
F2 accesses Range-
Select ranges by those keys
2. Select Meas..., then:
REL relative measurement
SURV for time-stamped MIN/MAX/AVG
SPEC to obtain the specifications.
, V
DC AC+DC
V input COM input
...
Trace
Zoom
Cursor
COM input
RUN is displayed
when the
measurement is
running and
OL is displayed if
the value is >
range or if there
is a short-circuit.
.
