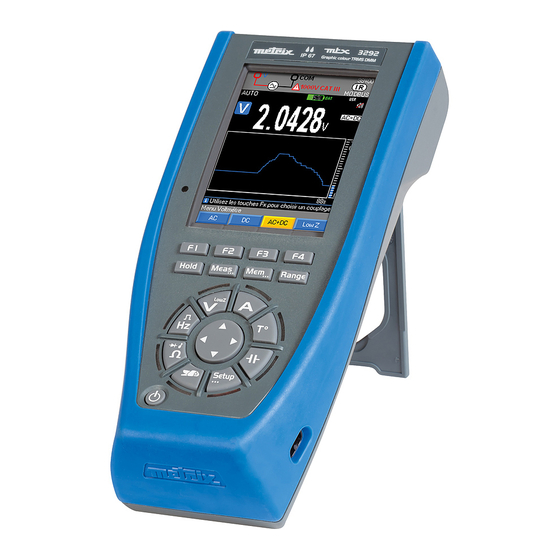

Metrix ASYC IV MTX 3292 Remote Programming Manual

Portable colour graphic multimeters, 100,000 cts
Hide thumbs Also See for ASYC IV MTX 3292:

Advertisement

Quick Links

Download this manual See also: User Manual
Portable colour
graphic multimeters
ASYC IV
100,000 cts
MTX 3292 - MTX 3293
Remote programming
Pôle Test et Mesure CHAUVIN-ARNOUX

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASYC IV MTX 3292 and is the answer not in the manual?

Questions and answers

Related Manuals for Metrix ASYC IV MTX 3292

Summary of Contents for Metrix ASYC IV MTX 3292

  • Page 1 Portable colour graphic multimeters ASYC IV 100,000 cts MTX 3292 - MTX 3293 Remote programming Pôle Test et Mesure CHAUVIN-ARNOUX...

  • Page 2: Remote Programming

    Remote programming Remote programming The multimeter can be remotely programmed using a computer or PC Connection of with the programming kit. USB cable 1. Connect the USB cable at the rear panel to the USB input. 2. Connect the USB connector to one of the « USB » entries of the PC. interface plug cable...
  • Page 3 Remote programming Command syntax Common Mnemonic code Terminator commands Specific commands Short keyword Digital Parameter Terminator suffix Long keyword The brackets ([ ]) are used to frame a keyword which is optional during Keywords programming; i.e. the instrument will execute the command whether the keyword is optional or not.
  • Page 4 Remote programming Programming Convention The command tree diagram includes all the commands specific to the Tree structure instrument. Common commands (standard IEEE 488.2) are listed separately, since they do not affect the position of the syntax analyzer in the tree. When the terminator <NL>...
  • Page 5 Remote programming Multimeter specific commands Directory Command Function CALCulate :AVERage:AVERage? reads the last average value stored in monitoring mode. :AVERage:CLEar resets the minimum and maximum average values memorized in monitoring mode. :AVERage:DATE:MAX? reads the date and time when the maximum has been stored in monitoring mode.
  • Page 6 Remote programming Multimeter specific DATA commands :CATalog? reads the list of stored measurement (cont’d) campaigns. :[DATA]:VALue? reads the values stored in a measurement campaign. :DELete:ALL erases all stored measurement campaigns. :DELete[:NAME] clears a stored measurement campaign. :POINts[?] reads or sets the size of the buffer memory of the device.
  • Page 7 Remote programming [SENSe:] Multimeter specific CLAMP:CAMP1Ratio[?] reads or sets the numerator of the ratio commands used in measuring amps on the clamp (cont’d) function. CLAMP:CAMP2Ratio[?] reads or sets the denominator of the coefficient used in measuring amps on the clamp function. CLAMP:CUNit[?] reads or sets the unit displayed in clamp measurement.
  • Page 8 Remote programming Detailed description IEEE 488.2 common commands of commands (Command) *CLS (Clear Status) The *CLS command resets the event registries in all registry groups. It also resets the error queue. Command syntax : *CLS (Command/Query) *ESE[?] (Standard Event To the query *ESE?, the instrument returns the event validation registry Status Enable) value.
  • Page 9 Remote programming *OPC[?] (Command/Query) To the *OPC? question, the instrument returns the value 1 once all pending (Operation complete) commands have been executed. Query syntax : *OPC? Response format : <1><T> The *OPC command places the message « Operation complete » (bit 0) in the standard event registry at the end of the running operation.
  • Page 10 Remote programming Detailed description of Commands specific to the instrument commands CALCulate commands :AVERage:AVERage? (Query) To the question CALC:AVER:AVER?, the instrument returns the average value last memorized in SURV mode. Response format : 005.26 mV :AVERage:CLEar (Command) The command CALC:AVER:CLE resets the minimum and maximum average values memorized in surveillance mode (the surveillance mode has to be activated).
  • Page 11 Remote programming FUNCtion[?] (Command/Query) The command CALC:FUNC <function> sets the function of the secondary display. To the question CALC:FUNC?, the instrument returns the function of the secondary display. The authorized values of the parameter function <function> depend on the selected main measurement. They can be identified using the command CALC:FUNC:LIST? FUNCtion:LIST? (Query)
  • Page 12 Remote programming REFerence:Status[?] (Command/Query) The command CALC:REF:STAT <0|1|OFF|ON>, activates or de-activates the relative mode. The values are 0 or OFF to de-activate and 1 or ON to de-activate. To the question CALC:REF:STAT?, the instrument returns the activation status of the relative mode. SPEC:DIGITs? (Query) To the question CALC:SPEC:DIGIT?, the instrument returns the...
  • Page 13 Remote programming Commands DATA CATalog? (Query) To the question DATA:CAT?, the instrument returns the list of the memorized measurement campaigns. [DATA:]VALue? (Query) To the question DATA:VAL? <campaign>, the instrument returns the values memorized in a measurement campaign. The parameter <campaign> is a mnemonic representing the name of the measurement campaign.
  • Page 14 Remote programming Commands DISPlay LUMInosity (Command/Query) The command DISP:LUMI <luminosity> selects the brightness of the LCD display. To the question DISP:LUMI?, the instrument returns the brightness of the LCD. The parameter <luminosity> is a mnemonic code among following : ECO2, ECO, NORM, MAX.
  • Page 15 Remote programming Command READ? (Query) To the question READ?, the instrument returns the result of the running measurement. Response format : +276.91 mVAC Commands [SENSe:] CLAMP:CAMP1Ratio[?] (Command/Query) The command CLAMP:CAMP1 <numerator> selects the numerator of the ratio used in amp measurement in the clamp function. To the question CLAMP:CAMP1?, the instrument returns the ratio numerator used in amp measurement in the clamp function.

  • Page 16: Frequency:mode

    Remote programming CLAMP:MEASure[?] (Command/Query) The command CLAMP:MEAS <measure> selects the measure used by the clamp function. To the question CLAMP:MEAS?, the instrument returns the mesure used by the clamp function. The parameter <measure> is a chain of characters which is either "VOLTAGE", or "CURRENT".
  • Page 17 Remote programming HOLD:Status[?] (Command/Query) The command HOLD:STAT <OFF|ON|AUTO>, sets the HOLD mode of the instrument. To the question HOLD:STAT?, the instrument returns the HOLD mode status. MENU:DBM:IMPedance[?] (Command/Query) The command MENU:DBM:IMP <impedance>, sets the calculation impedance of the dBm measurement. To the question MENU:DBM:IMP?, the instrument returns the value of the selected calculation impedance for the dBm measurement.
  • Page 18 Remote programming SECondary[?] (Command/Query) The command SEC <group> selects the group of secondary measurement. ATTENTION: All groups of secondary measurements are not valid for each primary measure. If the selected group is not valid for the running main measurement, an error "-221, Settings conflict" is generated. To the question SEC?, the instrument returns the group number of secondary measurement displayed.
  • Page 19 Remote programming Commands SYSTem BEEPer:Status[?] (Command/Query) The command SYST:BEEP:STAT <0|1|OFF|ON>, activate or de- activate the beeper of the instrument. The values are 0 or OFF to de-activate and 1 or ON to activate. To the question SYST:BEEP:STAT?, the instrument returns the activation status of the beeper.
  • Page 20 Remote programming ERRor[:NEXT]? (Query) To the SYST:ERR? question, the instrument returns the error number positioned at the top of the queue. The queue may have up to 10 numbers and it is managed according to the principle of first in, first out. As the SYST:ERR? questions progress, the multimeter returns the error numbers in the order of their arrival, until the queue is empty.
  • Page 21 Remote programming LANGuage[?] (Command/Query) The command SYST:LANG <ENG|FRE>, selects the menu language. To the question SYST:LANG?, the instrument returns the language of the used menu. LOCal (Command) The command SYST:LOC, sets the instrument in local mode. Recall: the instrument switches to REMOTE mode when it receives a SCPI command other than SYST:LOC.
  • Page 22 09 - 2014 X04146A02 - Ed. 02 DEUTSCHLAND - Chauvin Arnoux GmbH Straßburger Str. 34 - 77694 Kehl / Rhein Tel.: (07851) 99 26-0 - Fax: (07851) 99 26-60 ESPAÑA - Chauvin Arnoux Ibérica S.A C/ Roger de Flor N° 293, Planta 1- 08025 Barcelona Tel.: 902 20 22 26 - Fax: 934 591 443 ITALIA - Amra SpA Via Sant’Ambrogio, 23/25 - 20846 Macherio (MB)
