- Page 1 WX802 Outdoor series User & Installation Manual www.audac.eu...

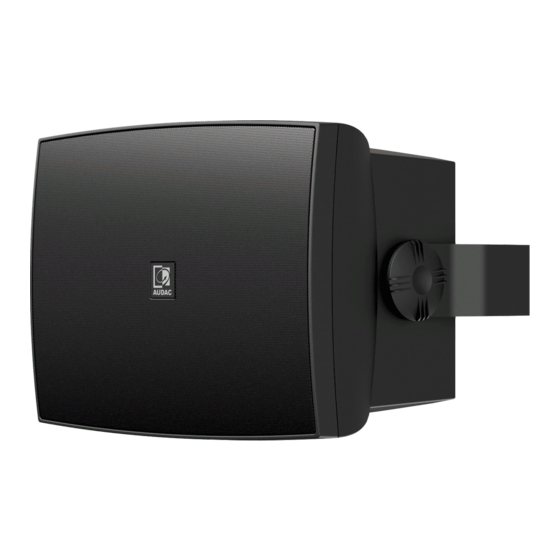

- Page 3 Introduction Universal wall speaker The WXMK2/O are powerful 2-way performance speakers, which are especially designed for outdoor use, ensuring true-to-nature, high fidelity reproduction of music and speech in every environement, ranging from modern residential applications to the most demanding outdoor applications in parks, stadiums, hotels and even clubs. It features a stunningly designed and elegant looking ABS housing which is fitted with high quality components.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS • ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER. •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
- Page 6 Installing the WX802MK2/O Step 1: Mount the loudspeaker The loudspeaker can be mounted both horizontally and vertically by means of the sup- plied mounting bracket. For mounting the loudspeaker on the desired mounting location, the mounting bracket should be removed from the loudspeaker. This can be done by loosening the thumbscrews on either side of the loudspeaker.
- Page 7 ATTENTION To make sure that no rain or other liquids can enter the loudspeaker when mounted outside, a special construction is provided at the inner side of the bass port. This construction is only functional when the loudspeaker is mounted in the correct position. The loudspeaker must be mounted according to the woofer orientation as shown below.
- Page 8 When the loudspeaker is connected to 70.7V facilities, the power indicated in the image on the previous page will be reduced to half the power, and when connected to 50V facilities, the power will be reduced to a quarter. Step 3: Make the connections After connecting the AWX5™...
-
Page 9: Additional Information
Additional information Technical specifications RMS Power 70 W Nominal Impedance 16 Ohm Line transformer power tappings 167 Ohm / 60 W 333 Ohm / 30 W 667 Ohm / 15 W Sound pressure level 1W / 1m 89 dB Sound pressure max W / 1 m @ 8 Ohm 108 dB Sound pressure max W / 1 m @ 100V 106 dB... - Page 10 Notes...
- Page 11 Notes...
- Page 12 Notes...
