- Page 1 AutoCross-Laser 7C PowerBright Bedienungsanleitung 9-14 Operating instructions 15-20 Gebruiksaanwijzing 3H 4V 1D 21-26 Betjeningsvejledning 27-32 Mode d´emploi 33-38 Instrucciones para su uso 39-44 Istruzioni d‘uso 45-50 Instrukcja Obsługi 51-56 Käyttöohje 57-62 Instruções de uso...
- Page 2 AutoCross-Laser 7C PowerBright Optional: max. 50 m range...
-
Page 3: General Safety Instructions

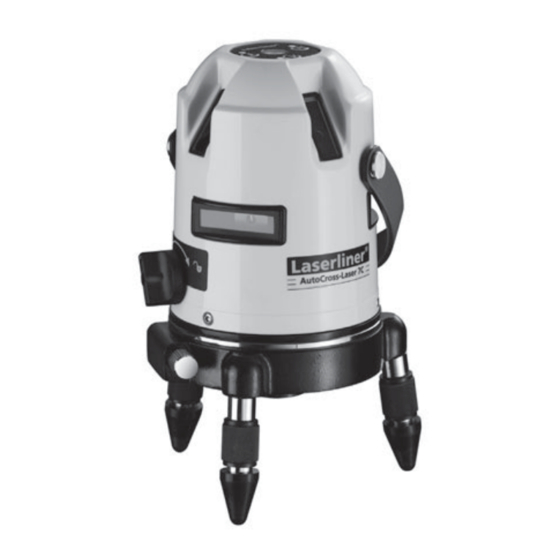

Any tampering by unauthorised persons will render this warranty void. In the event that you need to claim warranty, please take the complete device together with all information and the invoice to one of our dealers or send it in to Umarex-Laserliner. ENGLISH... - Page 4 AutoCross-Laser 7C PowerBright Windows for line lasers ON / OFF switch Transport securing device Knob for precision adjustment 5/8” thread (underside) Window for plumb laser (underside) Adjustable feet with removable rubber caps Tripod adapter Round vial for rough adjustment / low battery charge (low bat.
- Page 5 AutoCross-Laser 7C PowerBright A Power indicator B Switch accuracy short range / long range C LED for accuracy green / red D ON / OFF switch E Sound ON / OFF F Receiver field for laser beam G LED’s for Laserindication (front,...
- Page 6 AutoCross-Laser 7C PowerBright Optional: Working with the laser receiver RX 51: For levelling over longer distances or in conditions of bright light, use the laser receiver RX 51. Switch on with button D; control lamp A will light up. IMPORTANT: Set the ACL 7C to hand receiver mode (button 10).
- Page 7 AutoCross-Laser 7C PowerBright Note: Regularly check the calibration before use, after transport and after extended periods of storage. Technical data Self-levelling range + 3° Precision + 2 mm / 10 m Optional: Working range with laser receiver max. 50 m...
- Page 8 AutoCross-Laser 7C PowerBright Preparing the calibration check: It is possible for you to check the calibration of the laser. To do this, position the device midway between 2 walls, which must be at least 5 metres apart. Switch the device on (Laser cross ON). The best calibration results are achie- ved if the device is mounted on a tripod.
- Page 9 Zubehör (optional) Accesorios (opcional) Accessories (optional) Accessori (optional) Accessoires (optioneel) Akcesoria (opcja) Tilbehør (flere typer) Lisämahdollisuuksia valinnaisvarusteilla Accessoires (en option) Acessórios (opcional) Art.-Nr: 023.61A Art.-Nr: 090.120A Art.-Nr: 033.20-1 Art.-Nr: 080.30 ACL 7C PowerBr.: optional ACL 7C PowerBr. RX: inclusive...
- Page 10 AutoCross-Laser 7C PowerBright Laserstrahlung! Nicht in den Strahl blicken oder direkt mit optischen Instrumenten betrachten. Laser Klasse 2 M EN60825-1:2007-10 Laser radiation! Do not look into the beam or observe it directly with optical instruments. Laser class 2 M EN60825-1:2007-10 Service- und Versand-Anschrift Dirección de servicio y de envío...
