2. Installation

2.1 Mounting
HANGING
The fixture can be mounted in a hanging position using
the supporting bracket. The bracket should be secured to
the mounting truss or structure using a standard mounting
clamp. Please note that when hanging the unit a safety cable
should also be used.

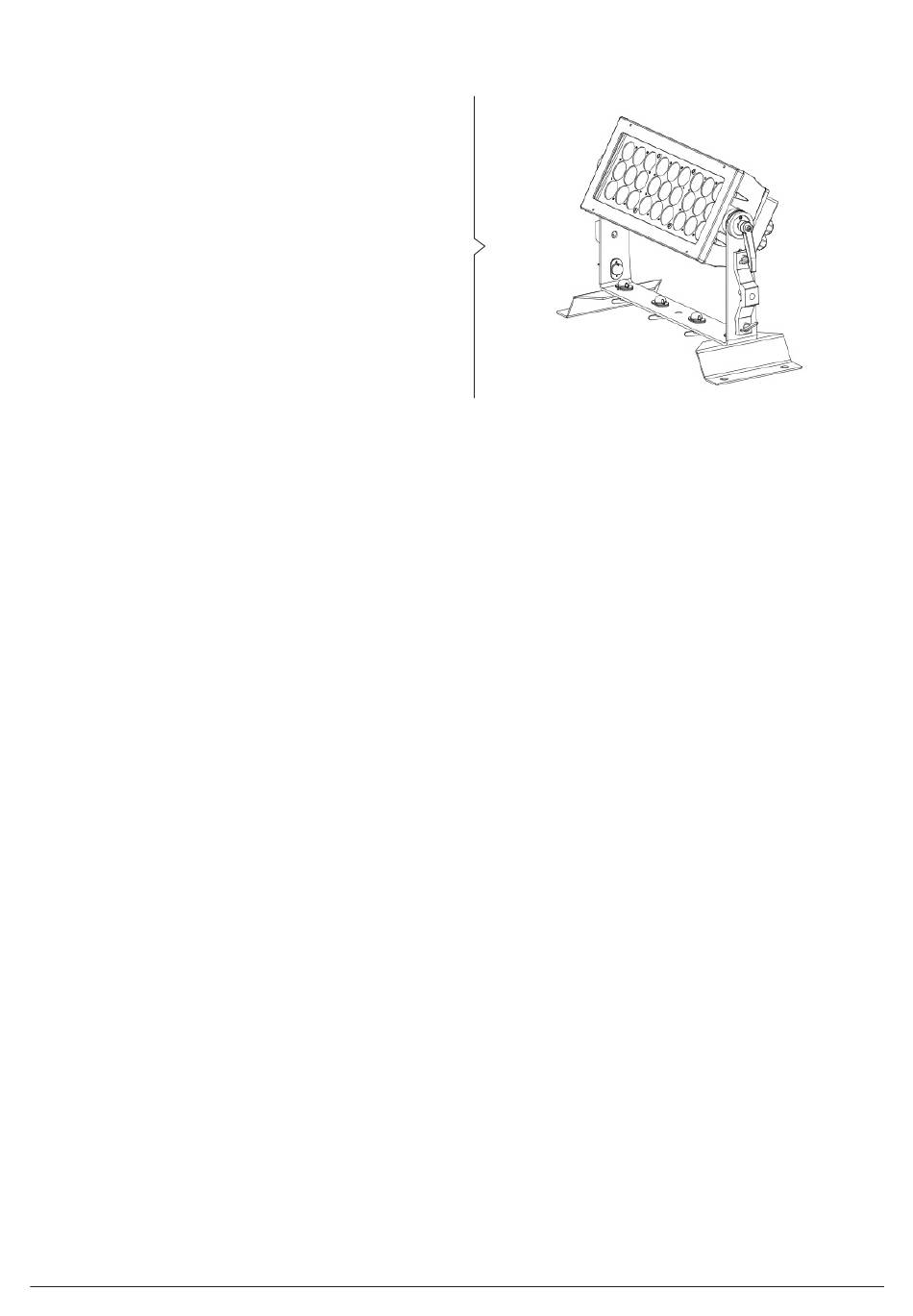

UPRIGHT
The fixture can be mounted in an upright or sitting position
using the supporting brackets.

2.2 Power connections

@220V: 6 units may be connected in series
@110V: 3 units may be connected in series
NOTE
If the signal cable is over 60m between the DMX512 controller
and fixture or between two fixtures, then a DMX signal amplifi-
er is needed as well.
