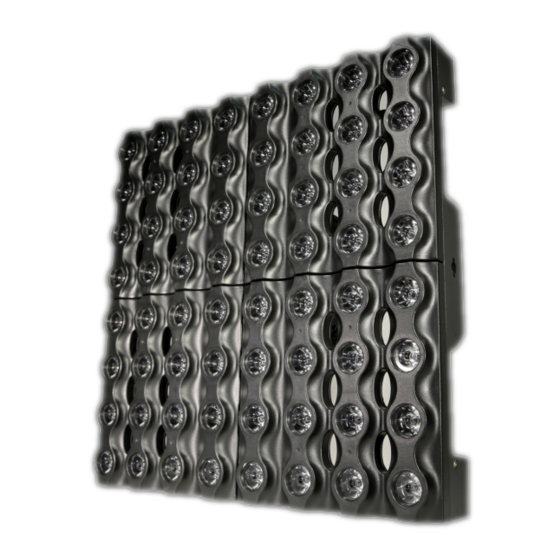

Led blinder with pixel mapping

Advertisement

Available languages

Available languages

Quick Links

NEO DOTZ
LED BLINDER WITH PIXEL MAPPING
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
P. 1
- Neo Dotz

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEO DOTZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NEO NEO DOTZ

  • Page 1 NEO DOTZ LED BLINDER WITH PIXEL MAPPING USER MANUAL / MANUAL DE USUARIO PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR P. 1 - Neo Dotz...
  • Page 2 Dimming curve effects to reproduce the look and feel of tungsten lighting • Dimmer: 0-100% with 4 dimming curves • Strobe effect: 0-30Hz • 3 built-in shows • Flicker free operation • Locking bolt connections P. 2 Neo Dotz - English version...
  • Page 3 Art-Net, sACN, Kling-Net, or DMX protocols. The product panels have coffin locks so they can be hung vertically, and locking bolt connectors so they can be connected hori- zontally. P. 3 English version - Neo Dotz...
  • Page 4 2. DIMENSIONS 150 mm 90 mm 500 mm 77mm P. 4 Neo Dotz - English version...
  • Page 5 1. LCD Display 2. MENU Button 3. UP Button 4. DOWN Button 5. ENTER Button 6. Power In 7. DMX In 2 3 4 5 8. Power Out 9. DMX Out 10. Network Interface P. 5 English version - Neo Dotz...
  • Page 6: Menu Map

    Set Universe Network 000-127 Sets the net number of the product Sub Network Sets the subnet of the product 00-15 Universe Sets the universe of the product Set LCD Backlight Sets backlight on always P. 6 Neo Dotz - English version...
  • Page 7: Dmx Channel Assignments And Values

    Auto Speed 000-255 Slow to fast 000-010 Preset dimmerspeed from display menu 011-059 Dimmer Off 060-108 Dimmer Mode 1 Dimmer Mode 109-157 Dimmer Mode 2 158-206 Dimmer Mode 3 207-255 Dimmer Mode 4 P. 7 - Neo Dotz English version...
  • Page 8 Line Hop Up/Down 146-154 T-Spin 155-163 Upside down T-Spin 164-172 Diamond Spoke Spin 173-181 Line Hop Left 182-190 Line Hop Right 191-199 Line Hop Left/Right 200-208 Double Verticals 209-217 Double Horizontals 218-226 Diagonal Right P. 8 Neo Dotz - English version...
  • Page 9 Percent/Setting 1-64 White 1-White 64 000-255 0-100% 000-010 No function 011-071 Auto 0 072-132 Auto 1 Auto programs 133-192 Auto 2 194-255 Auto 3 Auto Speed 000-255 Slow to fast Dimmer 000-255 0-100% P. 9 English version - Neo Dotz...
  • Page 10 Diamond Exploder 065-073 Two-Line Spinner Virtual Gobo Maps 074-082 Triangle Spinner 083-091 Tri-Downer 092-100 Tri-Upper 101-109 Bowtie Spinner 110-118 One-Liner 119-127 Line Hop Up 128-136 Line Hop Down 137-145 Line Hop Up/Down 146-154 T-Spin P. 10 Neo Dotz - English version...
  • Page 11 No function Strobe 011-255 0-20Hz 000-010 Preset dimmer speed from display menu 011-059 Dimmer Off 060-108 Dimmer Mode 1 Dimmer Mode 109-157 Dimmer Mode 2 158-206 Dimmer Mode 3 207-255 Dimmer Mode 4 P. 11 English version - Neo Dotz...
  • Page 12 Efecto de dimming que reproduce lo generado por las lámparas de tungsteno • Dimmer: 0-100% con 4 curvas diferentes • Efecto estrobo: 0-30Hz • 3 shows incorporados • Opción para operación sin parpadeo • Conectores de lock P. 12 Neo Dotz - Versión Español...
  • Page 13 Art-Net, sACN, Kling-Net o DMX. Gracias a los seguros de junta plana, es posible colgar el equi- po de forma vertical, y los conectores de pestillos permiten colgarlo de forma horizontal. P. 13 Versión Español - Neo Dotz...
  • Page 14 2. DIMENSIONES 150 mm 90 mm 500 mm 77mm P. 14 Neo Dotz - Versión Español...
  • Page 15: Descripción Del Producto

    2. Tecla MENU 3. Tecla UP 4. Tecla DOWN 5. Tecla ENTER 6. Entrada de energía 7. Entrada DMX 2 3 4 5 8. Salida de energía 9. Salida DMX 10. Interfaz de red P. 15 Versión Español - Neo Dotz...
  • Page 16: Menú De Funciones

    Configuración del número de red del equipo Sub Network Configuración del número de subred del equipo 00-15 Universe Configuración del número de universo del equipo Set LCD Backlight Luz de fondo siempre encendida P. 16 Neo Dotz - Versión Español...
  • Page 17 000-010 Configura la velocidad del dimmer desde el menú de la pantalla 011-059 Dimmer apagado Modo dimmer 060-108 Modo dimmer 1 109-157 Modo dimmer 2 158-206 Modo dimmer 3 207-255 Modo dimmer 4 P. 17 Versión Español - Neo Dotz...
  • Page 18 164-172 Giro diamante 173-181 Salto de línea hacia la izquierda 182-190 Salto de línea hacia la derecha 191-199 Salto de línea hacia la izquierda/derecha 200-208 Verticales dobles 209-217 Horizontales dobles 218-226 Diagonal derecha P. 18 Neo Dotz - Versión Español...
  • Page 19 Canal Función Valor Porcentaje/Configuración 1-64 Blanco 1-64 000-255 0-100% 000-010 Sin función 011-071 Auto 0 Programas 072-132 Auto 1 automáticos 133-192 Auto 2 194-255 Auto 3 Velocidad 000-255 Velocidad creciente Dimmer 000-255 0-100% P. 19 Versión Español - Neo Dotz...
  • Page 20 Efecto descendente triple 092-100 Efecto ascendente triple 101-109 Ruleta moño 110-118 Una línea 119-127 Salto de línea ascendente 128-136 Salto de línea descendente 137-145 Salto de línea ascendente y descendente 146-154 Giro en T P. 20 Neo Dotz - Versión Español...
  • Page 21 158-206 Modo dimmer 3 207-255 Modo dimmer 4 Observación: El proveedor no asumirá responsabilidad por los errores u omisiones del manual. La información de este manual está sujeta a cambios sin previo aviso. P. 21 Versión Español - Neo Dotz...
  • Page 22 P. 22 Neo Dotz -...
