Kit-CJE Core Upgrade B75B Motherboard
This kit contains the parts and instruction to install the B75B Motherboard into your CJE
Computer Core. Notice: This kit does not provide support for Modem dialup connections.
Tools Required
#2 Phillips Screwdriver, ¼ Nut Driver.
Parts Included with this Kit
Item #
Part Number
1
40924220
2
22350001
3
34052405
4
22132269
5
22132270
6
22157606
7
22167738
8
22188403
1
7
6
2
Kit #22166908
Description
B75B Motherboard
Hard Drive SSD Win10 (US)
CBA – Power On/Reset
Cable Assembly COM To I/O
Cable Assembly Power On/Reset
License – Windows 10
Label – (61197014)
Card – Trigger Code (Not Shown)
These Instructions

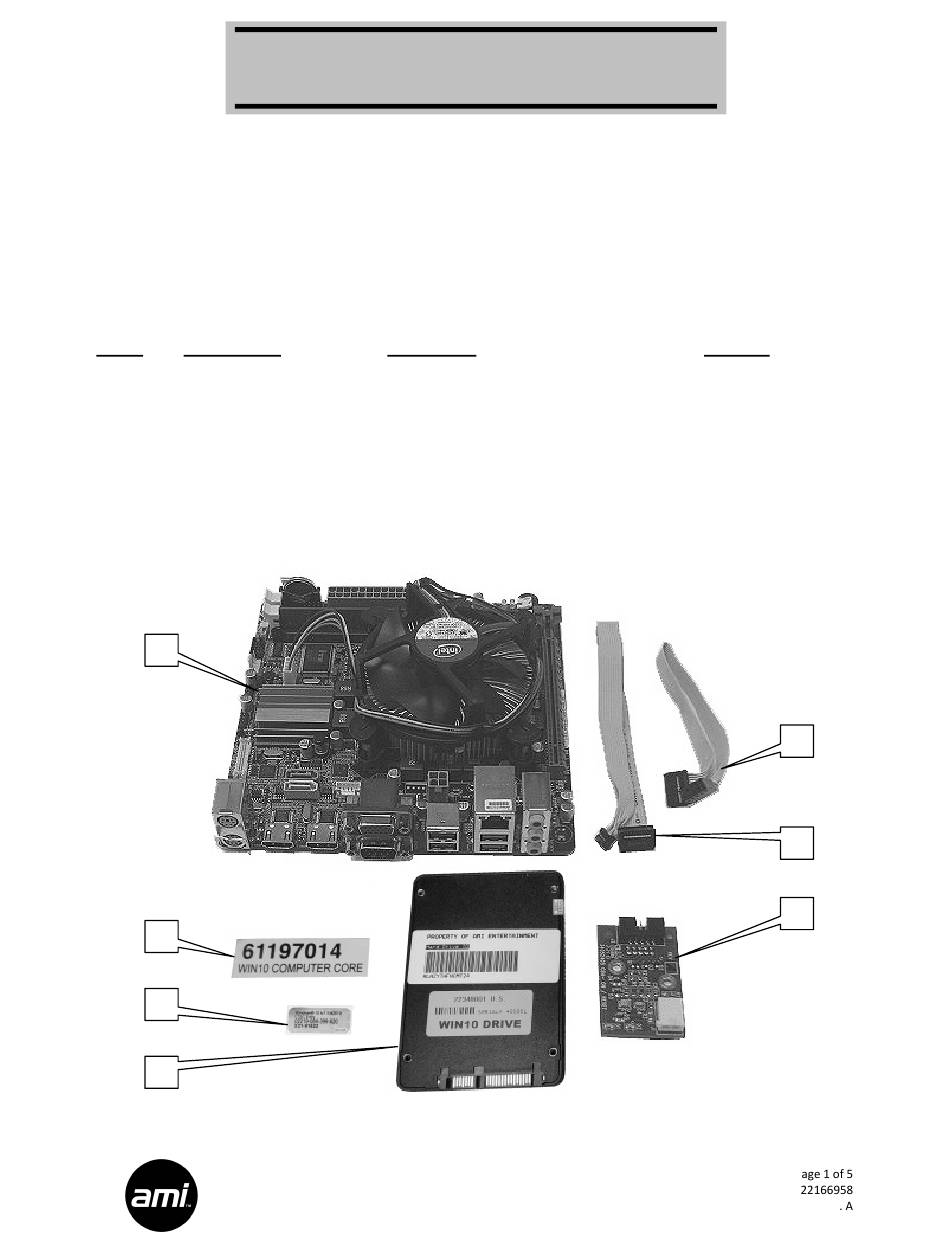

Figure 1
Quantity
1
1
1
1
1
1
1
1
5
4
3
W
Z s
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AMI Kit-CJE B75B
Summary of Contents for AMI Kit-CJE B75B
- Page 1 Installation Instructions Kit-CJE Core Upgrade B75B Motherboard Kit #22166908 This kit contains the parts and instruction to install the B75B Motherboard into your CJE Computer Core. Notice: This kit does not provide support for Modem dialup connections. Tools Required #2 Phillips Screwdriver, ¼ Nut Driver. Parts Included with this Kit Item # Part Number...
- Page 2 Removal Instructions Caution: When installing this B75B motherboard, care should be taken to avoid static discharges which could damage the motherboard. The motherboard installation should be done on a static dissipative mat along with a grounding wrist strap. Retain all the screws while installing this kit. 1.
- Page 3 Installation Instructions 7. Insert the motherboard I/O shield into position and carefully align the new B75B motherboard (Item #1) to the four existing studs of the computer core chassis. Secure the motherboard with four screws removed in step #6. 8. Connect the POWER ON/RESET cable 22132270 (Item #5) into the keyed 10 pin header of the POWER ON/RESET circuit board assembly 34052405 (Item #3) and reinstall into your computer Core using the same two screws.
- Page 4 11. Carefully rotate the ATX Power Supply back into position and secure with three screws previously removed in step #3. Reconnect the ATX 20 pin, and 4-pin power connections to the B75B motherboard. Reconnect the 4-pin power connection to the I/O board. See Figure 4. 12.
- Page 5 This will take some time and may include one or more reboots. 2. In order for the jukebox to connect to the AMI network, the MAC address of the computer core must be entered into the AMI database. This will require a phone call to the AMI Tech Support line, 1-877- ROC-N-ROL (1-877-762-6765).
- Page 6 D/ >> ^ '...
