Ecast View B75B Motherboard Upgrade Kit
This kit will not support the Ecast View COIM Board. If your View core computer
has the Ecast View COIM board installed you must order the AMI Hardware
conversion Kit # 26683513.
Tools Required
#2 Phillips Head Screwdriver.
Parts Included with this Kit
Item #
Part Number
1
40924214
2
22219001
3
40980802
4
22132253
5
22132252
6
34037946
7
22132284
8
22132280
9
80351604
10
ST-06348
1
2
Installation Instructions
Kit #26683801
Description
B75B Motherboard
SATA Hard Drive (US)
Bracket SATA Mounting Adapter
Cable HD SATA Power
Cable HD SATA/DATA
Harness ATX Power Adapter
Harness Front Panel View (B75B)
Cable Assembly COM to I/O
Screws #4-40 x ¼ Phillip (Not Shown)
Screws #6-32 x ¼ Phillip (Not Shown)
These Instructions

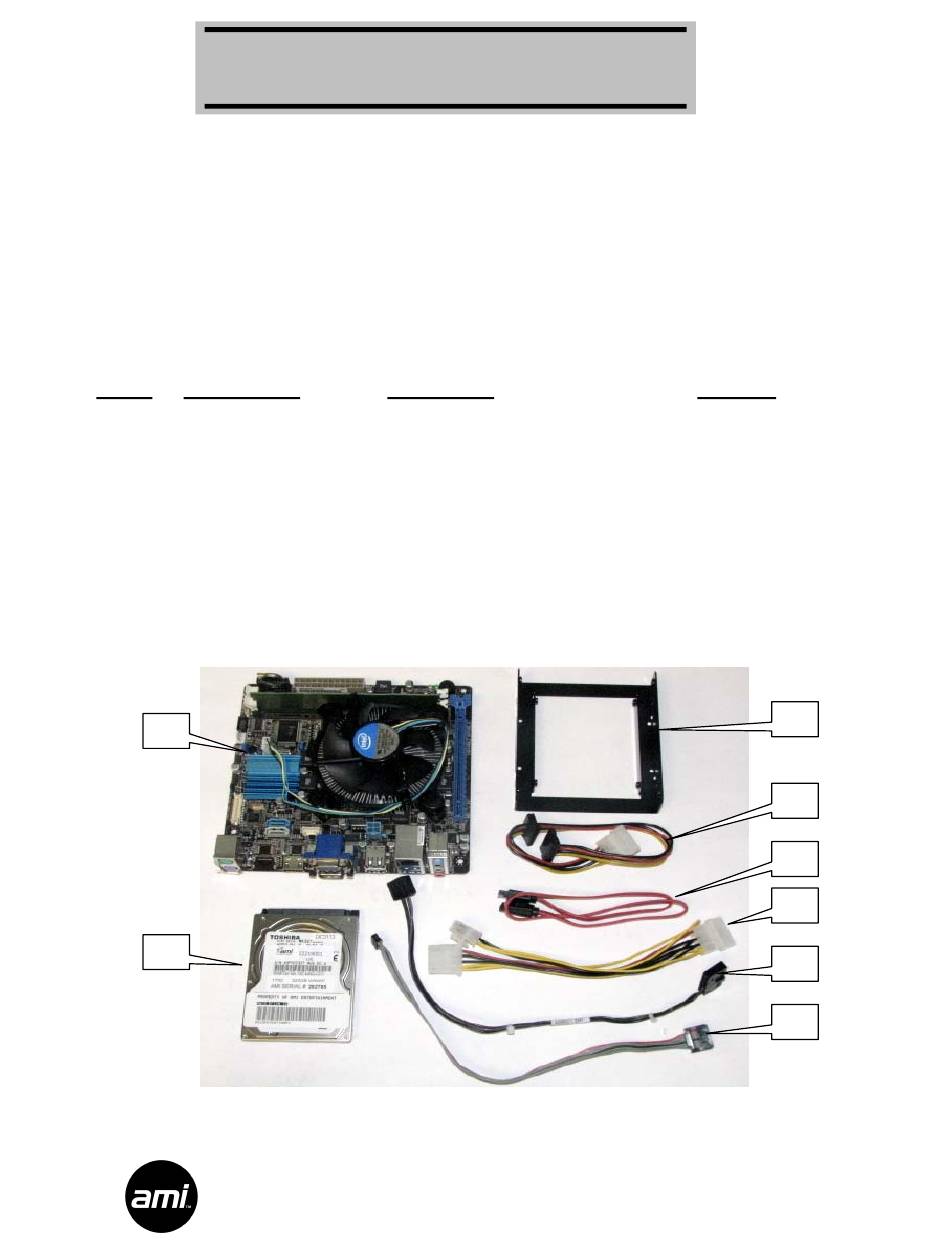

Figure 1
Quantity
1
1
1
1
1
1
1
1
4
4
3
4
5
6
7
8
Page 1 of 8
26683851
REV. A
