Kit-CJE Core Upgrade MIX-H310 Motherboard
This kit contains the parts and instruction to install the MIX-H310 Motherboard into your CJE
Computer Core. Notice: This kit does not provide support for Modem dialup connections.
Tools Required
#2 Phillips Screwdriver, ¼ Nut Driver.
Parts Included with this Kit
Item #
Part Number
1
40924230
2
22362001 or 22362007
3
34052405
4
22145644
5
22145641
6
22157606
7
22167746
8
22167751
9
22188403
1
7
8
6
2
Kit #22166910, Kit #22166911
Description
MIX-H310 Motherboard
Drive SSD Win10 (Red)(US or CANADA)
CBA – Power On/Reset
Cable Assembly COM To I/O
Cable Assembly Power On/Reset
License – Windows 10
Label – (61197020)
Label – (REQUIRES RED DRIVE)
Card – Trigger Code (Not Shown)
These Instructions

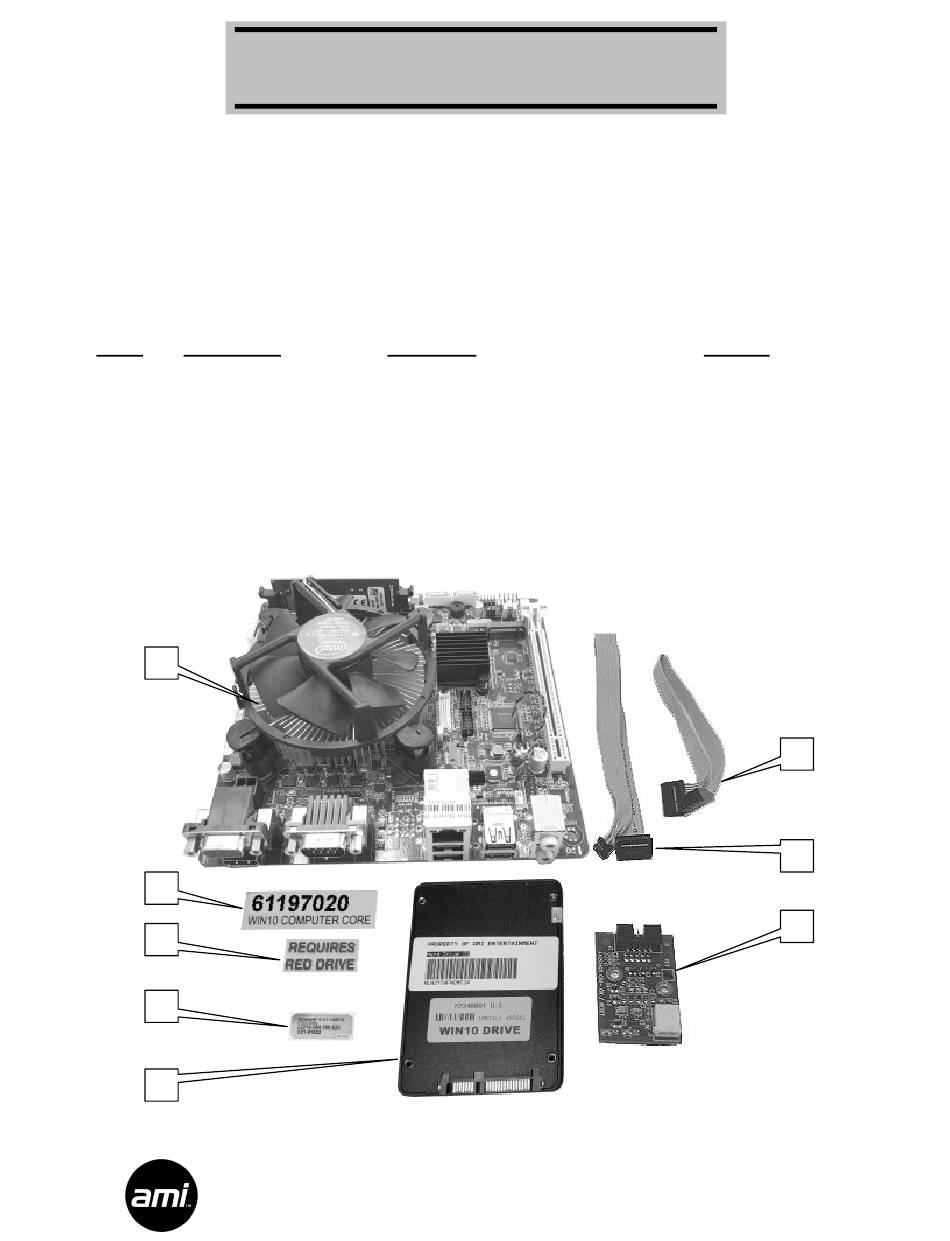

Figure 1
Quantity
1
1
1
1
1
1
1
1
1
5
4
3
Page 1 of 5
22166960
REV. B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AMI MIX-H310
Summary of Contents for AMI MIX-H310
- Page 1 Installation Instructions Kit-CJE Core Upgrade MIX-H310 Motherboard Kit #22166910, Kit #22166911 This kit contains the parts and instruction to install the MIX-H310 Motherboard into your CJE Computer Core. Notice: This kit does not provide support for Modem dialup connections. Tools Required #2 Phillips Screwdriver, ¼...
- Page 2 Removal Instructions Caution: When installing this MIX-H310 motherboard, care should be taken to avoid static discharges which could damage the motherboard. The motherboard installation should be done on a static dissipative mat along with a grounding wrist strap. Retain all the screws while installing this kit.
- Page 3 9. Connect the COM TO I/O Cable Assembly 22145644 (Item #4) to the keyed 10 pin header of the I/O board mounted in the core chassis. Connect the other end of the cable to the “COM 1” shrouded header of the MIX-H310 motherboard. See Figure 3. Be sure to use the header closer to the Chassis Fan.
- Page 4 11. Carefully rotate the ATX Power Supply back into position and secure with three screws previously removed in step #3. Reconnect the ATX 20 pin, and 4-pin power connections to the MIX-H310 motherboard. Reconnect the 4-pin power connection to the I/O board. See Figure 4.
- Page 5 This will take some time and may include one or more reboots. 2. In order for the jukebox to connect to the AMI network, the MAC address of the computer core must be entered into the AMI database. This will require a phone call to the AMI Tech Support line, 1-877- ROC-N-ROL (1-877-762-6765).
- Page 6 AMI Entertainment Network LLC – 4147 Eastern Ave SE – Grand Rapids, MI 49508...
