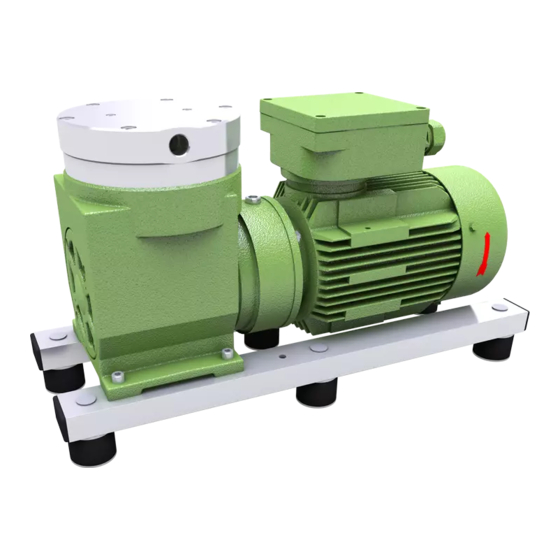

Diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
KNF 321729 11/19
ATEX

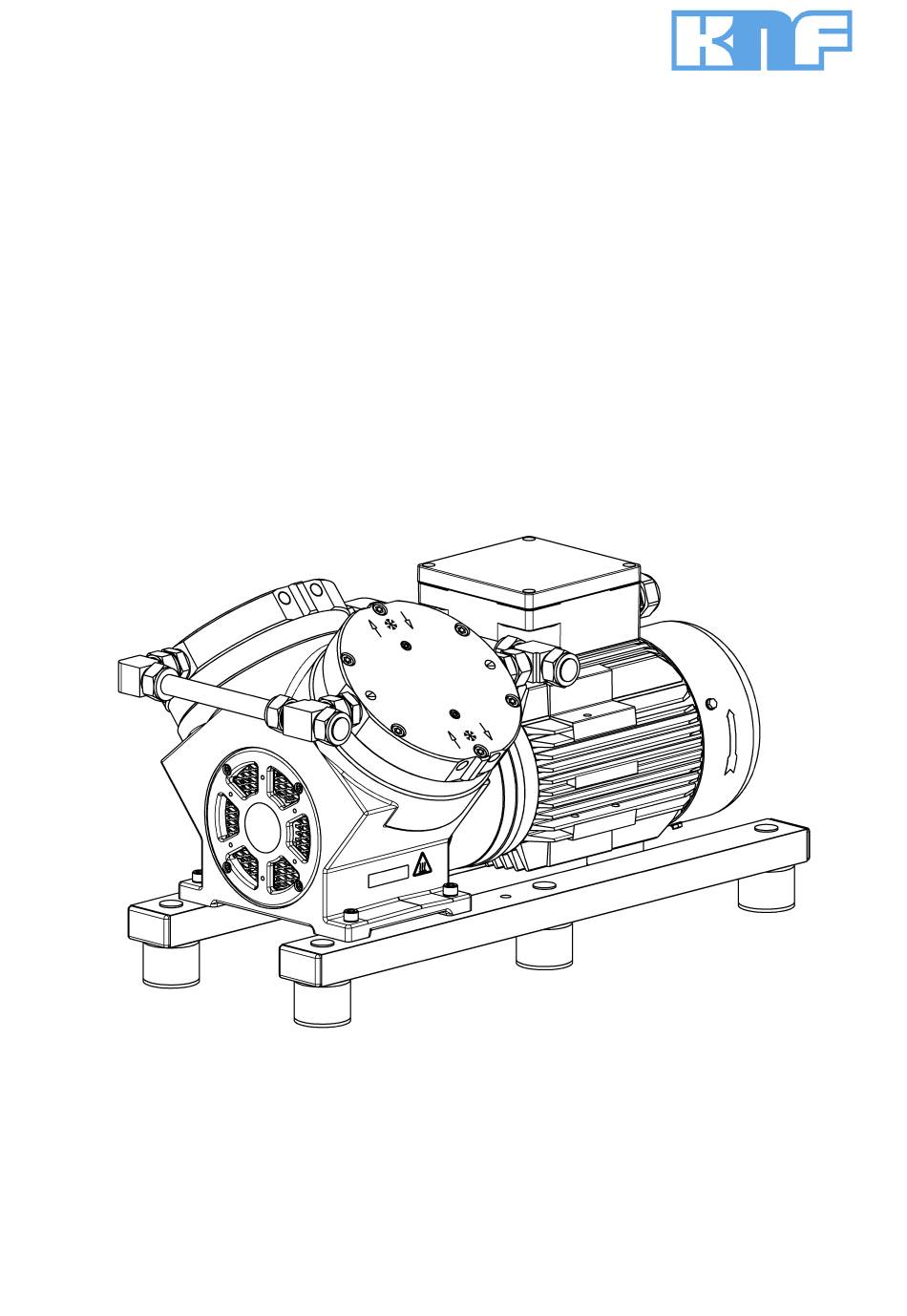

DIAPHRAGM PUMP
Notice!
Before operating the pump and the accessories, read the operating and installation instructions and observe
the safety notices!
N0150 EX
TRANSLATION OF ORIGINAL OPERATION AND
INSTALLATION INSTRUCTION
ENGLISH
