Protec Algo-Tec 6500 Commissioning Manual page 3

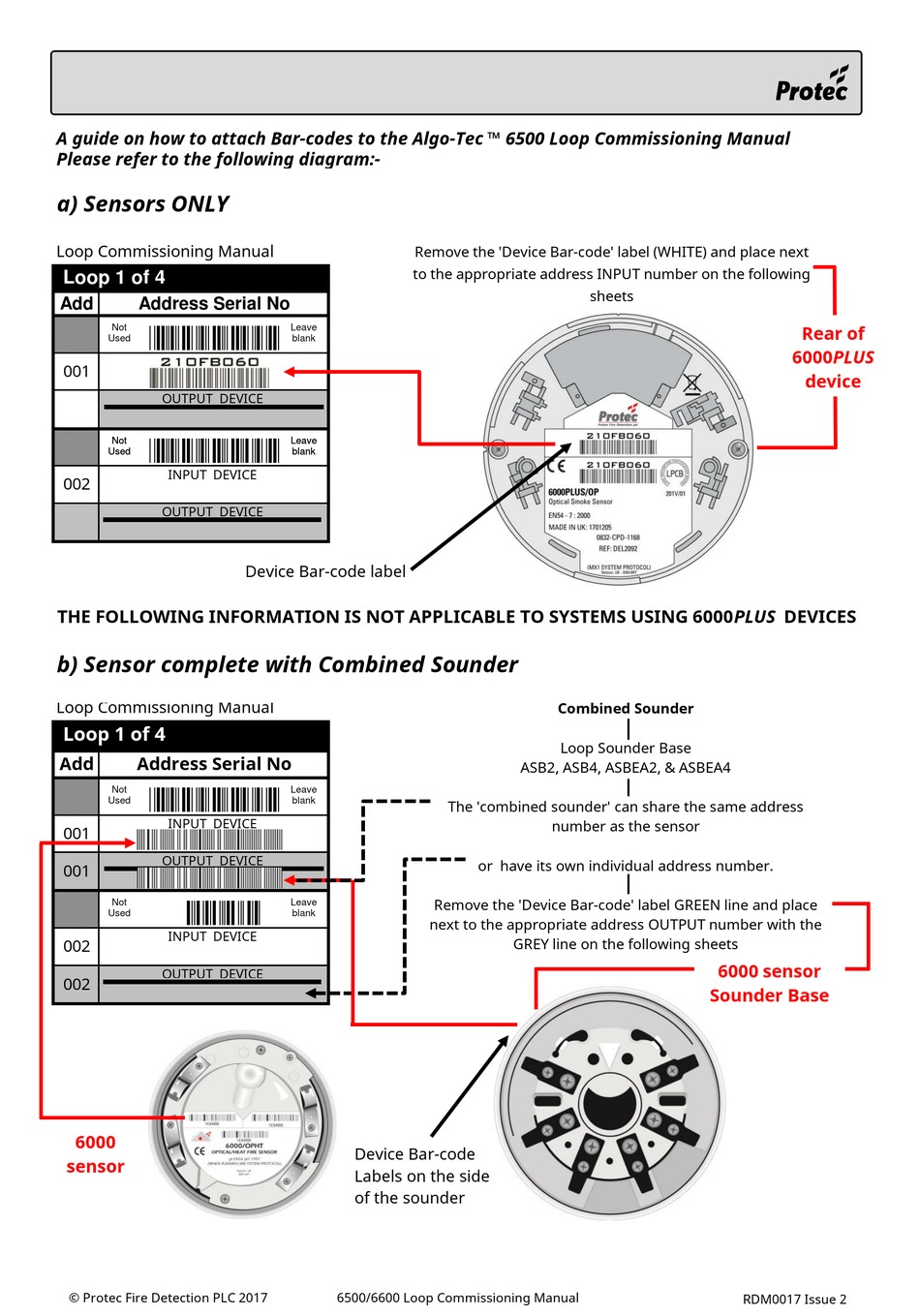

A guide on how to attach Bar-codes to the Algo-Tec ™ 6500 Loop Commissioning Manual
Please refer to the following diagram:-
a) Sensors ONLY
Loop Commissioning Manual
Loop 1 of 4
Add Address Serial No
Not
*L1001*
Used
INPUT DEVICE
001
OUTPUT DEVICE
Not Not
*L1002*
Used Used
INPUT DEVICE
002
OUTPUT DEVICE
THE FOLLOWING INFORMATION IS NOT APPLICABLE TO SYSTEMS USING 6000PLUS DEVICES
b) Sensor complete with Combined Sounder
Loop Commissioning Manual
Loop 1 of 4
Add Address Serial No
Not
*L1001*
Used
INPUT DEVICE
001
OUTPUT DEVICE
001
Not
#REF!
Used
INPUT DEVICE
002
OUTPUT DEVICE
002
6000
sensor
© Protec Fire Detection PLC 2017
Remove the 'Device Bar-code' label (WHITE) and place next
to the appropriate address INPUT number on the following
Leave
blank
Leave Leave
blank blank
Device Bar-code label
Leave
blank
Leave
blank
Device Bar-code
Labels on the side
of the sounder
6500/6600 Loop Commissioning Manual
sheets
Combined Sounder
Loop Sounder Base
ASB2, ASB4, ASBEA2, & ASBEA4
The 'combined sounder' can share the same address
number as the sensor
or have its own individual address number.
Remove the 'Device Bar-code' label GREEN line and place
next to the appropriate address OUTPUT number with the
GREY line on the following sheets
Rear of
6000PLUS
device
6000 sensor
Sounder Base
RDM0017 Issue 2
