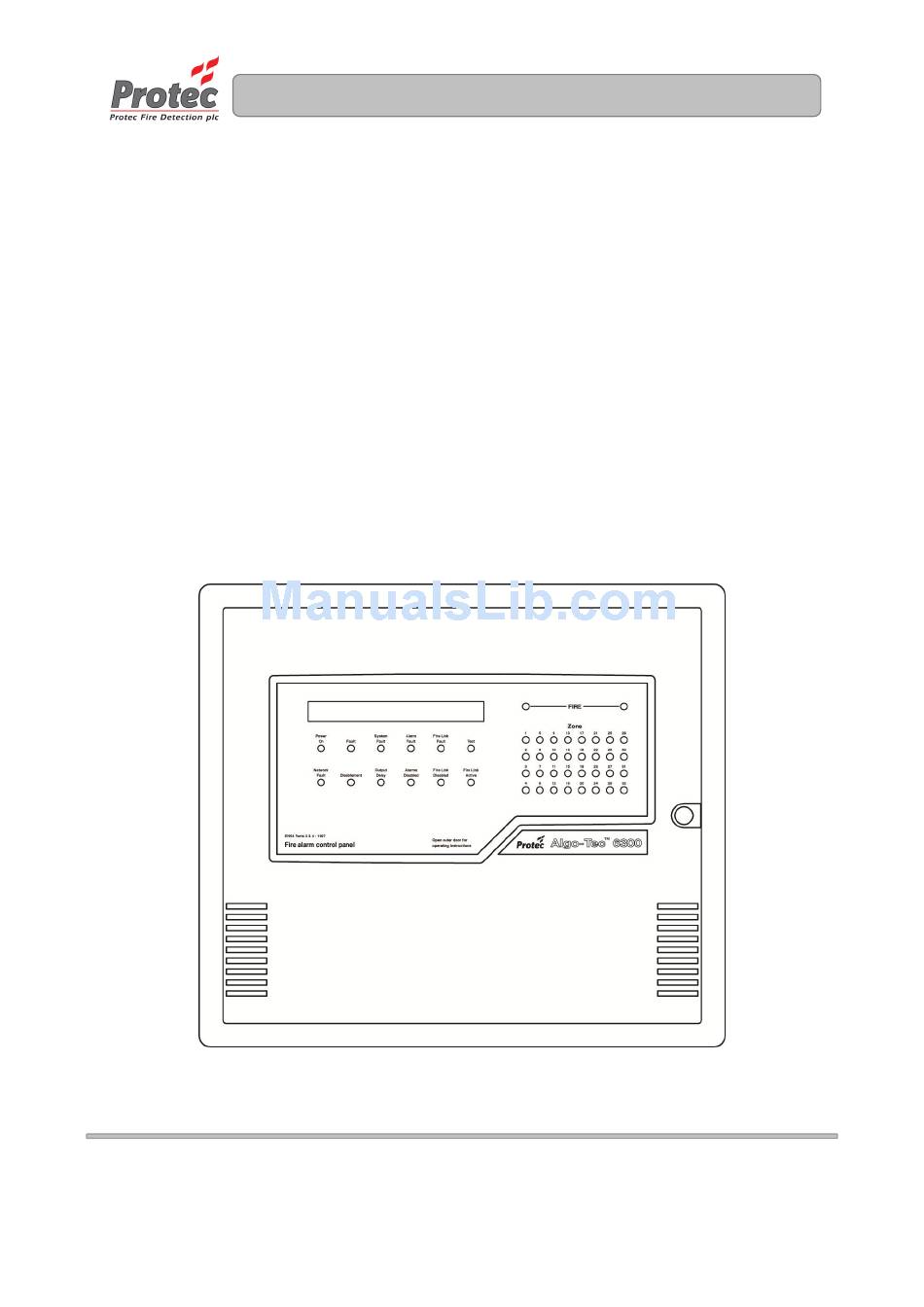

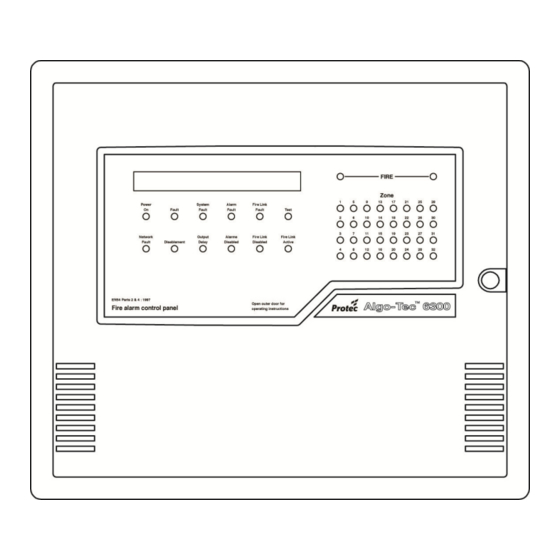

- Page 1 www.acornfiresecurity.com Algo-Tec™ 6300 INTERACTIVE DIGITAL ADDRESSABLE FIRE CONTROL SYSTEM (1-4 LOOPS) INSTALLATION MANUAL www.acornfiresecurity.com...
- Page 2 Environment Information, Battery Type 17/12/03 Fuse Ratings & Cable Type Added 6000PLUS devices to table 2 2 Rev 2 14/05/10 Removed loop device PIDs 93-509-09 - Issue 2 Rev 2 Page 2 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com...
-
Page 3: Table Of Contents
6.2 FIELD EQUIPMENT ..........................17 6.3 ALARM CIRCUITS ........................... 17 6.4 FIRE STATION OUTPUT .......................... 17 S ......................18 N ............................19 A ..............................20 93-509-09 - Issue 2 Rev 2 Page 3 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 4: The 6300 System
This document describes the methods to be employed when installing and connecting equipment associated with the PROTEC 6300 FIRE ALARM CONTROL PANEL. The 6300 panel is produced with 1, 2 or 4 loops and this manual is suitable for all versions. -
Page 5: Loop Short Circuit Or Loop Interruption
1.2.3 DOUBLE ADDRESSING ‘Double Addressing’, where a detection device and a sounder are assigned to the same address, is not supported by the 6300 panel. 93-509-09 - Issue 2 Rev 2 Page 5 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 6: Power Supply Cabling (Remote Charger Only)
EACH OF THE RS485 CIRCUITS MUST BE WIRED IN A SEPARATE PAIR. WHEN THE CABLE HAS A SCREEN THEN THE SCREEN MUST BE EARTHED AND CONTINUOUS OVER THE CABLE RUN. 93-509-09 - Issue 2 Rev 2 Page 6 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 7: Loop Cabling
Total Loop Load Alarm (mA) Loop Length (metres) 1000 1050 1100 1150 1200 1250 1300 1350 1400 1450 1500 Total Loop Load Alarm (mA) 93-509-09 - Issue 2 Rev 2 Page 7 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 8: Alarm Cabling
Zone/Alarm Interface Units I/O Interface Units Repeat Panel Power Supply Remote Chargers Only 5. 24V Supply circuit 1 24V Supply circuit 2 SF & CI Signals 93-509-09 - Issue 2 Rev 2 Page 8 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 9: Panel Current
Interface Units (refer to note 2 of table 3). The alarm loop current figures may differ from the figures quoted in other Protec literature. The figures here assume a limit on the number of devices lighting their fire led so this reduced led current is averaged across all the loop devices. -
Page 10: Table 2 – Addressable '6000' Loop Equipment Current Details
MONITORED INPUT CLEAN CONTACT OUTPUT BOARD - 6000/MICCO CLEAN CONTACT OUTPUT BOARD 6000/CCO MONITORED INPUT BOARD 0.65 6000/MIP MONITORED INPUT WITH CLEAN CONTACT OUTPUT - 6000/MIPCCO 93-509-09 - Issue 2 Rev 2 Page 10 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 11: Table 2 B – Addressable '6000' Loop Equipment Current Details Continued
14.23 LED Beacon 6000Plus Heat Detector with Talking Sounder 17.53 and LED Beacon 6000Plus Talking SSR 6000Plus Talking SSR with LED Beacon 0.45 14.42 93-509-09 - Issue 2 Rev 2 Page 11 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 12: Table 2 C – Addressable '6000' Loop Equipment Current Details Continued
CIRRUS PRO INTERFACE 6000/CPRO LOCAL CONTROL MODULE 0.7 + detectors + EOL 67mA Figure assumes a supply fault, buzzer on and both LCD backlights on 93-509-09 - Issue 2 Rev 2 Page 12 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 13: Current Details
The peak values occur when the beacon is at its ‘on’ stage during flashing. There are variants of this product depending upon the monitoring requirements. 93-509-09 - Issue 2 Rev 2 Page 13 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 14: Control Panel
9) Re-fitting the Plastic Door Re-fit the outer plastic door by offering the door up to the hinges and inserting the 2 hinge pins. 93-509-09 - Issue 2 Rev 2 Page 14 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... -
Page 15: Field Equipment
All metal termination boxes and detector bases should be securely fastened to the mounting surface and earth bonded. FIELD EQUIPMENT MUST NOT BE CONNECTED AT THIS STAGE. 93-509-09 - Issue 2 Rev 2 Page 15 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... - Page 16 Great care must be taken during insulation tests to discharge the cables, since charged cable may damage the control equipment upon connection. 93-509-09 - Issue 2 Rev 2 Page 16 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com...
-
Page 17: Control Equipment
It is designed to drive 24V into an 1100Ω load. This output is open and short circuit monitored by the use of a 1K 0.5W end-of-line resistor. 93-509-09 - Issue 2 Rev 2 Page 17 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com... - Page 18 Note: The Fire Alarm Commissioning Application form must be completed and returned 14 days before a commissioning engineer can attend. 93-509-09 - Issue 2 Rev 2 Page 18 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com...
- Page 19 2 WIRE RS485 COMMS + 2 WIRE POWER NETWORK 2 WIRE RS485 LOOP INTEGRAL CHARGER 3A SWITCH MODE (Protec series 9000 PSU) INTEGRAL BATTERIES 4 x 6V 10Ah Sealed lead acid (Lynteck OL Models) 2 x 12V 26Ah Sealed lead acid (when using the external battery box...
- Page 20 93-509-09 - Issue 2 Rev 2 Page 20 of 20 Copyright Protec Fire Detection PLC www.acornfiresecurity.com...
