3.12 Bore holes

3.2 Deadbolt Latch Selection

There are two deadbolt latches in each box, one with a 2 3/8‖
(60mm) backset and the other with a 2 ¾‖ (70mm) backset. Make
sure which length you will need and select the right one before
installation.
NextBolt User Manual
For support contact us a 1-800-408-7101 ext. 102
www.BuilderDepot.com
http://www.advancedactuators.com

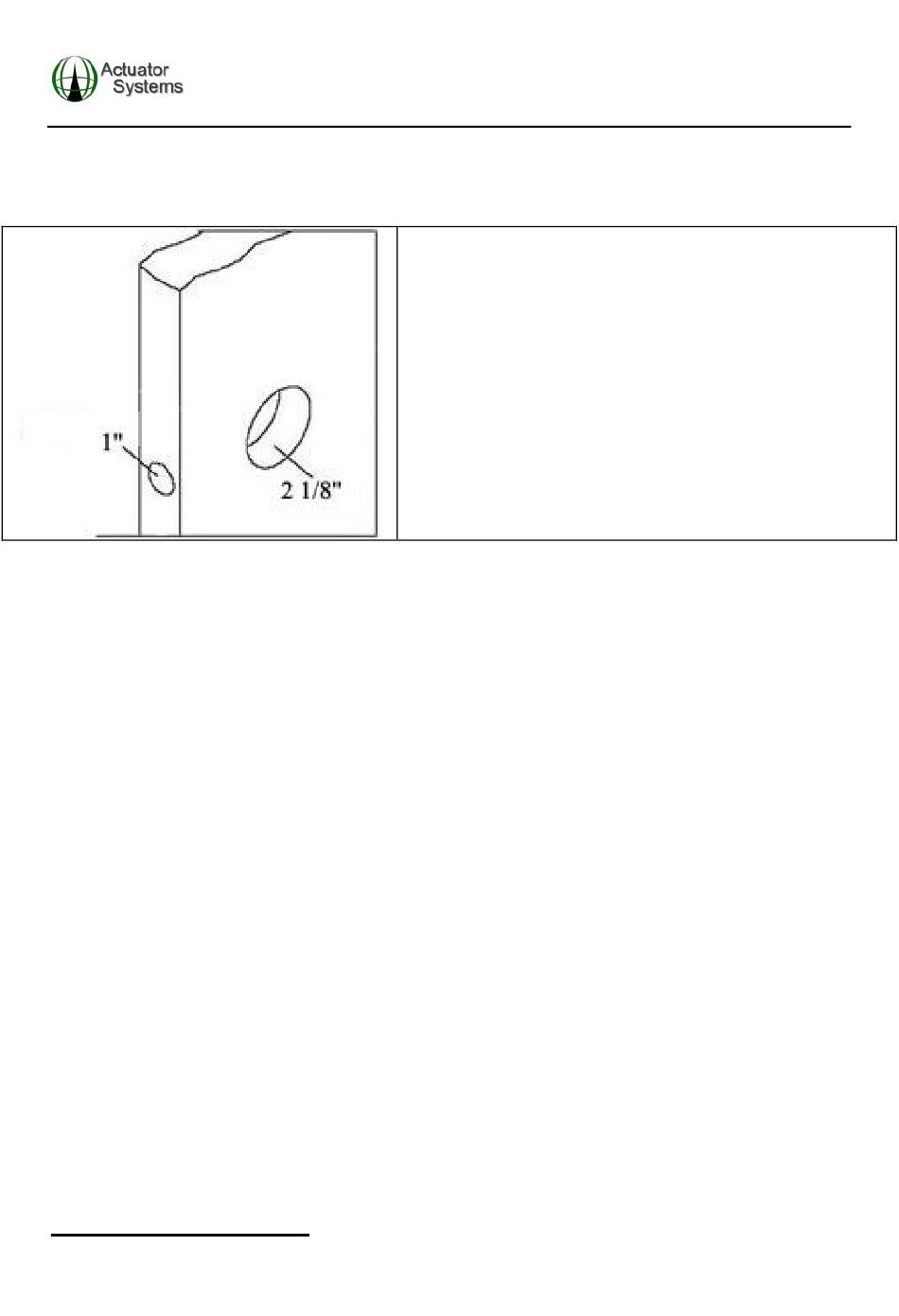

A. Bore a 2 1/8‖ diameter hole in the
center of door face for chassis. (It is
recommended to bore this hole from
both sides of the door to avoid
splintering.)
B. Bore a 1‖ diameter hole in the center
of door edge for deadbolt.
