4.3 Sizing Tail Piece (to the right length)

The Actuator Systems NextBolt is designed to fit door thicknesses of
1 3/8‖ to 2‖.

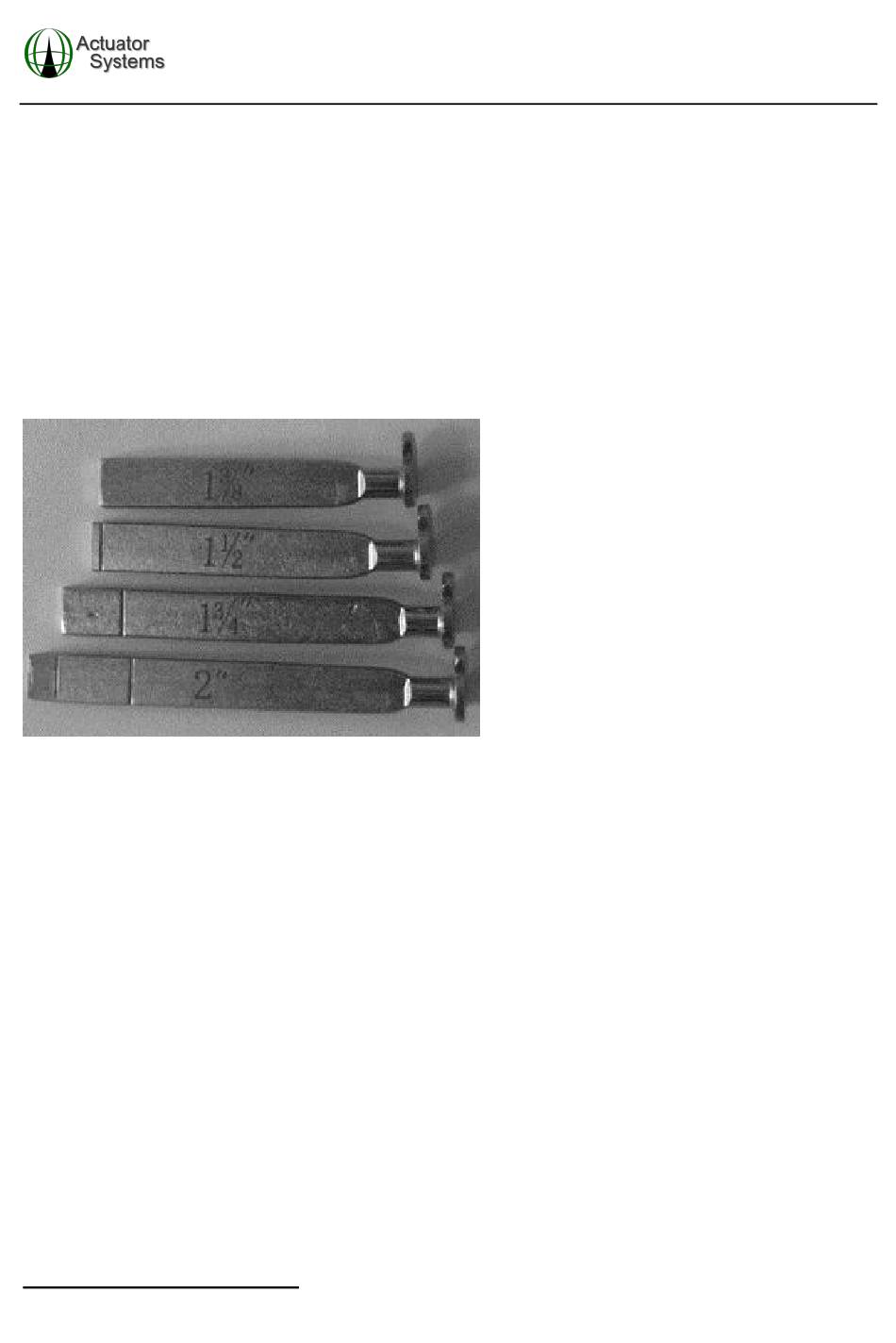

Four pre-sized tailpieces are included with the Actuator Systems
NextBolt for 1 3/8‖, 1 ½‖, 1 ¾‖ and 2‖ thick doors.
Your door thickness and length of the tailpiece being used must
match exactly. EX: If your door is 1 ¾‖ thick, then you must use the
1 ¾‖ long tailpiece.
The Actuator Systems NextBolt comes with the 1 ¾‖ tailpiece pre-
installed. If your door is not 1 ¾‖ thick, but the thickness matches
one of the other pre-cut tailpieces included with the lock, then you
must swap out the tailpiece.
