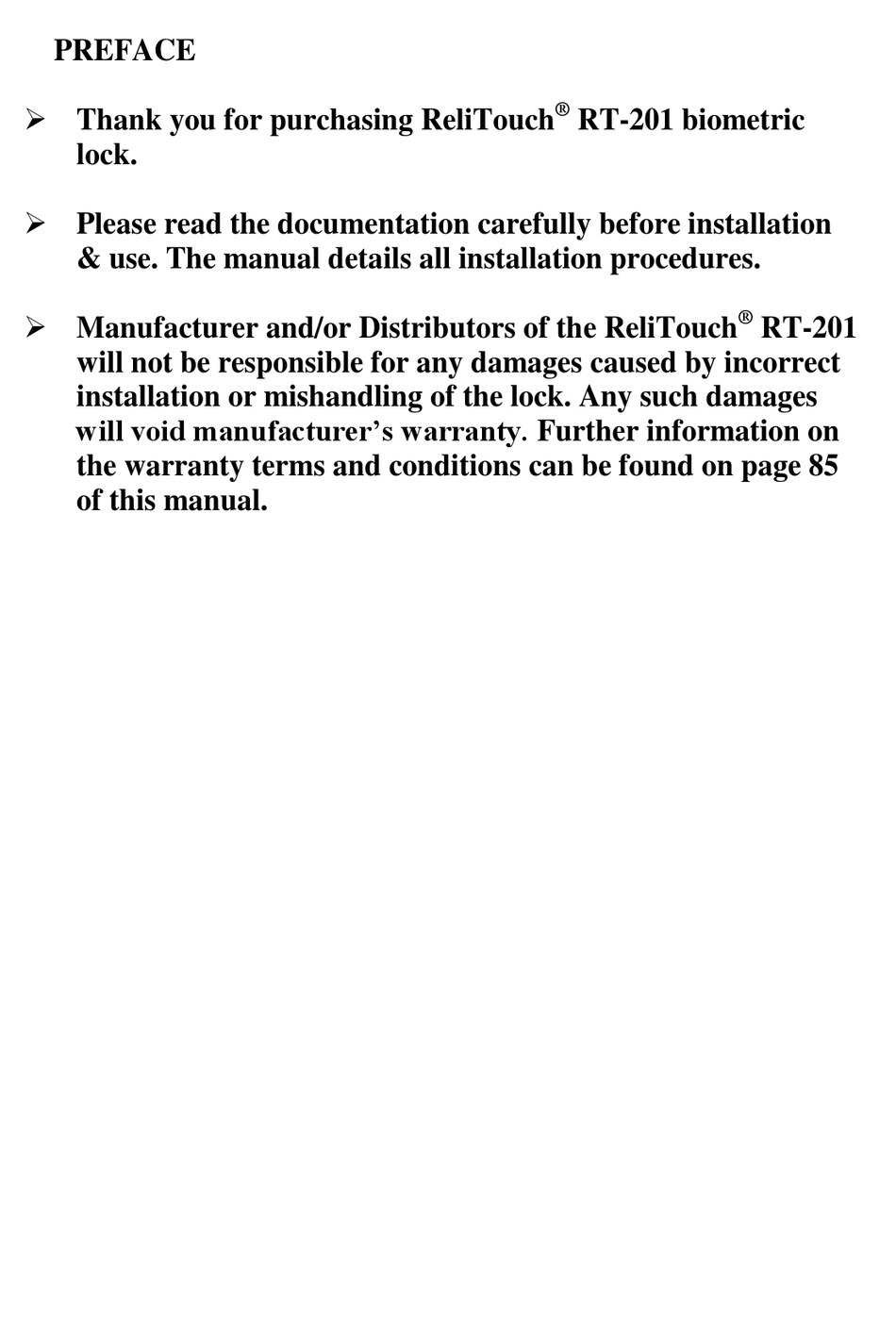

PREFACE
 Thank you for purchasing ReliTouch
lock.
 Please read the documentation carefully before installation
& use. The manual details all installation procedures.
 Manufacturer and/or Distributors of the ReliTouch
will not be responsible for any damages caused by incorrect
installation or mishandling of the lock. Any such damages
will void manufacturer's warranty. Further information on
the warranty terms and conditions can be found on page 85
of this manual.
®
RT-201 biometric
®
RT-201

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReliTouch RT-201 and is the answer not in the manual?

Questions and answers

Related Manuals for Actuator Systems ReliTouch RT-201

Summary of Contents for Actuator Systems ReliTouch RT-201

  • Page 1 PREFACE  Thank you for purchasing ReliTouch ® RT-201 biometric lock.  Please read the documentation carefully before installation & use. The manual details all installation procedures. ®  Manufacturer and/or Distributors of the ReliTouch RT-201 will not be responsible for any damages caused by incorrect installation or mishandling of the lock.

  • Page 2: Table Of Contents

    www.BuilderDepot.com http://www.advancedactuators.com Table of Contents Table of Contents ..................2 ® ReliTouch RT-201 Installation Guide ............. 4 Section 1 Parts ................... 4 Section 2 Required Tools ................. 5 Section 3 Pre-installation ................. 6 3.1 Mark and bore holes on the door ..........6 3.2 Setting/Installing the latch and strike plate ........
  • Page 3 www.BuilderDepot.com http://www.advancedactuators.com ® 1.10 Choosing “ANY TIME” as the Access mode for the ReliTouch 201 ...................... 43 ® 1.11 Choosing “INVALID” as the Access mode for the ReliTouch ® ..................... 44 1.12 Choosing and setting up “ACC-TIME” as the Timed Access mode ®...

  • Page 4: Relitouch ® Rt-201 Installation Guide

    www.BuilderDepot.com http://www.advancedactuators.com ® ReliTouch RT-201 Installation Guide Section 1 Parts Please familiarize yourself with all the parts in the packaging box of ® ReliTouch RT-201. If any part is missed or damaged, contact your dealer immediately. Universal Handles Outdoor Unit Indoor Unit Strike Plate &...

  • Page 5: Section 2 Required Tools

    www.BuilderDepot.com http://www.advancedactuators.com Installation Template Pre-labeled screws Spindle Springs Section 2 Required Tools ① One Electric or battery operated Drill ② One 3/8” Diameter Drill Bit ③ A pair of scissors ④ One Philips head screw driver ⑤ One long, thin shafted Phillips Head Screwdriver ReliTouch®...

  • Page 6: Section 3 Pre-Installation

    www.BuilderDepot.com http://www.advancedactuators.com Section 3 Pre-installation 3.1 Mark and bore holes on the door 3.11 Use the following steps to properly mark holes on door for drilling: 1) Remove existing handle set. 2) Cut out the two, 3/8” holes on the Installation Template that correspond to your existing backset (2 3/8”...
  • Page 7 www.BuilderDepot.com http://www.advancedactuators.com 3) Rest the installation template on the front of the door, on top of the existing 2 1/8” hole, making sure that it is aligned properly for the door’s existing 2 3/8” or 2 ¾” backset. 4) Mark the two, 3/8” holes that you cut out of the installation template on the door (with a magic marker).

  • Page 8: Setting/Installing The Latch And Strike Plate

    www.BuilderDepot.com http://www.advancedactuators.com 5) Bore the two, 3/8” holes into the door (using a 3/8” drill bit), making sure that the holes fully penetrate through the door. 3.2 Setting/Installing the latch and strike plate ® 1) The latch that is included with the ReliTouch RT-201 is adjustable for doors that have 2 3/8”...
  • Page 9 www.BuilderDepot.com http://www.advancedactuators.com 2) Insert the latch into the hole in the edge of the door and screw into place, making sure that the center of the latch’s spindle hole is in the center of the drilled 2 1/8” hole. 3) Screw the included strike plate into the door jamb. ReliTouch®...

  • Page 10: Removing Handles And Re-Installing For Right/Left Handed Configuration

    www.BuilderDepot.com http://www.advancedactuators.com 3.3 Removing handles and re-installing for Right/Left handed configuration ® 1) The ReliTouch RT-201 is a non-handed lock, meaning that it can be installed on either a right handed or left handed door. 2) Use the following steps to install the handles: ...
  • Page 11 www.BuilderDepot.com http://www.advancedactuators.com  2c) Fasten the screw, so the handle is firmly held in place.  2d) Follow steps 2a thru 2c for installation of the handle on the inside unit. ReliTouch® User Manual...

  • Page 12: Section 4 Installation

    www.BuilderDepot.com http://www.advancedactuators.com Section 4 Installation NOTE: Measure the exact thickness of the door and choose the pre-labeled bag of screws (included) whose length matches the exact thickness of the door. The pre-labeled bag of screws will be needed in Section 4.4. 4.1 Impact Alarm Information An impact alarm actuator has been mounted onto the back plate of the outside unit.

  • Page 13: Installing The Outside Unit

    www.BuilderDepot.com http://www.advancedactuators.com If the alarm is triggered, make sure to check the door and the lock immediately. If there is no emergency occurring, then remove the batteries to stop the alarm and check connections. Do not install batteries until installation is completed and lock is installed securely on the door.
  • Page 14 www.BuilderDepot.com http://www.advancedactuators.com 3) Feed the wire set underneath the latch. 4) Align the two middle fixing posts with the two corresponding holes in the latch. ReliTouch® User Manual...
  • Page 15 www.BuilderDepot.com http://www.advancedactuators.com 5) Align two bottom fixing posts with two 3/8” holes that were drilled. 6) Insert outside unit onto the door, making sure that the two middle fixing posts fit into the two holes in the latch and the two bottom fixing posts fit perfectly into the two 3/8”...
  • Page 16 www.BuilderDepot.com http://www.advancedactuators.com 7) Outside unit should be completely flush on the face of the door. ReliTouch® User Manual...

  • Page 17: Installing The Fixing Plate

    www.BuilderDepot.com http://www.advancedactuators.com 4.3 Installing the fixing plate The purpose of the fixing plate is to securely fasten the outside unit onto the door, so installation of the inside unit will be easier, requiring only one person. 1) Place fixing plate over the 2 1/8” hole on the inside of the door. 2) Align center hole of the fixing plate with the spindle hole of the latch.

  • Page 18: Installing The Inside Unit

    www.BuilderDepot.com http://www.advancedactuators.com 4.4 Installing the Inside Unit 1) Insert spindle thru the spindle hole of the latch into the spindle hole of the outside unit. You should be able to feel the spindle pop into the outside unit’s spindle hole. 2) Insert spring into inside unit’s square hole.
  • Page 19 www.BuilderDepot.com http://www.advancedactuators.com 3) Attach rubber gasket onto the inside unit. 4) Plug the wire set (**making sure black marker is on top of the connector head, the two black marks should be lined up) into plug on the inside unit. Be sure that wire set is fully plugged and seated well.
  • Page 20 www.BuilderDepot.com http://www.advancedactuators.com 5) Stuff excess wires into the 2 1/8” hole. 6) Install inside unit onto door, making sure that the spring does not fall out when unit is placed upright and onto the spindle. ReliTouch® User Manual...
  • Page 21 www.BuilderDepot.com http://www.advancedactuators.com 7) Affix lock to the door with the three screws that match the thickness of the door (per NOTE in beginning of Section 4). The longer screw is for the top fixing post and the two shorter screws are for the bottom fixing posts.

  • Page 22: Section 5 Power Options

    www.BuilderDepot.com http://www.advancedactuators.com Section 5 Power Options 5.1 AA Batteries 1) Remove battery cover 2) Insert 4 AA batteries into the battery pack located on the inside unit. We recommend Lithium AA batteries for longevity. (1.5v only) 3) When batteries are inserted, two beeps are heard indicating that the lock is ready to program.

  • Page 23: Hardwiring The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 5.2 Hardwiring the ReliTouch RT-201 ® It is possible to hard wire the ReliTouch RT-201 to an external 6 to 12VDC/1.2 amp power supply for constant power. IMPORTANT:  WHEN THE RELITOUCH ® RT-201 IS HARD WIRED, THE AA BATTERIES CAN BE LEFT IN THE BATTERY PACK FOR BACK UP POWER.

  • Page 24: Relitouch Rt-201 Operations Manual

    www.BuilderDepot.com http://www.advancedactuators.com ® ReliTouch RT-201 Operations Manual ***SECURITY WARNING*** ® With no fingerprints or PIN Codes enrolled, the ReliTouch RT-201 will unlock when the # button is pressed on the keypad. It is strongly recommended that an Administrator (User IDs 1 thru 3) DELETE ALL Fingerprints and PIN Codes ®...

  • Page 25: Definitions Of Led

    www.BuilderDepot.com http://www.advancedactuators.com Definitions of LED Red LED – Indicates any unsuccessful fingerprint/PIN verification attempt. Green LED – Indicates any successful fingerprint/PIN verification attempt. ReliTouch® User Manual...

  • Page 26: Section 1 Lock Setup

    www.BuilderDepot.com http://www.advancedactuators.com Section 1 Lock Setup 1.1 Programming buttons on the inside unit 1) The “M” button stands for Menu and is used to enter different menu options and it is also used to save changes made to the ® ReliTouch RT-201.
  • Page 27 www.BuilderDepot.com http://www.advancedactuators.com NOTE: The following LOCK SETUP instructions are assuming ® that there are no fingerprints enrolled in the ReliTouch RT-201. All LOCK SETUP functions can be done prior to enrolling an Administrator fingerprint or PIN code. If changes are being made to the LOCK SETUP (or any other menu options for that matter) after an Administrator fingerprint has been enrolled, then their fingerprint will need to be verified after pressing “M”...

  • Page 28: Setting The Date And Time For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 1.2 Setting the Date and Time for the ReliTouch RT-201 ® Setting up the Date and Time of the ReliTouch RT-201 is critical ® when using the ReliTouch PCMU for programming (and audit trail) ® or the ReliTouch AT Software for audit trail.
  • Page 29 www.BuilderDepot.com http://www.advancedactuators.com 3) Option 1. Date/Time is highlighted. Press “M” 4) The format for the date setup is MM/DD/YYYY. 5) Choose the correct month by using the Up/Down arrows until desired numeric month is chosen and press “M” to save selection ReliTouch®...
  • Page 30 www.BuilderDepot.com http://www.advancedactuators.com 6) Choose the correct day of the month by using the Up/Down arrows until desired numeric day of the month is chosen and press “M” to save selection. 7) Choose the correct year by using the Up/Down arrows until desired numeric year is chosen and press “M”...
  • Page 31 www.BuilderDepot.com http://www.advancedactuators.com 9) Choose the correct hour by using the Up/Down arrows until desired numeric hour is chosen and press “M” to save selection. 10) Choose the correct minute by using the Up/Down arrows until desired numeric minute is chosen and press “M” to save selection 11) Choose the correct second by using the Up/Down arrows until desired numeric second is chosen and press “M”...
  • Page 32 www.BuilderDepot.com http://www.advancedactuators.com 12) Choose the correct day of the week by using the Up/Down arrows until desired day of the week is chosen and press “M” to save selection. 13) Press “M” on Save to save complete Date/Time settings. 14) “Saved” displays on LCD. 15) Press “E”...

  • Page 33: Setting Fingerprint Sensitivity For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 1.3 Setting Fingerprint Sensitivity for the ReliTouch RT-201 NOTE: - Fingerprint sensitivity settings range from 1 to 9. Setting 1 is the most strict setting, meaning that quality of fingerprint and placement of fingerprint need to be almost perfect. Setting 9 is the least stringent setting in regards to fingerprint quality and placement.

  • Page 34: Setting The Matching Mode

    www.BuilderDepot.com http://www.advancedactuators.com 3) Message “Saved” will display. 4) Press “E” to exit. 1.4 Setting the Matching Mode ® There are three choices for how the ReliTouch RT-201 will verify enrolled users for access to unlock the door:  1:1…When this is chosen, all users enrolled at this lock must enter their User ID, then verify their enrolled Fingerprint or PIN Code to successfully unlock the door.
  • Page 35 www.BuilderDepot.com http://www.advancedactuators.com Use the following steps to set up the Matching Mode at the ® ReliTouch RT-201: 1) In the Lock setup menu, scroll down to and highlight option 3. Match Mode and press “M”. 2) Use the up and down arrows to scroll thru the matching modes until the desired mode is reached and press “M”...

  • Page 36: Setting The Lock Mode

    www.BuilderDepot.com http://www.advancedactuators.com 1.5 Setting the Lock Mode There are two choices in the Lock Mode menu:  Auto – Also known as Auto-Lock, when this mode is enabled, ® the ReliTouch RT-201 requires an enrolled fingerprint or PIN Code to be verified to unlock the door. ...
  • Page 37 www.BuilderDepot.com http://www.advancedactuators.com Use the following steps to set up the Lock Mode at the ® ReliTouch RT-201: 1) In the Lock setup menu, scroll down to and highlight option 4. Lock Mode and press “M”. 2) Use the up and down arrows to scroll thru the lock modes until the desired mode is reached and press “M”...

  • Page 38: Setting Up The Lock Id

    www.BuilderDepot.com http://www.advancedactuators.com 1.6 Setting up the Lock ID ® Setting up the Lock ID of the ReliTouch RT-201 is critical when ® using the ReliTouch PCMU for programming (and audit trail) or the ® ReliTouch AT Software for audit trail. ®...

  • Page 39: Deleting All Fingerprints In The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 1.7 Deleting ALL Fingerprints in the ReliTouch RT-201 1) In the Lock setup menu, scroll down to and highlight option 6. Clear FP & PIN and press “M”. 2) To delete all fingerprints, highlight the Clear FP option and press “M”.

  • Page 40: Deleting All Pin Codes In The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 1.8 Deleting ALL PIN Codes in the ReliTouch RT-201 1) In the Lock setup menu, scroll down to and highlight option 6. Clear FP & PIN and press “M”. 2) To delete all PIN Codes, scroll down and highlight the Clear PIN option and press “M”.

  • Page 41: Setting Up Timed Access For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® 1.9 Setting up Timed Access for the ReliTouch RT-201 ® The ReliTouch RT-201 has three TIME MODES that may be chosen for the lock:  ANY TIME…When this is chosen, the specific lock allows for all enrolled Users to have access to unlock the door. The exception to this is if specific Timed Access is set up for individual Users.
  • Page 42 www.BuilderDepot.com http://www.advancedactuators.com  ACC-TIME…This mode allows for timed access to the lock to be created for a specific date range, days of the week and time frame within the days of the week. Acc-Time means Access Time. NOTE: The Time Setting chosen/created for the lock will override any specific Timed Access assigned for a specific User.

  • Page 43: Choosing "Any Time" As The Access Mode For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com 1.10 Choosing “ANY TIME” as the Access mode for the ® ReliTouch RT-201 1) In the Lock setup menu, scroll down to and highlight option 7. Access Time and press “M”. 2) Scroll to “ANYTIME” option and press “M”. 3) Message “Saved”...

  • Page 44: Choosing "Invalid" As The Access Mode For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com 1.11 Choosing “INVALID” as the Access mode for the ® ® ReliTouch RT-201 1) In the Lock setup menu, scroll down to and highlight option 7. Access Time and press “M”. 2) Scroll to “INVALID” option and press “M”. 3) Message “Saved”...

  • Page 45: Choosing And Setting Up "Acc-Time" As The Timed Access Mode For The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com 1.12 Choosing and setting up “ACC-TIME” as the Timed Access ® mode for the ReliTouch RT-201 1) In the Lock setup menu, scroll down to and highlight option 7. Access Time and press “M”. 2) Scroll to “ACC-TIME” option and press “M”. 3) Highlight “Date”, press “M”.
  • Page 46 www.BuilderDepot.com http://www.advancedactuators.com 4) The “From” and “To” Date Range options display. The format for the Date Range settings is MMDDYYYY (from left to right). 5) Use the up and down arrows to choose the appropriate MM, DD and YYYY in each section. When desired numeric value is chosen for each section, press “M”...
  • Page 47 www.BuilderDepot.com http://www.advancedactuators.com  Use the up and down arrows to enter “15” (for the fifteenth day of the month) and press “M”.  Use the up and down arrows to enter “2009” (for the Year) and press “M”.  Use the same steps for the “To” date. ReliTouch®...
  • Page 48 www.BuilderDepot.com http://www.advancedactuators.com 6) Once the Date Range is set up, press “E”. Message “Save?” will display on the LCD. 7) Press “M”. Message “Saved!” will display on the LCD. OR press “E” to exit without saving. 8) Scroll to “Time”, and press “M”. ReliTouch®...
  • Page 49 www.BuilderDepot.com http://www.advancedactuators.com  The format of the time setup is HH:MM and is in MILITARY TIME, meaning that the clock is 24 hours, instead of 12 hours. EX: If the “From” time 11:00 PM, the clock should be set up as 23:00. ...
  • Page 50 www.BuilderDepot.com http://www.advancedactuators.com  Choose the correct “To” hour by using the Up/Down arrows until desired numeric hour is chosen and press “M” to save selection.  Choose the correct “To” minute by using the Up/Down arrows until desired numeric minute is chosen and press “M” to save selection.
  • Page 51 www.BuilderDepot.com http://www.advancedactuators.com  Press “M”, Message “Saved!” will display on the LCD. OR press “E” to exit without saving. 9) Scroll to “Week Days”, and press “M” to set up the Days of the Week access for the RT-201.  Press “M” to choose “Y” (Yes) OR “N” (No) for each day of the week that is highlighted.
  • Page 52 www.BuilderDepot.com http://www.advancedactuators.com ® ® Users will not be able to unlock the ReliTouch RT-201 Only Administrators (User ID 1-3) will have access to unlock ® ® the ReliTouch RT-201  If “N” (No) is chosen for a specific day of the week, then no ®...

  • Page 53: Section 2 Administrator And User Setup

    www.BuilderDepot.com http://www.advancedactuators.com Section 2 Administrator and User Setup NOTES: Fingerprint User IDs 1-3 are Administrators, meaning that they ® have complete access to program the ReliTouch RT-201 and to unlock the door at any time. To access any menu options, after an Administrator fingerprint has been enrolled, the Administrator’s fingerprint will need to be verified after pressing “M”...
  • Page 54 www.BuilderDepot.com http://www.advancedactuators.com Moist fingers and thumbs give better images than dry ones. If on cold, dry days you have difficulty, for example, try moistening your finger or thumb with your breath or a little lotion. Very dry, dirty, fingerprints with cracks going across them or scarred fingers/thumbs are obviously not recommended, since they will obscure the fingerprint.

  • Page 55: Creating, Editing & Deleting User Access

    www.BuilderDepot.com http://www.advancedactuators.com 2.1 Creating, Editing & Deleting User Access 1) Press “M” (lock will display a welcome message, display date and time, display current lock ID, display NO MASTER and display voltage remaining in the batteries).  If an Administrator has already been added to the lock, the Administrator will need to successfully verify their enrolled fingerprint OR registered PIN code (use up and down arrows to choose) after pressing “M”.
  • Page 56 www.BuilderDepot.com http://www.advancedactuators.com 2) Scroll to menu option 2. User Edit. Press “M”. 3) In the ID: field, use the up and down arrows to scroll to the desired User ID and press “M”.  Again, User IDs 1 thru 3 are Administrator (Master) Users that will have access at any time to unlock the door or ®...
  • Page 57 www.BuilderDepot.com http://www.advancedactuators.com 5) Use the down arrow to scroll thru the following options:  1. Add FP – When this option is chosen, fingerprints can be added for the specific User ID.  2. Add PIN –When this option is chosen, a PIN Code can be created, changed or deleted for the specific User ID.
  • Page 58 www.BuilderDepot.com http://www.advancedactuators.com 6) To Add FINGERPRINTS to the specific User ID, highlight section 1. Add FP and press “M”. If no fingerprints have been enrolled for this User ID, then 1N, 2N, 3N will be displayed. A total of 3 fingerprints (from fingers or thumbs) can be enrolled for each User ID.
  • Page 59 www.BuilderDepot.com http://www.advancedactuators.com  Keep finger or thumb on the sensor while it flashes three quick times. KEEP FINGER STILL DURING SCANNING.  If finger/thumb “1” was successfully enrolled, a single short beep will be heard, the LCD will display “Success” and 1N will change to 1Y.
  • Page 60 www.BuilderDepot.com http://www.advancedactuators.com NOTE: If desired, the same finger/thumb can also be used for fingers/thumbs “2” and “3”. This is recommended for Users with poor quality fingerprints. However, different fingers/thumbs can be used for fingers/thumbs 1, 2 &3.  Press the up arrow to highlight 2N and press “M”. ...
  • Page 61 www.BuilderDepot.com http://www.advancedactuators.com  If finger/thumb “2” was successfully enrolled, a single short beep will be heard, the LCD will display “Success” and 2N will change to 2Y. o If unsuccessful, “Failed” will display on the LCD and 2N will not change to 2Y. Repeat the steps above to try again.
  • Page 62 www.BuilderDepot.com http://www.advancedactuators.com  Rest the next (or same) desired finger or thumb on the sensor (outside unit).  Keep finger or thumb on the sensor while it flashes three quick times. KEEP FINGER STILL DURING SCANNING.  If finger/thumb “3” was successfully enrolled, a single short beep will be heard, the LCD will display “Success”...
  • Page 63 www.BuilderDepot.com http://www.advancedactuators.com  When all fingerprints have been successfully enrolled, 1Y, 2Y, 3Y will display. Press “E” to exit back to the specific User IDs’ menu options. 7) To Add or Modify a PIN CODE associated to the specific User ID, scroll down to and highlight section 2.
  • Page 64 www.BuilderDepot.com http://www.advancedactuators.com  PIN Saved message will display (unless same PIN Code already exists for another User ID). A short beep will be heard and you will be returned to Option 2. Add PIN automatically. 9) To Delete a PIN CODE associated to the specific User ID, highlight section 2.3 Pin and press “M”.
  • Page 65 www.BuilderDepot.com http://www.advancedactuators.com  “PIN Cleared” message will display. A short beep will be heard and you will be returned to Option 2. Add PIN automatically 10) To Delete FINGERPRINTS associated to the specific User ID, scroll down to and highlight section 3. Del FP and press “M”. ...
  • Page 66 www.BuilderDepot.com http://www.advancedactuators.com NOTE: Once deletion of fingerprints associated to the specific User ID is complete, fingerprints can be re-enrolled for the specific User ID (follow step 6 above). 10) To set up Timed Access for the Specific User ID, scroll down to and highlight section 4.
  • Page 67 www.BuilderDepot.com http://www.advancedactuators.com NOTE: The Time Setting chosen/created for the lock will override any specific Timed Access assigned for a specific User. For example, if ACC-TIME is chosen for the lock and set to Mon, Wed and Fri 9am to 5pm, Users will only have access to unlock the door during the set days and times, no matter what individual timed access was set for them.
  • Page 68 www.BuilderDepot.com http://www.advancedactuators.com Choosing INVALID as the Access mode for the Specific User ID  Scroll to “INVALID” option and press “M”.  Message “Saved” will display. And you will be returned to menu option 1. Invalid.  Press “E” to return to exit. ReliTouch®...
  • Page 69 www.BuilderDepot.com http://www.advancedactuators.com Choosing and setting up “ACC-TIME” as the Timed Access mode for the Specific User ID  Scroll to “ACC-TIME” option and press “M”.  Highlight “Date”, and press “M”.  The “From” and “To” Date Range options display. The format for the Date Range settings is MMDDYYYY (from left to right).
  • Page 70 www.BuilderDepot.com http://www.advancedactuators.com is chosen for each section, press “M” to move onto the next date value. o Example: Desired “From” date is January 15, 2009. In the “From” section: o Use the up and down arrows to enter “01” (for January) and press M.
  • Page 71 www.BuilderDepot.com http://www.advancedactuators.com o Use the up and down arrows to enter “2009” (for the Year) and press M. o Use the same steps for the “To” date.  Once the Date Range is set up, press “E”. Message “Save?” will display on the LCD. Press “M”. ...
  • Page 72 www.BuilderDepot.com http://www.advancedactuators.com Use the following steps to set up the Time Frame for the Specific User ID:  The format of the time setup is HH:MM and is in MILITARY TIME, meaning that the clock is 24 hours, instead of 12 hours. EX: If the “From” time 11:00 PM, the clock should be set up as 23:00.
  • Page 73 www.BuilderDepot.com http://www.advancedactuators.com  Choose the correct “To” hour by using the Up/Down arrows until desired numeric hour is chosen and press “M” to save selection.  Choose the correct “To” minute by using the Up/Down arrows until desired numeric minute is chosen and press “M” to save selection.
  • Page 74 www.BuilderDepot.com http://www.advancedactuators.com  Once the Time Frame is set up, press “E”. Message “Save?” will display on the LCD. Press “M”.  Message “Saved!” will display. Press “E” to exit without saving. Use the following steps to set up the Days of the Week access for the Specific User ID: ...
  • Page 75 www.BuilderDepot.com http://www.advancedactuators.com  Press “M” button to choose “Y” (Yes) OR “N” (No) for each day of the week that is highlighted.  If “Y” (Yes) is chosen for a specific day of the week, then the ® Specific User ID will have access to unlock the ReliTouch RT-201 with their enrolled fingerprints and/or PIN Code, on that day of the week, during the Date Range and Time Frame that has already been set up.
  • Page 76 www.BuilderDepot.com http://www.advancedactuators.com  When setting for “Saturday (Sat)” is completed, press “E”. Message “Save?” will display on the LCD.  Press “M”. Message “Saved!” will display.  Press “E” to exit, multiple times, until the “Bye” message ® displays and the ReliTouch RT-201 LCD powers off.

  • Page 77: Section 3 Unlocking The Relitouch Rt-201

    www.BuilderDepot.com http://www.advancedactuators.com ® Section 3 Unlocking the ReliTouch RT-201 ® 3.1 Unlocking the ReliTouch RT-201 in 1:N Mode with an enrolled fingerprint 1) Press the # button on the keypad of the outside unit. 2) A single short beep will be heard and the fingerprint sensor will power on.
  • Page 78 www.BuilderDepot.com http://www.advancedactuators.com 4) If fingerprint verification was successful, (two short beeps will be ® heard,) the green LED will flash and the ReliTouch RT-201 will unlock (and remain unlocked for approximately four seconds). If verification of the enrolled fingerprint was not successful on the first attempt, the LED will flash red (no beeps).

  • Page 79: Pin Code

    www.BuilderDepot.com http://www.advancedactuators.com ® 3.2 Unlocking the ReliTouch RT-201 in 1:N Mode with a registered PIN Code 1) Enter the registered PIN Code on the keypad of the outside unit and press **. (star star) 2) If PIN Code verification was successful, two short beeps will be ®...

  • Page 80: Unlocking The Relitouch Rt-201 In 1:1 Mode With An Enrolled Fingerprint

    www.BuilderDepot.com http://www.advancedactuators.com ® 3.3 Unlocking the ReliTouch RT-201 in 1:1 Mode with an enrolled fingerprint 1) Enter the specific User ID on the keypad of the outside unit, followed by pressing the # button. The sensor will power on. 2) After the fingerprint sensor flashes the second time, rest the enrolled fingerprint associated to the User ID on the sensor window to verify.
  • Page 81 www.BuilderDepot.com http://www.advancedactuators.com If verification of the enrolled fingerprint was not successful on the first attempt, the LED will flash red (no beeps). If this happens, re- position the enrolled fingerprint on the sensor. The sensor will try two more times to verify the enrolled fingerprint. If all three attempts fail the LED will flash three times and three short beeps will be heard.

  • Page 82: Pin Code

    www.BuilderDepot.com http://www.advancedactuators.com ® 3.4 Unlocking the ReliTouch RT-201 in 1:1 Mode with a registered PIN Code 1) Enter the specific User ID on the keypad of the outside unit, Press *, Enter the Registered PIN Code and Press **. 2) If PIN Code verification was successful, two short beeps will be ®...

  • Page 83: Unlocking The Relitouch Rt-201 With The Override Keys

    www.BuilderDepot.com http://www.advancedactuators.com ® 3.5 Unlocking the ReliTouch RT-201 with the override keys 1) Insert key into the keyhole. 2) Turn the key in the RIGHT direction to horizontal level (90 degrees). 3) Pull up on the handle ReliTouch® User Manual...
  • Page 84 www.BuilderDepot.com http://www.advancedactuators.com 4) Turn the key back in the opposite direction and pull key out of the keyhole. ReliTouch® User Manual...

  • Page 85: Support And Warranty Information

    If your ReliTouch experiences any mechanical or electronic failure caused by defects in material or manufacturing workmanship during the 2 year warranty period Actuator Systems will repair or replace the unit at Actuator Systems expense including ground shipment expenses. In addition during the first 30 days after purchase Actuator Systems offers a FREE hot-swap of the ReliTouch with a new ReliTouch at Actuator Systems expense.
  • Page 86 www.BuilderDepot.com http://www.advancedactuators.com Your limited warranty is voided if any of the following conditions are true: 1. The ReliTouch is abused or misused a. This includes scratches or other damage that can occur during installation. 2. The ReliTouch is damaged or neglected during installation or use.

  • Page 87: User Enrollment Table

    www.BuilderDepot.com http://www.advancedactuators.com USER ENROLLMENT TABLE: Number Hand (R or L) Finger Used PIN CODE Name ReliTouch® User Manual...
