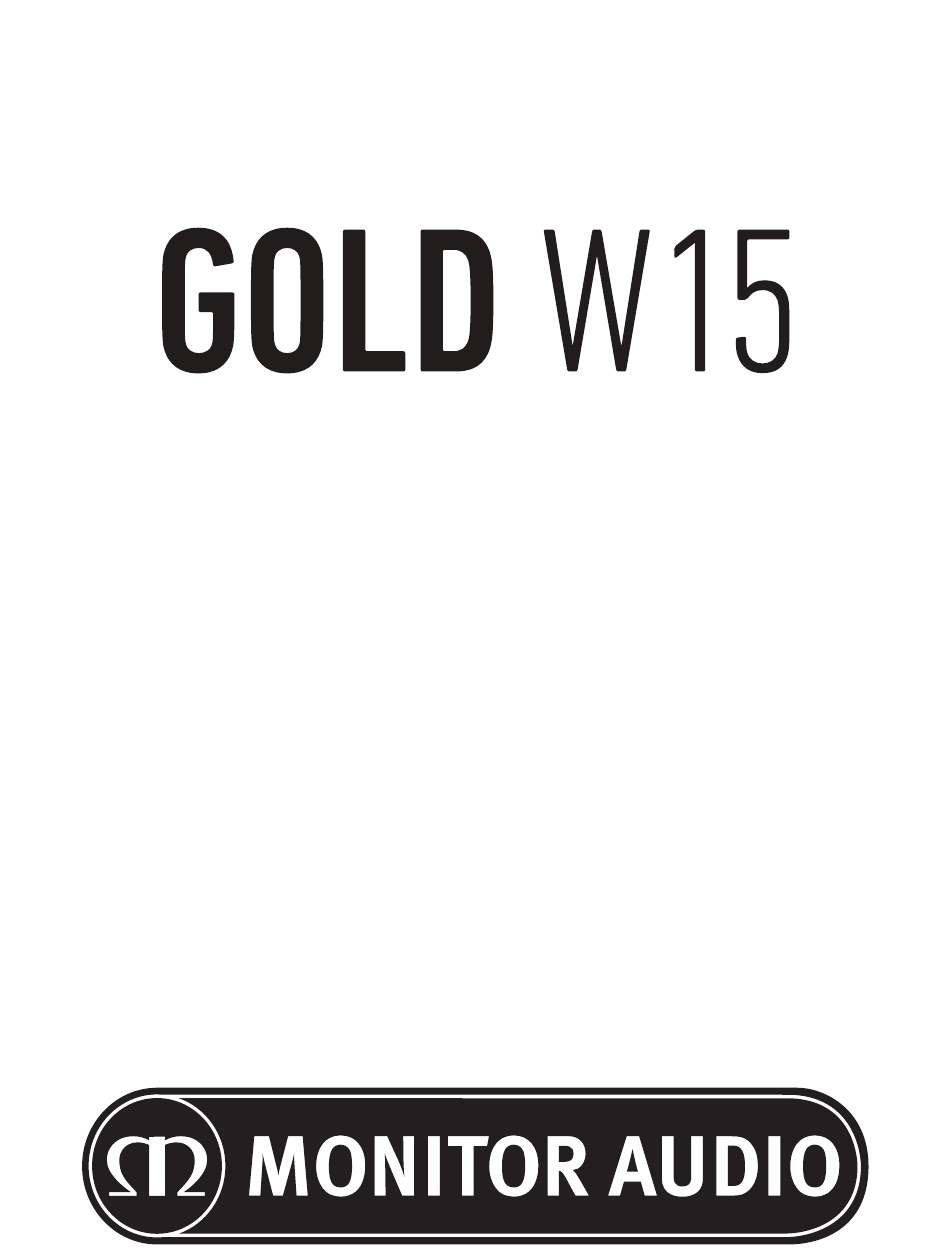

- Page 1 o w n e r s m a n u a l...
-
Page 2: Table Of Contents

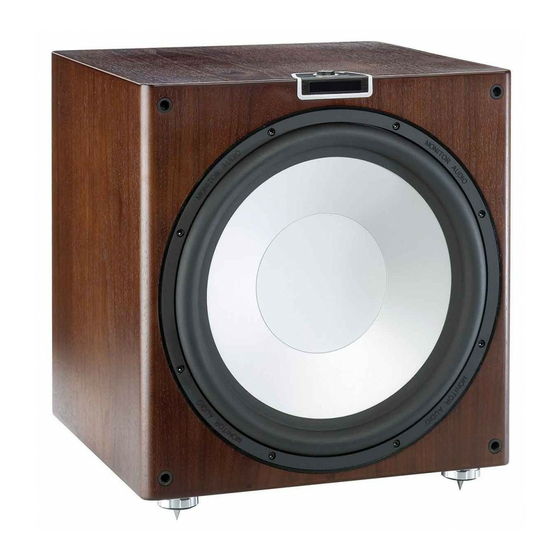

Owner Information Introduction Thank you for your purchase of Monitor Audio Gold W15 subwoofer, which has been designed and constructed using quality systems and materials to provide years of enjoyment, reliability and pride of ownership. This product, as with all of the Gold Series range, is hand crafted from top to bottom using traditional woodworking skills for our sumptuous cabinets, married with the state of the art technology of our renowned drive units. -
Page 3: Gold W15 Features
These three steps are all done in a single measurement from the microphone. With the Gold W15 custom tuned to the room, all that is left to do is sit back and enjoy the new sonic experience. -
Page 4: Unpacking
Positioning The Gold W15 should now be sited in the most suitable position, preferably not directly in the corner of a room as this may comfortably without being under tension. Leave the Gold W15 unplugged until you are happy with it’s location. - Page 5 to avoid interference from other electrical appliances. processor to which it is connected. Please refer to the crossover table on page 9 for further advice on which setting to use. Input between LFE and Stereo input is switched automatically.
- Page 6 Power LED waiting to receive an audio signal, an instruction from the encoder/ remote or a signal from the 12v trigger. If it is green, Factory preset to suit the voltage of the country of origin. This should not be adjusted. Mains Power Switch 10.
-
Page 7: Remote Control
Decreases volume and when in the menu system, adjusts the selected option. Manually turns the Gold W15 on , out of stand by mode, or puts it into stand by mode. This does not function when Auto on is selected. -
Page 8: Set Up
Do not be afraid to you feel these factory settings do not match your environment or tastes. The Gold W15 can be powered up using either the encoder, the remote, or fully automatically. It will go through the following sequence: Press Encoder/ press Power button on remote/ receive signal >... -
Page 9: Initial Settings Using 2 Channel (L & R) Stereo Inputs
LFE should be set in accordance to you main speakers However, experimentation is still advised. Setting the LPF Using the Remote With the Gold W15 powered up and out of standby mode, follow calibration the next steps to set the LPF: Running LEO Press the RIGHT arrow. -
Page 10: Phase
Setting the Phase Using the Control Panel Encoder to set the Gold W15 to when partnering main speakers. With the Gold W15 powered up and out of standby mode, follow the next steps to set the Phase: Crossover Type of Main Speaker Control Setting Press the encoder down. -
Page 11: Leo
Setting the EQ Using the Remote will be displayed With the Gold W15 powered up and out of standby mode, follow display will change to show the current setting, eg. Press the RIGHT arrow 3 times. The display will change... -
Page 12: Night Mode
The display will then change to show the preset number, eg. . Then back to the default display “ . “ With the Gold W15 powered up and out of standby mode, follow the next steps to enable/ disable the auto on feature:... - Page 13 Sealed Cabinet. 25mm M.D.F construction with internal bracing. Sealed amplifier System Format compartment Low Frequency Limit 18Hz Low Pass Filter Alignment Amplifier Classification Equalisation Phase Control Auto Sensing Input Level Requirements voice coil 12v Trigger Input 3.5mm mono jack socket Stereo RCA in/out LFE in/out Connections...
-
Page 14: Owner Information
Owner Information Product Details Model: Gold W15 Product Serial No: Date of Purchase: Dealer Details Dealer Name: Address: Town, Post code, Country: Additional Notes: Monitor monitoraudio.com... - Page 15 Monitor Audio Ltd. Rayleigh, Essex SS6 7XJ England Web: www.monitoraudio.com Designed and Engineered Made in China...
