Integrant atHand Instructions For Use/Assembly Instructions page 7

Overbed table system

Advertisement

Preparing for Assembly
Keep the main box and unit lying flat while performing these steps.

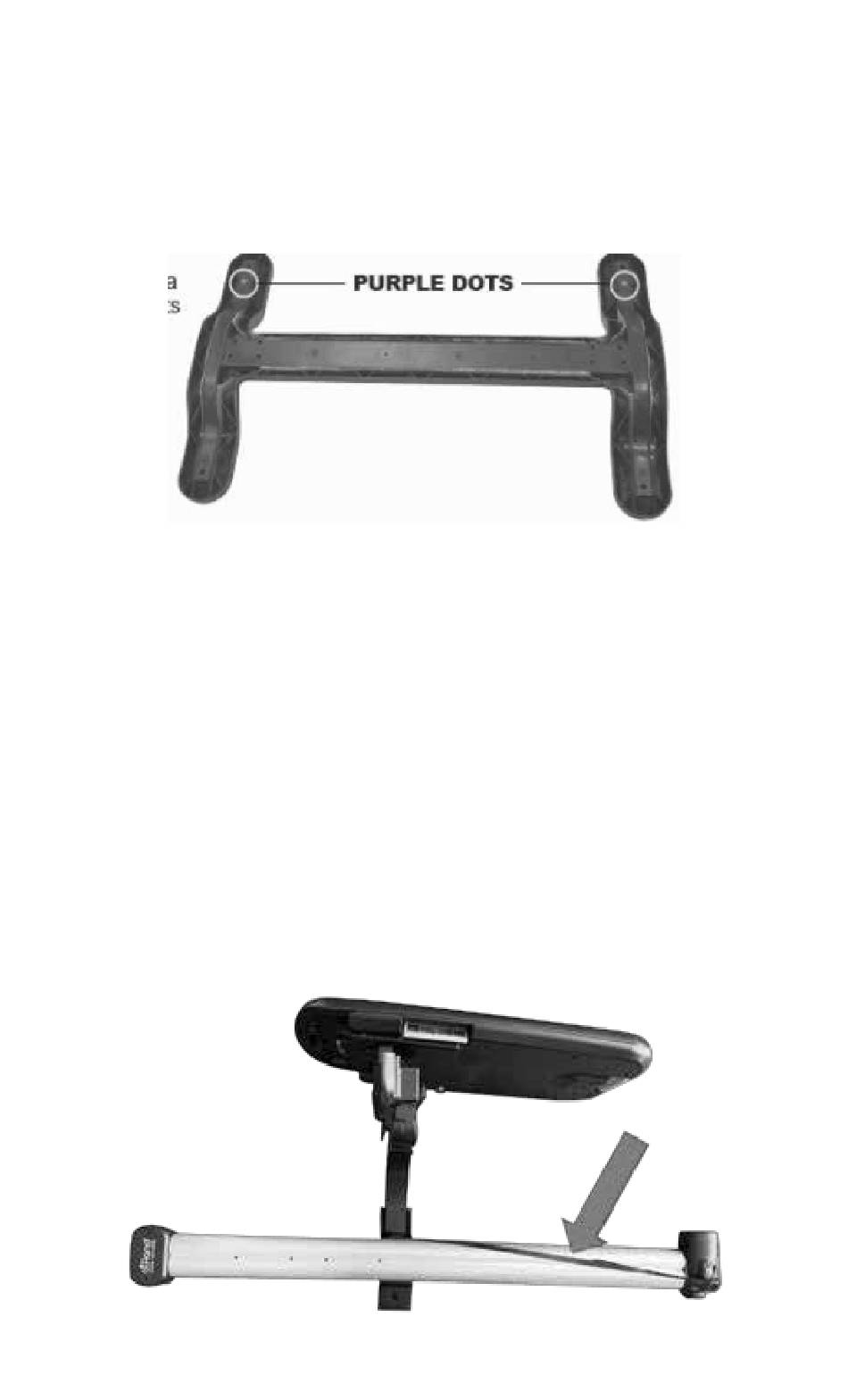

1. Remove the base from the box and padding. Place it face down
on a hard, flat surface. Purple dots should be visible.
2. Remove all inner boxes.
3. Open the smaller of the two brown boxes to find the casters.
4. Push locking casters straight down into the holes on the ends
marked with purple dots.
5. Push non-locking casters straight down into the holes on the
opposite ends.
If insertion is difficult, make sure the rings on the caster stems
are centered on the stem.
6. Ensure that the strap holding down the tray table is intact and
remove the spine/tray table assembly from the box and lay it
down flat.
7
