User Interface

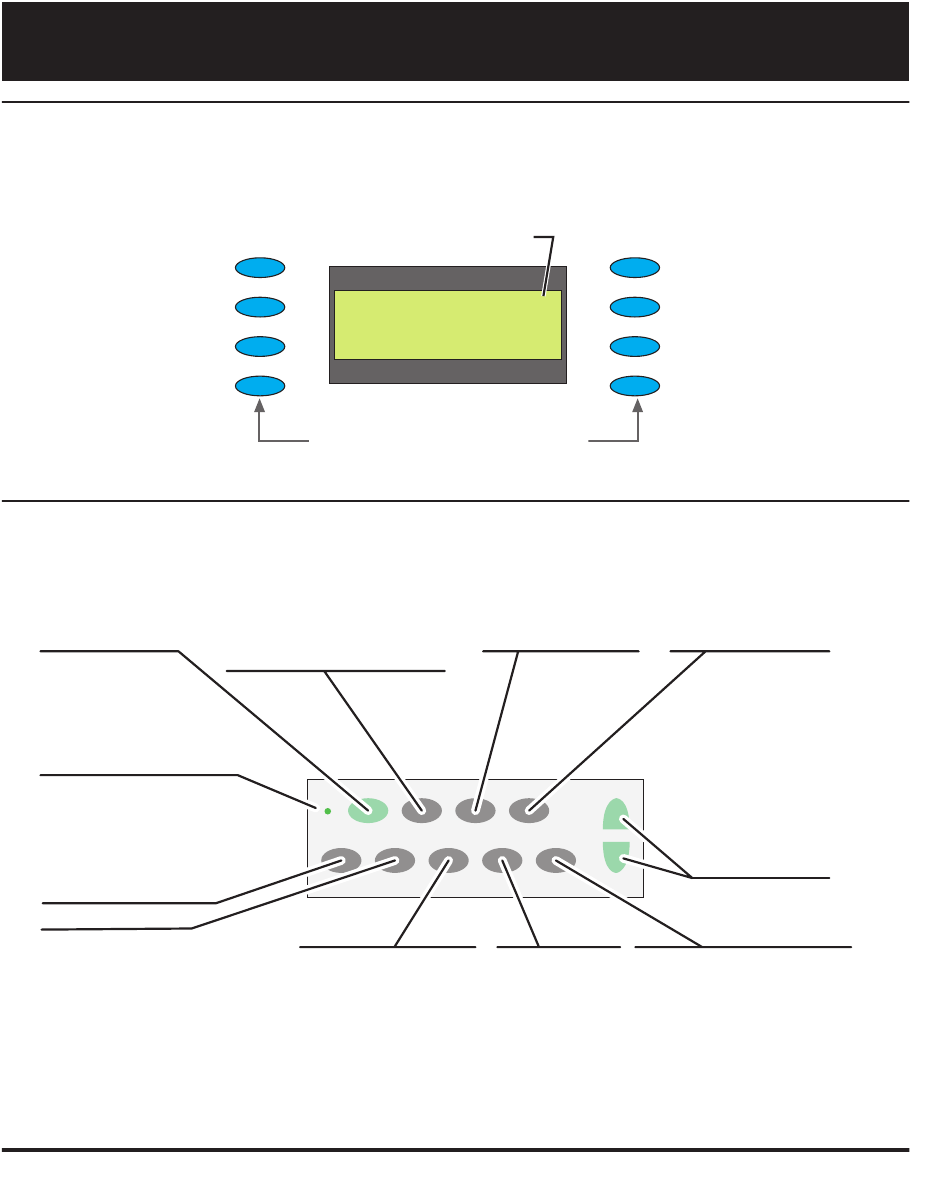

LCD Display
The LCD window displays messages and menu options.
Item 1
Item 2
Item 3
Item 4
Function Buttons
ON/OFF
Toggle generator
power on and off
CHARGE
External power
source (charger)
connected when lit
GATING
Menu for gating video
and sync compontents
on and off
BACKLIGHT
Toggle LCD backlight on
and off. Goes out 20
seconds after any button
press on batteries. Stays on
when using external power
4 Model 700, 701 Quick Start Guide
Asterisk indicates active
_ I t e m _ 1
_ I t e m _ 2
_ I t e m _ 3
_ I t e m _ 3
Buttons activate items in current
menu list. Use +/– buttons below
to scroll menu screens when
more than 8 items available.
FORMAT
Menu of available video
formats (set-ups) of the
selected signal type.
ON/OFF FORMAT
CHARGE
GATING BACKLIGHT
SIGNAL TYPE
Menu for which
format types are
shown by FORMAT
button
menu item.
_ _ _ _ _ _ I t e m _ 5 *
_ _ _ _ _ _ I t e m _ 6
_ _ _ _ _ _ I t e m _ 7
_ _ _ _ _ _ I t e m _ 8
Menu of available
test images.
IMAGE TEST
SIGNAL LEARN
TYPE MONITOR
OPTIONS
OPTIONS
Menu of
generator’s
configuration
options.
Item 5
Item 6
Item 7
Item 8
TEST
Menu of available
testing modes.
+ / -
Page through
menu screens
when more
than 8 items
available
LEARN MONITOR
Obtain EDID data from
unit under test via DDC
connection.
