Before you begin

The time required to install your AT&T MetroCell device
varies with local circumstances; allow 1-2 hours for a
simple installation. Once the device is installed and system
activation is initiated via the MetroCell website, it will take
up to another 2 hours for your MetroCell to be ready for use.
To install AT&T MetroCell, you will need:
• A central point where you can attach the access point to
an interior wall or column. This location should be:
- Within 25 feet of an exterior window, glass wall or
door (to receive GPS signals) , and preferably no
closer than 15 feet in order to minimize propagation
of the signal into areas served by the public network.
A 70-foot extension is available - ask your AT&T
representative to order one for you if needed.
- At least 2 feet away from metal obstructions,
microwave ovens, cordless phones, fans, motors, and
fluorescent lighting in order to avoid interference
with the radio signal.
- At least 1 foot away from any work station or place
where people may gather in order to avoid excessive
exposure to radio frequency emissions.
- A substantial distance from any other small cell
(MetroCell, MicroCell, or repeater) to avoid radio
wave interference – see Appendix C.
• An available Ethernet port on a router or switch with
sufficient available bandwidth to support the traffic
that will be carried over the AT&T MetroCell
(see Appendix B for bandwidth guidelines).
• An AT&T Premier user ID and password.
If you do not already have a Premier username and
password, please go to the following website for
information on how to obtain these credentials:
https://www.wireless.att.com/businesscenter/
premier/get-started-premier.jsp
• Some basic tools and hardware (drill, hammer, screw
driver, screws, wall anchors, cable fasteners)

What's in the kit

Examine the contents of your MetroCell kit. If you notice
any damage, immediately notify the carrier that delivered
the unit and contact your AT&T representative.
The components you should receive are the following:
• Box 1: AT&T MetroCell access point, 10' Ethernet cable,
external GPS antenna with 25 feet of cable
• Box 2: Two omni-directional ("stick") antennas
• Box 3: Power over Ethernet Plus (PoE+) injector kit,
including power cord and user guide
• Box 4: 150' Ethernet cable (shielded Cat5e)
• Box 5: Cosmetic cover with bracket
Note that the typical installation described in these instructons
does not require several other components packed in Box 1: the
48V AC/DC power adaptor, power cord, cable cover and cable
cover bracket, mounting bracket with bolts. Packaging may not be
exactly as described. Also note that a 70-foot extension for the GPS
cable can be obtained through your AT&T representative.

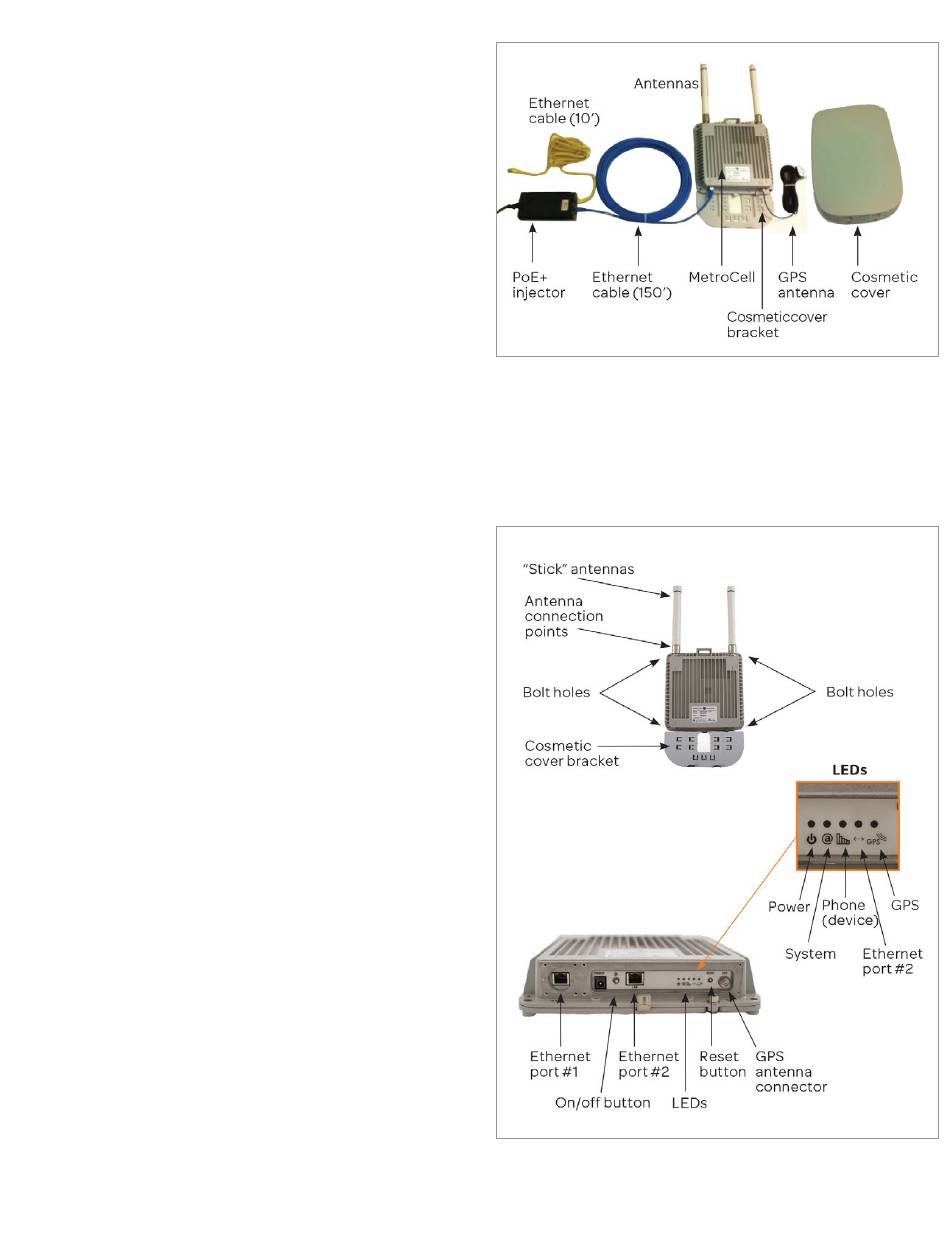

Figure 1 - MetroCell Components
Getting to know AT&T MetroCell
The AT&T MetroCell is an Alcatel-Lucent 9363 Metro Cell
– Indoor. Here's what the device looks like, with names of
parts & features you may need to know:
Figure 2 - MetroCell
