SolidStep® Tread Count
Double Premium
Double Economy
Triple
Quad

Prior to Installation

• Verify that the trailer is on level ground.
NOTE: The door and frame have been omitted from figures for clarity.
• Verify the floor of the trailer has sufficient backing material for securing the SolidStep®.

Installation

Place Assembly Inside Doorframe

1. With the step extended in the down position, place the SolidStep® assembly inside the doorframe.
NOTE: Make sure the step threshold plate is placed firmly against the outside of the door threshold
(Fig. 1B). If not positioned flush against the outside of the door threshold, the step assembly could
prevent the door from closing.
2.
Verify with a tape measure that the assembly is centered in the doorframe.
3.
Remove the two plastic caps from the alignment cover holes on the mounting plate (Fig. 1A).
Do not overtighten the bolts. Overtightening the bolts may damage the threads in the sheet metal or
4. With the step assembly still in the extended position, install two fasteners, either #10 - 1
screws (wood floor) or #10 - 1
two access holes (Fig. 1A) located in the top of the mounting plate.
5.
Once the two fasteners are inserted, carefully lift the step assembly into the upright, stored position.
If the latching mechanism doesn't engage, it will need to be adjusted to operate properly. Have one
person hold the step assembly from inside the trailer. Go to Adjust Transport Lock section.
Rev: 07.18.18
Part #
676460, 690836, 690837, 690838
688043, 690833, 690834, 690835
693808, 693809, 693810, 693811
693802, 693803, 693804, 693805
cause the bolt heads to break off.
1/2"
self-tapping screws (laminate floor), into the mounting plate via the

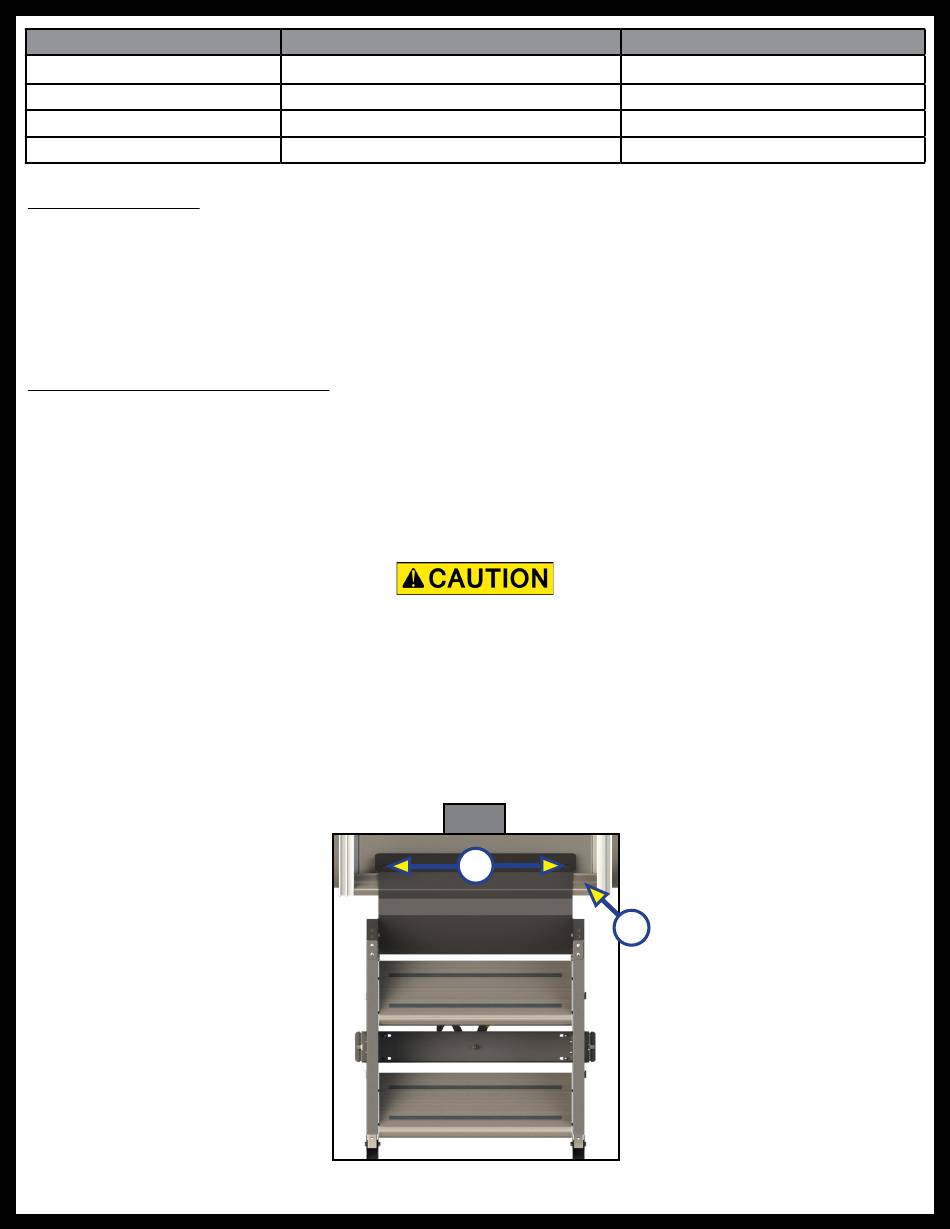

Fig. 1
A
Page 3
Floor Height Range (Min-Max)
19" - 28"
22" - 28"
27" - 36"
35" - 44"
1/2"
B
wood
CCD-0001654
