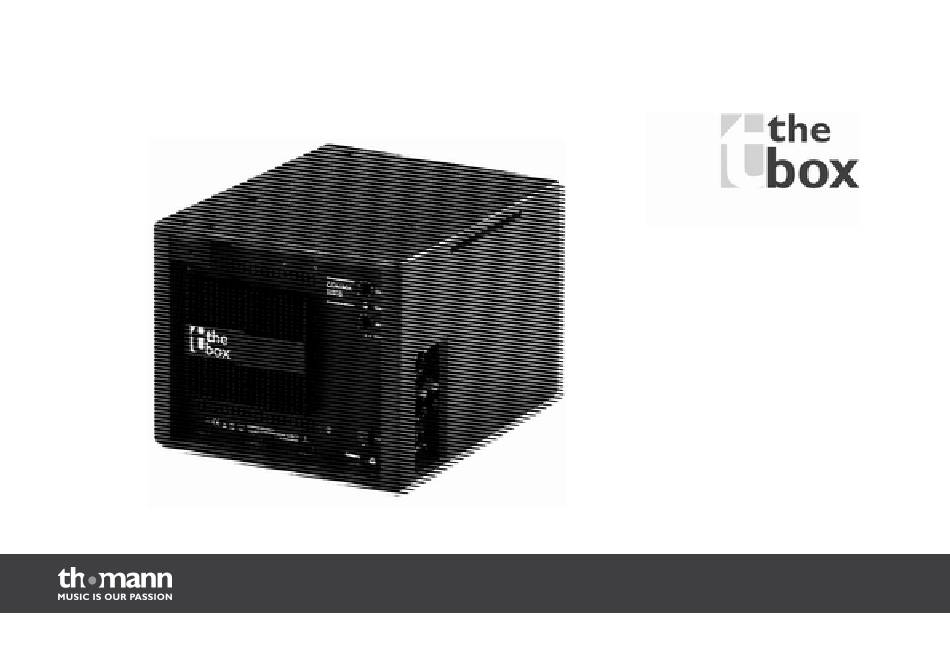

- Page 1 Control 10 Sub active subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0)9546) 9223-0 email: info@thomann.de Internet: www.thomann.de 17.11.2011...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety notes..............................7 Installation and operation........................11 Connectors and controls........................13 Technical data............................19 Protecting the environment......................20 Control 10 Sub... -
Page 4: General Notes
General notes General notes This user manual contains important information on the safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to another user, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a possible dangerous situation that can result in material and environmental damage if it is not avoided. Control 10 Sub...
- Page 6 General notes Warning signs Type of danger Warning – high-voltage. Warning – suspended load. Warning – danger zone. active subwoofer...
-
Page 7: Safety Notes
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Control 10 Sub... - Page 8 Safety notes DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 9 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Control 10 Sub...
- Page 10 Safety notes NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
-
Page 11: Installation And Operation
Always secure the device with a secondary safety attachment, such as a safety cable or a safety chain. XLR connectors for signal inputs Balanced combo XLR/¼-inch connectors are used for the signal inputs. The figure and the and outputs table show the XLR pin assignment. Control 10 Sub... - Page 12 Installation and operation Ground Signal (+) Signal (–) Jack plug for signal inputs The figure and the table show the pin assignment of the ¼-inch (6.35-mm) monaural jack plug. Signal Ground active subwoofer...
-
Page 13: Connectors And Controls
Connectors and controls Connectors and controls Front panel Control 10 Sub... - Page 14 Connectors and controls active subwoofer...
- Page 15 4 ‘SUB PHASE’ switch. Shifts the phase of the subwoofer signal by 180°. This helps to prevent unwanted destructive acoustic interference in combination with other loudspeakers. 5 ‘MAIN LEVEL’ control. Adjusts the master volume (built-in subwoofer and connected external loudspeakers). 6 Thread for flying bracket 7 Ground connection Control 10 Sub...
- Page 16 Connectors and controls Rear panel active subwoofer...
- Page 17 Connectors and controls Control 10 Sub...
- Page 18 Connectors and controls 8 Ground connection 9 Plug for mains cable with fuse holder 10, 11 Terminal connections and 4-mm banana jacks for a pair of external, passive loudspeakers 12 Combo XLR/¼-inch connectors for signal inputs active subwoofer...
-
Page 19: Technical Data
3.15 A / 250 V, slow, 5 mm × 20 mm Dimensions (W × D × H) 505 mm × 423 mm × 345 mm (19.88 in. × 16.65 in.× 13.58 in.) Weight 21 kg (46.29 lbs) Control 10 Sub... -
Page 20: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose these materials with your normal household waste, but make sure that they are fed to a recovery. - Page 21 Notes Control 10 Sub...
- Page 22 Notes active subwoofer...
- Page 24 Musikhaus Thomann e.K. · Treppendorf 30 · 96138 Burgebrach · Germany · www.thomann.de...
