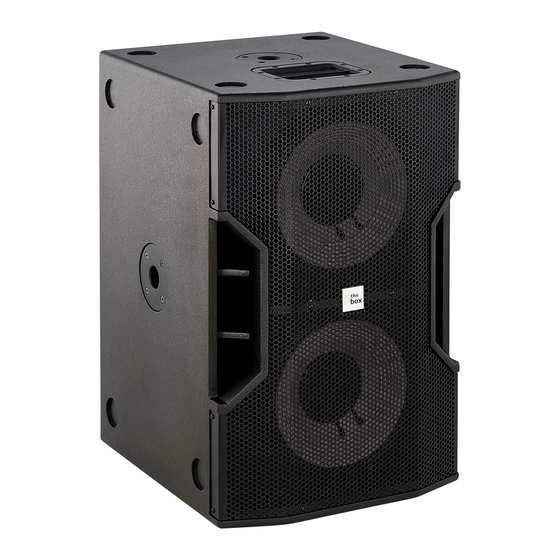

- Page 1 Pyrit 212 Sub A active subwoofer user manual...
- Page 2 Musikhaus Thomann e.K. Treppendorf 30 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 20.11.2014, ID: 299664...
-
Page 3: Table Of Contents
Table of contents Table of contents General notes............................... 4 Safety instructions............................. 7 Features............................... 12 Installation..............................13 4.1 Tips on handling speakers......................14 4.2 Pin assignment..........................15 Connections and operating elements................... 17 Technical specifications........................20 Protecting the environment......................21 Pyrit 212 Sub A... -
Page 4: General Notes
General notes General notes This user manual contains important information on safe operation of the device. Read and follow all safety notes and all instructions. Save this manual for future reference. Make sure that it is available to all persons using this device. If you sell the device to other users, be sure that they also receive this manual. - Page 5 NOTICE! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in material and environmental damage if it is not avoided. Warning signs Type of danger Warning – high-voltage. Pyrit 212 Sub A...
- Page 6 General notes Warning signs Type of danger Warning – danger zone. active subwoofer...
-
Page 7: Safety Instructions
Choking hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Pyrit 212 Sub A... - Page 8 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 9 If this is not possible, keep a greater distance or use suffi‐ cient ear protectors. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. Pyrit 212 Sub A...
- Page 10 Safety instructions NOTICE! Risk of fire Do not cover the device nor any ventilation slots. Do not place the device near any direct heat source. Keep the device away from naked flames. NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture.
- Page 11 Failure to do so could result in damage to the device and possibly injure the user. Unplug the device before electrical storms occur and when it is unused for long periods of time to reduce the risk of electric shock or fire. Pyrit 212 Sub A...
-
Page 12: Features
Features Features Special features of the device: Class-D amplifier Integrated sound processor (DSP) with 3 modes, designed for use together with matching tops with midrange speaker and tweeter (T10a, T12a or T15a). Connections: XLR / 1/4" combo socket for signal input, XLR chassis plug for signal output Each one pole mount flange (36mm) on top and right side of the housing Two carrying handles Black textured coating... -
Page 13: Installation
Establish all connections as long as the unit is switched off. Use the shortest possible high- quality cables for all connections. CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. Pyrit 212 Sub A... -
Page 14: Tips On Handling Speakers
Installation NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field. 4.1 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. -
Page 15: Pin Assignment
XLR connections for signal in XLR chassis sockets serve as signal inputs, XLR chassis plugs serve as signal outputs. Drawing and outputs and table indicate the XLR pin assignment. Balanced wiring: Ground, shielding Positive signal (+) Negative signal (–) Pyrit 212 Sub A... - Page 16 Installation 1/4" phone sockets for signal Balanced wiring (TRS plug): inputs 1 (Tip) Positive signal (+) 2 (Ring) Negative signal (–) 3 (Sleeve) Ground, shielding active subwoofer...
-
Page 17: Connections And Operating Elements
Connections and operating elements Connections and operating elements Pyrit 212 Sub A... - Page 18 Connections and operating elements 1 MODE Slide switch for selecting the operating mode of the integrated sound processor: T10a, T12a, T15a. Use this switch to adjust the sound characteristics according to the used top (midrange and tweeter). LEDs indicate the selected operating mode. Switch the device off before changing the operating mode to avoid any damages.
- Page 19 If the fuse blows you have to replace it by a new one with same specifications. Before, you must disconnect the unit from the mains power. 10 POWER ON/OFF Use this mains switch to turn the device on or off. Pyrit 212 Sub A...
-
Page 20: Technical Specifications
Technical specifications Technical specifications Speakers 2 × 12" woofer (4" voice coil) Inputs XLR / 1/4" combo sockets (balanced) Input impedance ≥ 20 kΩ Outputs XLR chassis plug Frequency response 31.5 Hz … 120 Hz (–3 dB) Power handling 1000 W (RMS) / 4000 W (PEAK) Sound pressure level 132 dB / 1 m (max.) Sensitivity... -
Page 21: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Pyrit 212 Sub A... - Page 22 Notes active subwoofer...
