- Page 1 TL 110 active subwoofer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 17.10.2019, ID: 452287...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 14 Installation..............................15 4.1 Mounting variants..........................17 4.2 Tips on handling speakers......................22 Connections and operating elements................... -
Page 4: General Information
Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. active subwoofer... -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is designed for sound reinforcement. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be assumed for damages resulting from improper use. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. Do not use the device if covers, protectors or optical components are missing or damaged.
- Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specified in the chapter ‘Technical specifications’...
- Page 12 Safety instructions NOTICE! Possible staining The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate or PVC floor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad floor protectors or a carpet.
- Page 13 Safety instructions NOTICE! Possible damage due to installation of a wrong fuse The use of different types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used. TL 110...
-
Page 14: Features

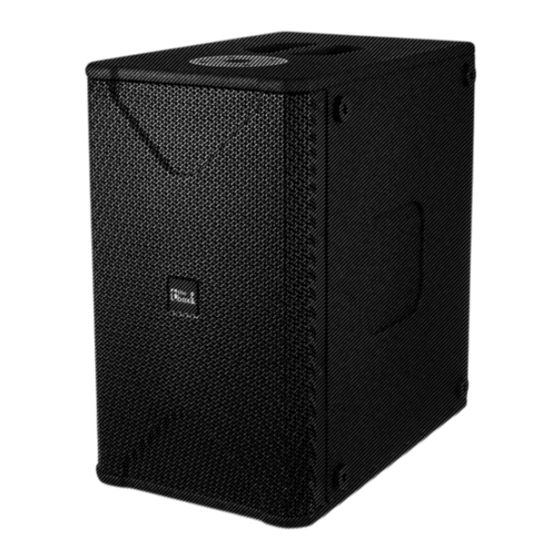

Features Features Special features of the device: Active subwoofer with DSP Inputs: 1 × XLR combo socket Outputs: 2 × XLR chassis socket, 1 × Speaker Twist 10" woofer Built-in limiter circuit Speaker flange 25 mm Connection of top units and bass possible via TL click system active subwoofer... -
Page 15: Installation
Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. - Page 16 Installation CAUTION! Risk of injury due to heavy weight Due to the heavy weight of the device, at least two persons are required for trans‐ port and installation. NOTICE! Possible property damage by magnetic fields Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate distance to devices that can be adversely affected or damaged by an external magnetic field.
-
Page 17: Mounting Variants
TL click system. The following mounting variants are possible: 1 × the box pro TL 110, 1 × the box pro TL 63, 1 × the box pro TL Pole 1 × the box pro TL 110, 2 × the box pro TL 63, 1 × the box pro TL Pole 1 ×... - Page 18 Installation Connecting the subwoofer directly to the column speaker Activate the positioner by pressing the release button on the head of the column speaker. Release the protective cap on top of the column speaker by turning the lever. Remove the protective cap on top of the column speaker. Remove the protective cap from the side of the subwoofer.
- Page 19 Installation Place the column speaker on the subwoofer. Make sure that the connector sockets are positioned exactly on top of each other. ð The positioner will lock in place. The column speaker is connected to the subwoofer. Connecting column loud‐ speakers to each other Activate the positioner by pressing the release button on the head of the column speaker.
- Page 20 Installation Remove the protective cap on top of the column speaker. Repeat steps 1 to 3 for the second column speaker. Place the first column speaker on the second column speaker. Make sure that the con‐ nector sockets are positioned exactly on top of each other. ð...
- Page 21 Installation Activate the positioner by pressing the release button on the head of the column speaker. Release the protective cap on top of the column speaker by turning the lever. Remove the protective cap on top of the column speaker. Remove the protective cap from the side of the subwoofer.
-
Page 22: Tips On Handling Speakers
Installation 4.2 Tips on handling speakers We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐ ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound will be evenly spread with maximum range throughout the audience area. -
Page 23: Connections And Operating Elements
Connections and operating elements Connections and operating elements Rear panel TL 110... - Page 24 Connections and operating elements 1 [DSP SELECTOR] DSP selector switch to select mounting variants 1 … 3. The LED of the selected mounting variant lights up. 2 [INPUT] Line input, designed as XLR combo socket. 3 [VOLUME] Rotary volume control 4 [LINK OUTPUT] Signal output for connection to another active bass module, designed as 3-pin XLR socket.
- Page 25 Connections and operating elements 7 [BASS GAIN] Increases or decreases the bass level in relation to the overall signal in the range of –12 dB … +6 dB. 8 [TO NEXT TL 110S] Output socket for connection to another bass module, designed as 3-pin XLR socket. 9 Plug for mains cable with fuse holder 10 Speaker Twist chassis connector for connecting a column speaker 11 Mains voltage selector...
-
Page 26: Technical Specifications
Technical specifications Technical specifications Speaker 1 × 10" woofer Input connections Voltage supply IEC chassis plug C14 Line in 1 × XLR combo socket Output connections Connection of additional sub‐ 1 × XLR chassis socket, 3-pin woofers Line Out 1 × XLR chassis socket, 3-pin Connection mid-range speaker/ 1 ×... - Page 27 Technical specifications Sound pressure level (SPL), max. 115 dB Supply voltage AC 100/230 V 50/60 Hz Fuse 230 V: 5 mm × 20 mm, 3,15 A, 250 V, slow-blow 110 V: 5 mm × 20 mm, 6,3 A, 250 V, slow-blow Mounting options Speaker flange 25 mm Dimensions (W ×...
- Page 28 Technical specifications Further information Design Bandpass filter Truss-capable Stand mounting Casters Built-in mixer Housing colour Black Housing material Multilayer plywood active subwoofer...
-
Page 29: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 30 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TS phone plug (mono, unbalanced) Signal Ground, shielding 1/4"...
- Page 31 Plug and connection assignment XLR plug (balanced) Ground, shielding Signal (in phase, +) Signal (out of phase, –) Shielding on plug housing (option) Speaker Twist chassis connector 1, + Signal 1 (in phase) 1, – Signal 1 (out of phase) 2, + Signal 2 (in phase) 2, –...
-
Page 32: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 33 Notes TL 110...
- Page 34 Notes active subwoofer...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
