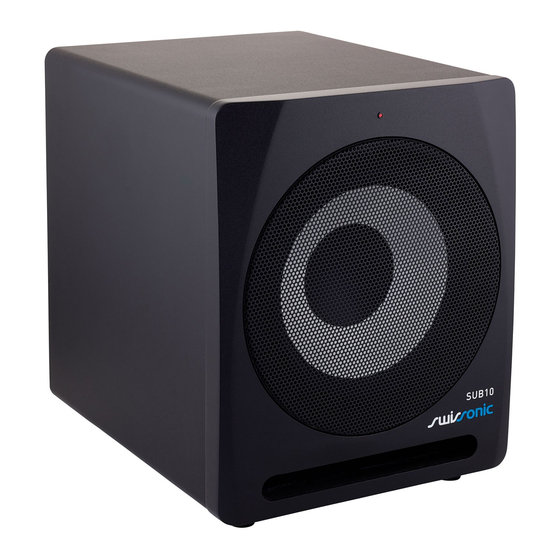

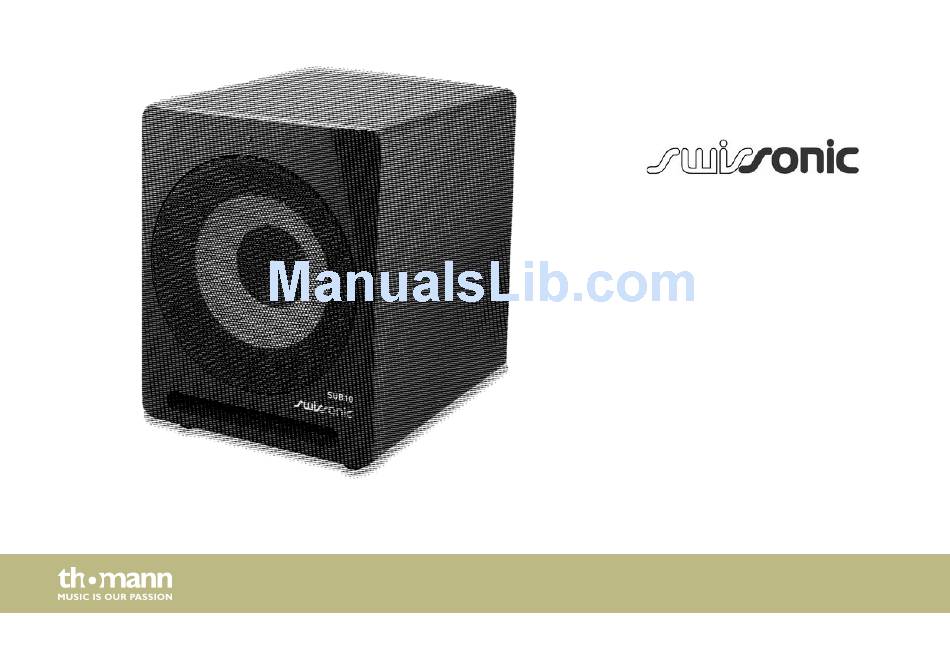

- Page 1 SUB10 active subwoofer user manual...
- Page 2 Musikhaus Thomann Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 E-mail: info@thomann.de Internet: www.thomann.de 11.08.2015, ID: 350078...
-
Page 3: Table Of Contents
Table of contents Table of contents General information..........................4 1.1 Further information........................... 5 1.2 Notational conventions........................6 1.3 Symbols and signal words....................... 6 Safety instructions............................. 8 Features............................... 12 Installation..............................13 Connections and operating elements................... 14 Technical specifications........................18 Plug and connection assignment....................19 Troubleshooting............................ -
Page 4: General Information
General information General information This manual contains important instructions for the safe operation of the unit. Read and follow the safety instructions and all other instructions. Keep the manual for future reference. Make sure that it is available to all those using the device. If you sell the unit please make sure that the buyer also receives this manual. -
Page 5: Further Information
General information 1.1 Further information On our website (www.thomann.de) you will find lots of further information and details on the following points: Download This manual is also available as PDF file for you to download. Use the search function in the electronic version to find the topics of Keyword search interest for you quickly. -
Page 6: Notational Conventions
General information 1.2 Notational conventions This manual uses the following notational conventions: Letterings The letterings for connectors and controls are marked by square brackets and italics. Examples: [VOLUME] control, [Mono] button. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. - Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. CAUTION! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in minor injury if it is not avoided.
-
Page 8: Safety Instructions
Safety instructions Safety instructions Intended use This device is primarily designed for monitoring during audio recording and mixing in the studio. Use the device only as described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or prop‐ erty damage. - Page 9 Safety instructions DANGER! Electric shock caused by high voltages inside Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts inside. DANGER! Electric shock caused by short-circuit Always use proper ready-made insulated mains cabling (power cord) with a pro‐ tective contact plug.
- Page 10 Safety instructions CAUTION! Possible hearing damage The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience ringing in your ears or hearing impairment.
- Page 11 Safety instructions NOTICE! Operating conditions This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and strong vibrations. NOTICE! Power supply Before connecting the device, ensure that the input voltage (AC outlet) matches the voltage rating of the device and that the AC outlet is protected by a residual current circuit breaker.
-
Page 12: Features
Features Features Special features of the device: 10" woofer XLR and 1/4" phone inputs 1/4" phone outputs for external active speakers Class AB amplifier Low-pass filter with adjustable crossover frequency Housing made of vinyl-coated MDF Protection circuits against radio interference, over temperature, on / off switching noise and to limit output current Standby function active subwoofer... -
Page 13: Installation
Installation Installation Unpack and carefully check that there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the device against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively. -
Page 14: Connections And Operating Elements
Connections and operating elements Connections and operating elements Control LED on the front panel If the speaker box receives no signal for 10 to 15 minutes, it switches to standby mode. The control LED on the front panel then lights red. As soon as the speaker box receives a signal, it switches back to normal mode and the LED will turn blue. - Page 15 Connections and operating elements Rear panel SUB10...
- Page 16 Connections and operating elements 1 IEC chassis plug with fuse holder Connection for the power supply. If the fuse blows, replace it with a new fuse of the same type. You must first disconnect the device from the power supply. 2 [POWER] Mains switch.
- Page 17 Connections and operating elements 9 [VOLUME] Volume control. 10 [CROSSOVER] Control for stepless crossover frequency adjustment from 40 Hz to 180 Hz. 11 [PHASE] Phasing switch. Shifts the phase of the subwoofer signal by 180 °, if necessary. This avoids unwanted cancellation effects in combination with other speakers.
-
Page 18: Technical Specifications
Technical specifications Technical specifications Speakers 10" woofer Frequency response 30 Hz … 200 Hz Inputs 2 × 1/4" phone sockets (balanced), 2 × XLR chassis sockets (balanced) Outputs 2 × 1/4" phone sockets (balanced and unbalanced usable) Output power 200 W Maximum sound pressure level in 1 m distance 93 dB Signal-to-noise ratio... -
Page 19: Plug And Connection Assignment
Plug and connection assignment Plug and connection assignment Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment in such a way that a perfect sound experience is ensured. Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short circuit or ‘just’... - Page 20 Plug and connection assignment Since the interference affects both cores equally, by subtracting the phase-shifted signals, the interfering signal is completely neutralized. The result is a pure signal without any noise inter‐ ference. 1/4" TRS phone plug (mono, bal‐ anced) Signal (in phase, +) Signal (out of phase, –) Ground...
-
Page 21: Troubleshooting
Troubleshooting Troubleshooting In the following we list a few common problems that may occur during operation. We give you some suggestions for easy troubleshooting: Symptom Remedy The unit does not work Check the power supply terminal and the position of the power switch. - Page 22 2. Make sure that all audio devices are connected to the same power circuit and thus share the same ground ref‐ erence. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. active subwoofer...
-
Page 23: Protecting The Environment
Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling. - Page 24 Notes active subwoofer...
- Page 25 Notes SUB10...
- Page 26 Notes active subwoofer...
- Page 28 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
