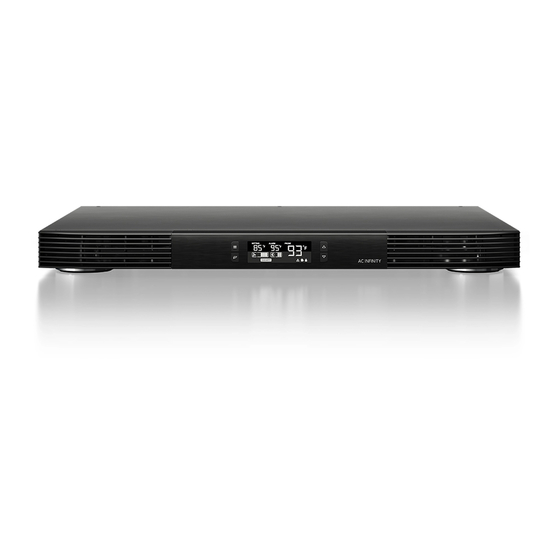

AC Infinity AIRCOM Series User Manual

Component cooling system
Hide thumbs
Table of Contents

Advertisement

Quick Links

AIRCOM SERIES
COMPONENT COOLING SYSTEM
USER MANUAL
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRCOM Series and is the answer not in the manual?

Questions and answers

Related Manuals for AC Infinity AIRCOM Series

Summary of Contents for AC Infinity AIRCOM Series

  • Page 1 AIRCOM SERIES COMPONENT COOLING SYSTEM USER MANUAL USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 MANUAL CODE AC1902X1 PRODUCT MODEL UPC-A AIRCOM S6 AI-ACS6 854759004624 AIRCOM S7 AI-ACS7 854759004631 AIRCOM S8 AI-ACS8 854759004648 AIRCOM S9 AI-ACS9 854759004655 AIRCOM S10 AC-ACS10 819137020320 AIRCOM T8 AI-ACT8 854759004662 AIRCOM T9 AI-ACT9 854759004679 AIRCOM T10 AC-ACT10 819137020313...

  • Page 5: Table Of Contents

    Key Features ................. Page 8 Product Contents ................Page 9 Product Setup ................Page 10 Programming (S6, S7, S8, S9, S10)..........Page 12 Programming (T8, T9, T10)............Page 14 Other AC Infinity Products ............. Page 20 Warranty ..................Page 21...

  • Page 6: Product Requirements

    PRODUCT REQUIREMENTS The AIRCOM series is designed to cool various AV components by accelerating the intake of cool air and outtake of heat. Please make sure that the following requirements are met to ensure the cooling system will work effectively.
  • Page 7 PRODUCT REQUIREMENTS WEIGHT LIMITATIONS AIRCOM S6, and S7 can support a top weight limit of 10 pounds. AIRCOM S8, S9, S10, T8, T9 and T10 can support a top weight limit of 30 pounds. Please make sure that the component does not block the cooling system cooling system’s vents.

  • Page 8: Key Features

    KEY FEATURES STEEL ENCLOSURE NOISE REDUCTION S SERIES CONTROLLER Cold-rolled steel enclosure New and improved noise Features fan speed control enables additional AV reduction using gaskets that and a pre-set temperature components to be stacked absorbs noise caused by the trigger that turns the fans on on top of the cooling system.

  • Page 9: Product Contents

    PRODUCT CONTENTS AIRCOM S6 AI-ACS6 AIRCOM S7 AI-ACS7 COOLING FAN SYSTEM (x1) POWER ADAPTER (x1) AIRCOM S8 AI-ACS8 AIRCOM S9 AI-ACS9 AIRCOM S10 AC-ACS10 COOLING FAN SYSTEM (x1) POWER ADAPTER (x1) AIRCOM T8 AI-ACT8 AIRCOM T9 AI-ACT9 AIRCOM T10 AC-ACT10 COOLING FAN SYSTEM (x1) POWER ADAPTER (x1)

  • Page 10: Product Setup

    PRODUCT SETUP STEP 1 Insert the AC plug of your power adapter into a power outlet. STEP 2 Plug the male connector of the adapter into the female connector located on the backside of the cooling fan system.
  • Page 11 PRODUCT SETUP STEP 3 Place the cooling fan system on top of your AV component. AIRCOM S6, S7, S8, S9, S10 STEP 4 Set up the cooling fan system’s temperature and speed settings on the control module. Refer below to see the model and instructions to follow.
  • Page 12 PROGRAMMING AIRCOM S6 S7 S8 S9 S10 MODE CONTROL BUTTON SPEED CONTROL BUTTON Pressing this button will cycle through Pressing this button changes the speed the modes: ON Mode, AUTO Mode, settings while the fans are running in SMART Mode, OFF Mode. ON, AUTO, and SMART Mode.
  • Page 13 PROGRAMMING AIRCOM S6 S7 S8 S9 S10 MODE CONTROL Pressing the Mode Control button will cycle through the operating modes: ON Mode, AUTO Mode, SMART Mode and OFF Mode. ON MODE - A white light as shown on page 12 indicates if the system is running in ON Mode.
  • Page 14 PROGRAMMING AIRCOM T8 T9 T10 1. MODE BUTTON 2. UP / DOWN BUTTON 3. LEAF BUTTON Cycles through the unit’s The up and down buttons This turns the display off modes: AUTO, SMART, OFF, changes the setting while programs run in ON, ALARM.
  • Page 15 PROGRAMMING AIRCOM T8 T9 T10 QUICK START Press the MODE button until you are on AUTO mode. This mode works like a thermostat. Then press the up and down triangle buttons to change the SETTING temperature on the screen. The PROBE temperature is what the thermal probe is measuring.
  • Page 16 PROGRAMMING AIRCOM T8 T9 T10 OFF MODE In this mode, the fans are powered off regardless of set temperature or set speed. The backlight setting can be increased or decreased by pressing the up or down buttons while in this mode. If the first and the third brightness bar light up and the device is left unattended for 30 seconds, the display will automatically dim its brightness back to the dimmest setting.
  • Page 17 PROGRAMMING AIRCOM T8 T9 T10 ALARM SETTING In this mode, you can set what temperature the system’s alarm will trigger by pressing the up and down triangle buttons. When the PROBE temperature reaches or exceeds the ALARM ALARM temperature, the alarm will activate. The alarm will only activate while the controller is in ON, AUTO, or SMART Mode so please remember to exit ALARM Mode once the alarm has been set.
  • Page 18 PROGRAMMING AIRCOM T8 T9 T10 VARIATION BUFFER In AUTO mode, a buffer is built in to prevent your fan from turning on and off too quickly due to small variations in the environment. When the PROBE temperature exceeds your SETTING temperature, the fan will start running immediately.
  • Page 19 PROGRAMMING AIRCOM T8 T9 T10 ALERT ICONS On the bottom right of the display there are three alert icons. They are visible to show that the system’s functions are being monitored. They will flash when the controller wishes to alert you that a particular function is being triggered.
  • Page 20 AC INFINITY PRODUCTS AIRPLATE SERIES The AIRPLATE series is designed to cool home theater and audio video cabinets. The fans are powered by USB port or power outlets. Includes an inline speed controller and Boost Speed Adapter. The fans can also be temperature controlled with an Advance Thermal Controller (sold separately).

  • Page 21: Warranty

    WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 22 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
