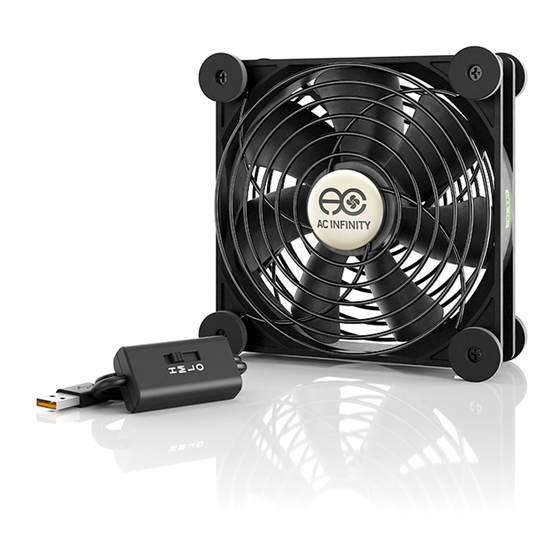

- Page 1 MULTIFAN SERIES COMPONENT USB COOLING FAN USER MANUAL...
- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www. acinfinity.com and click contact for our contact information.
- Page 4 MANUAL CODE MF2007X1 PRODUCT MODEL UPC-A MULTIFAN S1 AI-MPF80A 854759004327 MULTIFAN S2 AI-MPB140A 854759004495 MULTIFAN S3 AI-MPF120A 854759004310 MULTIFAN S4 AI-MPF140A 854759004365 MULTIFAN S5 AI-MPF80A2 854759004334 MULTIFAN S7 AI-MPF120A2 854759004341 MULTIFAN S3-P AI-MPF120P 854759004761 MULTIFAN S7-P AI-MPF120P2 854759004778 MULTIFAN MINI AI-MPF40A 819137020559...
-
Page 5: Manual Index
Product Contents ................Page 9 Silicone Feet .................. Page 10 Powering ..................Page 12 Speed Controller ................Page 13 Adding More Units ................. Page 14 Applications ................... Page 15 ....................Page 16 AC Infinity Products ............... Page 17 Warranty..................Page 18... -
Page 6: Product Requirements
PRODUCT REQUIREMENTS The MULTIFAN series is designed to cool various AV components by accelerating cool air intake or heat exhausting. Make sure the following requirements are met to ensure optimal cooling. FULLY ENCLOSED CABINETS USB cooling fans are ineffective in enclosed cabinet applications. -
Page 7: Key Features
KEY FEATURES ANTI-VIBRATION SILICONE SPEED CONTROLLER USB CONNECTOR Specially designed rubber A speed controller located on Allows the fan unit to be feet helps keep the noise level the cord permits you to powered by a standard USB down when the fan is vibrating adjusts the fan’s speed and port, a common power source against a hard surface. -
Page 8: Product Contents
PRODUCT CONTENTS MULTIFAN S1 AI-MPF80A MULTIFAN S3 AI-MPF120A MULTIFAN S4 AI-MPF140A MULTIFAN S3-P AI-MPF120P Single USB fan with Speed Controlller Model AI-MPF120P contains Turbo Power Adapter MULTIFAN S5 AI-MPF80A2 MULTIFAN S7 AI-MPF120A2 MULTIFAN S7-P AI-MPF120P2 Dual USB Fans with Speed Controller Model AI-MPF120P2 contains Turbo Power Adapter MULTIFAN S2 AI-MPB140A... - Page 9 SILICONE FEET FEET DETACHMENT - FANS The fan’s silicone feet can be detached to save space. Easily unscrew the feet from the fan’s frame. Put the screw back in after to secure the fan guard. FEET DETACHMENT - BLOWERS The silicone feet is necessary to prevent the blower from scratching your electronics.
- Page 10 SILICONE FEET FEET REATTACHMENT - FANS If you want to install the feet back, simply insert the silicone feet through the guard and onto the fan’s screw hole. Turn until you feel the screw tightening but do not overextend or the screw will slip through the rubber feet.
- Page 11 POWERING USB PORT Plug the fan’s USB connector into a standard USB port. Please use a dedicated USB port rated 500 mA or higher, the standard on most electronics. Please note that some electronics will have active power for their USB ports even when the electronic is powered off.
-
Page 12: Speed Controller
SPEED CONTROLLER INLINE 3-SPEED CONTROLLER The speed controller located on the cord allows you to adjust the fan’s speed from off to low, medium, and high. This enables you to set the fan to optimal noise and airflow levels for various environments. - Page 13 ADDING MORE UNITS DAISY CHAINING FANS Up to four fans can be daisy chained to share the same USB port. Up to six fans can be daisy chained to share the same Boost Speed Adapter or Thermostat Fan Controller, both sold separately.
- Page 14 APPLICATIONS TOP EXHAUST - FANS The USB cooling fans can be placed on top of electronics that have vents on the top, such as a DVR receiver to help draw out hot air. Unused rubber feet can be detached to save space. TARGET COOLING - FANS The USB fans can also stand upright to target a specific electronic, component, or area you...
- Page 15 APPLICATIONS REAR EXHAUST - BLOWERS The USB blowers are designed to help exhaust hot air from electronics housed in tight shelves in which a fan may not have adequate space to blow upwards. They should be placed on top of electronics that have ventilations holes on top such as receivers, amplifiers, and other audio video equipment.
- Page 16 MULTIFAN FAQ Can I mount this fan vertically? Yes. The MULTIFAN can be mounted in any orientation, including vertically. Can I flip the fan to create intake or exhaust airflow? Yes, this fan creates intake and exhaust airflow. Simply flip the MULTIFAN around to achieve the desired airflow.
- Page 17 17.5 x 6.1 x 1.3 in. MULTIFAN SERIES The MULTIFAN series fans can be placed on top of AV components and electronics to exhaust hot air economically. It features an inline speed controller and can be powered by an USB port. The fans can also be powered through a power outlet with a Boost Speed Adapter (sold separately).
-
Page 18: Warranty
WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues. - Page 19 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
