- Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity.com and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
- Page 4 MANUAL CODE AP1609X1 MODEL UPC-A AI-CFS80BA 854759004044 AI-APS2 854759004723 AI-CFS120BA 854759004006 AI-CFD80BA 854759004105 AI-CFD120BA 854759004068 AI-APS9 854759004549 AI-APT3 854759004372 AI-APT7 854759004389 AI-APT9 854759004396 AI-ATC 854759004402 AI-TCD4 854759004730...
- Page 5 Page 11 Powering ................Page 14 Connecting More Fans ............. Page 15 S-Series Controller ............Page 16 T-Series Controller Programming ........Page 17 Multizone Controller Programming ........Page 23 Other AC Infinity Products ..........Page 24 Warranty ................Page 25...
-
Page 6: Cabinet Cooling Guide
CABINET COOLING GUIDE INTAKE AND EXHAUST All cabinet fan systems should contain an intake and an exhaust variable, which can either be fans or ventilation holes. This is required to balance the static pressures between the inside and outside of the cabinet. -

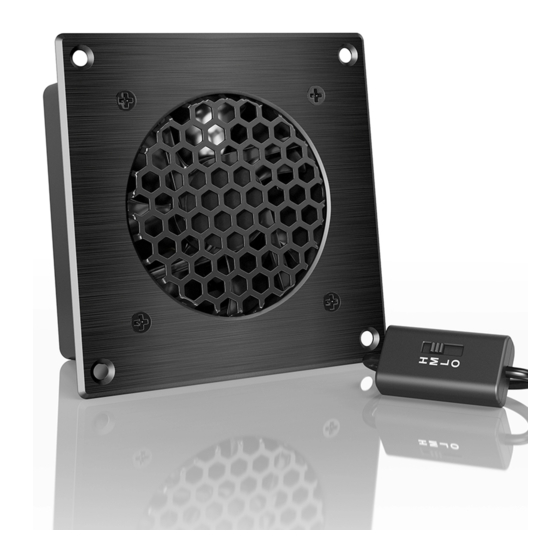

Page 7: Key Features
CNC machined corners. intrusions. LCD display enables temp monitoring, thermal control, speed control, alarms, and SMART energy mode. AC INFINITY DUAL BALL BEARINGS THERMAL PROBE FAN EXPANSION PORTS Fans contain long-life ball The corded sensor probe Each fan unit contains an USB... -
Page 8: Product Contents
S-SERIES CABINET FAN PLASTIC MOUNTING USB POWER UNIT (x1) STENCIL (x1) SCREW SET (x4) ADAPTER (x1) T-SERIES (Includes S-SERIES Fan Units) AC INFINITY THERMAL THERMAL PLASTIC MOUNTING USB POWER CONTROLLER (x1) PROBE (x1) STENCIL (x1) SCREW SET (x4) ADAPTER (x1) - Page 9 CHANGING FAN DIRECTION STEP 1 The fans are currently drawing the air out of the metal plate. To have the fans blow air into the cabinet, use philips screw driver to remove all the screws from the front and backside of the unit. Once completed, you should have a aluminum fan and plastic cover.
- Page 10 CHANGING FAN DIRECTION STEP 3 Position the fan guard on the side of the fan that has the black label. Screw the plastic cover onto the fans with the fan guard in between. Please make sure the fan’s power cord slips through the cord gap on the plastic cover.
-
Page 11: Mounting
MOUNTING STEP 1 Determine where you wish to mount the fan and controller unit (if purchased) on your cabinet or wall. Position the stencils and apply tape to the outer edges. STEP 2 Use a pencil to outline the center square and four outer screw holes on the fan and thermo controller's stencils (if purchased). - Page 12 MOUNTING STEP 3 Remove the plastic stencil and tape. If you prefer machine screws instead of wood screws to mount the fan and controller, use a power drill to create four screw holes. The Recommended drill bit size is 10/64” to 14/64”. STEP 4 Using a saw, cut out the center piece as outlined by your markings from...
- Page 13 MOUNTING STEP 5 Place the fan unit into the newly cut square so that each screw hole is properly aligned. Please make sure the cut center hole is large enough that the plastic backside of the fan does not come into contact with the cabinet.
-
Page 14: Powering
POWERING S-SERIES You can power the fan unit by plugging the unit’s USB male connector into a standard USB port, or plugging the USB male connector into the included power adapter through an outlet. Then plugging the adapter into an outlet. T-SERIES Plug the fan unit’s USB plug into the USB port located on the back of the... -
Page 15: Connecting More Fans
For example AIRPLATE S7 contains two fans and AIRPLATE S9 contains three fans. Fan units connected to the thermal controller will share the same speed and temperature settings. If the fans contain an inline speed controller, please make sure their speed is set on high. AC INFINITY AC INFINITY... -
Page 16: S-Series Controller
S-SERIES CONTROLLER SPEED CONTROLLER The speed controller located on the cord allows you to adjust the fan’s speed from off to low, medium, and high. Any fans that are daisy chained will also have their speed changed. Please make sure that the additional fans have their speed set on high. -
Page 17: T-Series Controller Programming
T-SERIES CONTROLLER PROGRAMMING 1. MODE BUTTON 2. UP / DOWN BUTTON 3. LEAF BUTTON Cycles through the unit’s The up and down buttons This turns the display off modes: AUTO, SMART, change the setting temp, while allowing the OFF, ON, ALARM. Hold alarm temp, display programs to run. - Page 18 T-SERIES CONTROLLER PROGRAMMING QUICK START Press the MODE button until you are on AUTO mode. This mode works like a thermostat. Then press the up and down triangle buttons to change the SETTING temperature on the screen. The PROBE temperature is what the thermal probe is measuring. When the PROBE temperature exceeds the SETTING temperature, the fans will start running.
- Page 19 T-SERIES CONTROLLER PROGRAMMING OFF MODE PROBE SETTING In this mode, the fans are powered off regardless of set temperature or set speed. The backlight setting can be increased or ALARM decreased by pressing the up or down buttons while in this mode. SMART MODE This is the energy saving mode where the fans will change speed depending on the...
- Page 20 T-SERIES CONTROLLER PROGRAMMING ALARM SETTING In this mode, you can set what temperature the system’s alarm will trigger by pressing PROBE SETTING the up and down triangle buttons. When the PROBE temperature reaches or exceeds the ALARM temperature, the alarm will ALARM activate.
- Page 21 T-SERIES CONTROLLER PROGRAMMING VARIATION BUFFER In AUTO mode, a buffer is built in to prevent your fan from turning on and off too quickly due to small variations in the environment. When the PROBE temperature exceeds your SETTING temperature, the fan will start running immediately. However, the PROBE temperature will need to fall below your SETTING temperature by 4°...
- Page 22 T-SERIES CONTROLLER PROGRAMMING ALERT ICONS On the top right of the display there are two alert icons. They are visible to show that the system’s functions are being monitored. They will flash when the controller wishes to alert you that a particular function is being triggered. PROBE SETTING ALARM...
- Page 23 ALARM FANS POWER LABEL AC INFINITY PROGRAMMING MODES The Multizone controller has the same modes as the standard controller. Press the MODE button to cycle through the modes: Auto, Smart, On, Off, and Alarm. Note that each zone will have it’s own settings. Please refer to pages 18 to 22 for programming instructions.
- Page 24 AC INFINITY PRODUCTS AIRCOM SERIES The AIRCOM component fan system cools receivers, amplifiers, and other AV components. S-Series models feature a thermal trigger and speed control. T-Series features a LCD digital display with thermal and speed control, alarm alerts, failure triggers, and backup memory.
-
Page 25: Warranty
If your product becomes defective during that period, AC Infinity will replace your product with a new one or issue you a full refund. The warranty program does not cover abuse or misuse. This includes physical damage, submersion of the product in water, incorrect Installation such as wrong voltage input, and misuse for any reason other than intended purposes. - Page 26 No part of the materials including graphics or logos available in this booklet may be copied, photocopied, reproduced, translated or reduced to any electronic medium or machine readable form, in whole or in part, without specific permission from AC Infinity Inc.
- Page 28 www.acinfinity.com...
