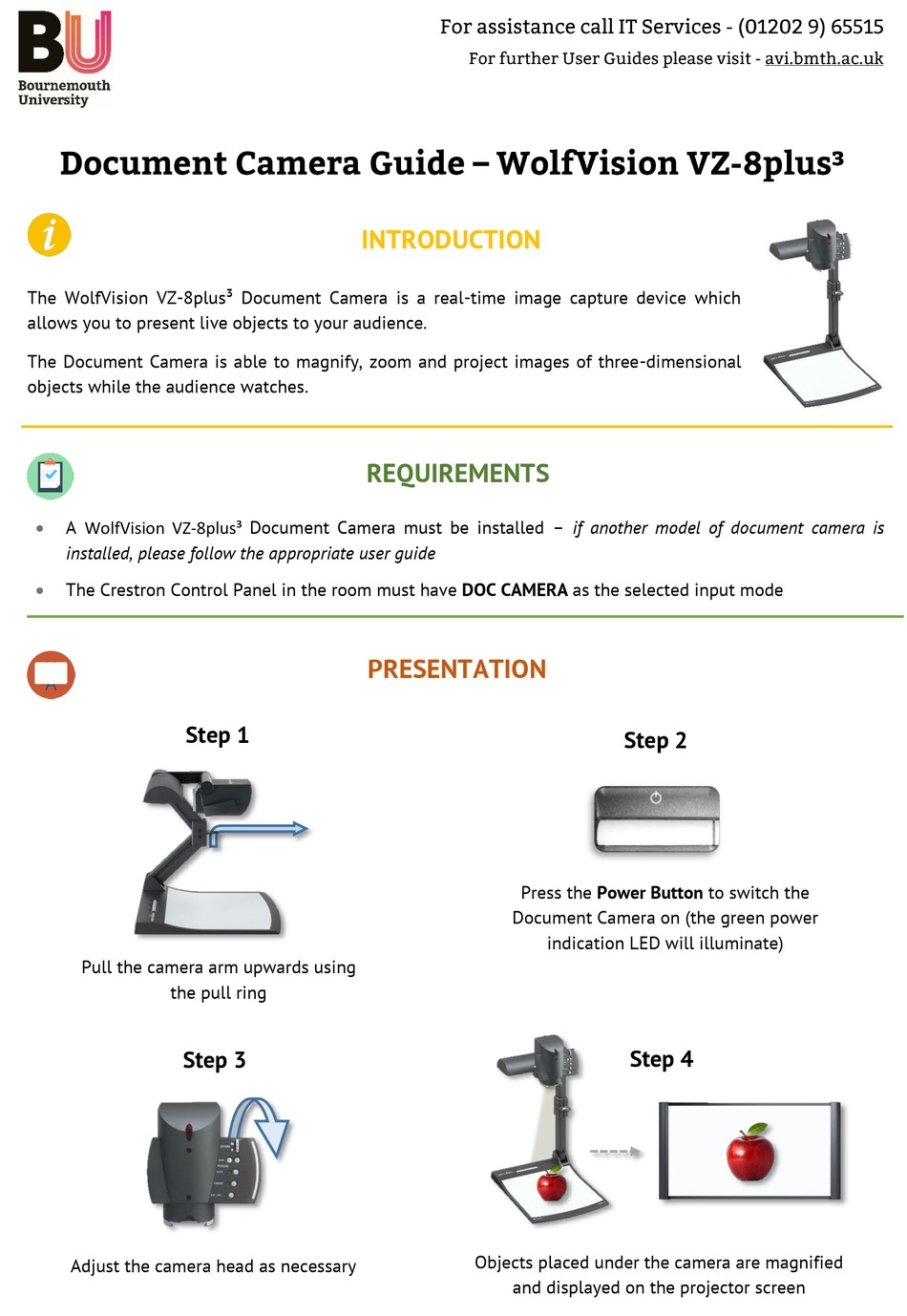

The WolfVision VZ-8plus³ Document Camera is a real-time image capture device which

allows you to present live objects to your audience.

The Document Camera is able to magnify, zoom and project images of three-dimensional

objects while the audience watches.



A WolfVision VZ-8plus³ Document Camera must be installed – if another model of document camera is

installed, please follow the appropriate user guide



The Crestron Control Panel in the room must have DOC CAMERA as the selected input mode

Step 1

Pull the camera arm upwards using

the pull ring

Step 3

Adjust the camera head as necessary

INTRODUCTION

Press the Power Button to switch the

Document Camera on (the green power

Objects placed under the camera are magnified

and displayed on the projector screen

Step 2

indication LED will illuminate)

Step 4

Table of Contents

Do you have a question about the VZ-8plus3 and is the answer not in the manual?

Page 1 REQUIREMENTS  A WolfVision VZ-8plus³ Document Camera must be installed – if another model of document camera is installed, please follow the appropriate user guide  The Crestron Control Panel in the room must have DOC CAMERA as the selected input mode...
Page 2: Troubleshooting
Operating Panel Controls Zoom Wheel (menu: scroll wheel) - turn the wheel down to zoom in & up to zoom out Manual Focus Keys (menu: select keys) - press to manually focus the image Auto Focus Key (menu: help key) - press to switch Auto Focus on/off Freeze Key - press to freeze the current image External Input / Menu Key –...
