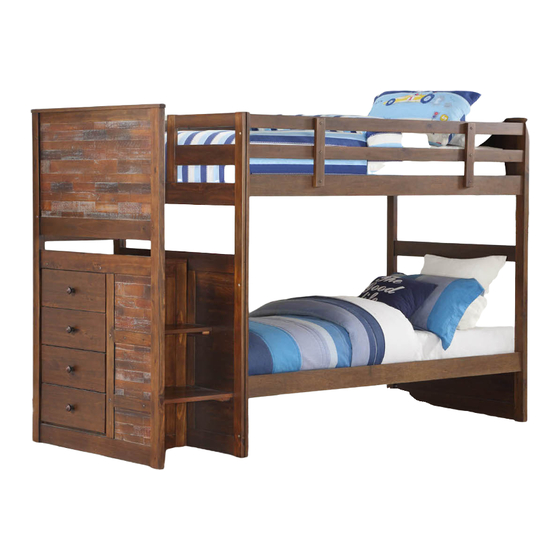

9018 ARTESIAN STAIR BUNK

Advertisement

loading
Need help?

Need help?

Do you have a question about the Artesian 9018 and is the answer not in the manual?

Questions and answers

Related Manuals for Donco Artesian 9018

Summary of Contents for Donco Artesian 9018

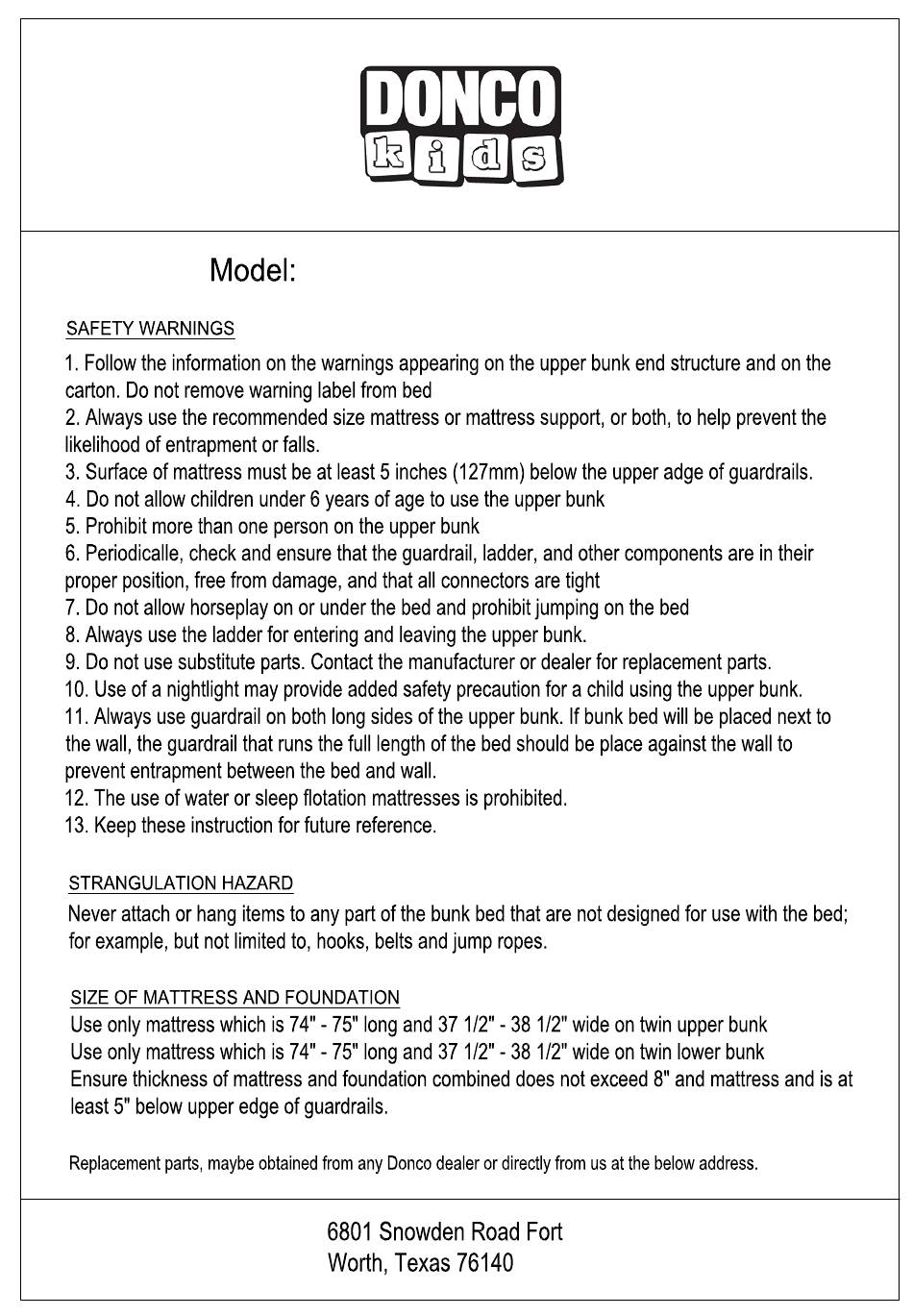

  • Page 1 9018 ARTESIAN STAIR BUNK...
  • Page 2 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 1/11 Princeton Section Assembly Hardware DESCRIPTION Q'ty DESCRIPTION Q'ty 2pcs Furniture Screw (Ø1/4x70mm) Allen Key 4pcs 14pcs Furniture Screw (Ø1/4x50mm) Knob 4pcs Bolt (Ø4x40mm)
  • Page 3 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 2/11 Outside Princeton Section Panel Upper Bunk Safety Rail 1 PC 4 PCS Inside Princeton Section Panel 1 PC Box A Upper Mattress Support Rail 2 PCS Outside Bunk Bed Section Panel 1 PC Inside Bunk Bed Section Panel Box B...
  • Page 4 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 3/11 Place the handle in front of the drawer panel and insert the screw into the pre-drilled holes. Tighten it with screwdriver (not provided).
  • Page 5 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 4/11 1. Open the Chest Box and position the Chest (A) with the Drawer Fronts opening either to the LEFT (Steps on the Left End of Bunk Bed). 2. Position the Outside Princeton Section Panel (B) so that the opening in the Panel is in Front of the Chest Drawer Fronts.
  • Page 6 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 5/11 5. Position the Inside Princeton Section Panel (C) with the back side of the Chest (A). 6. Slide the Inside Princeton Sec ack of the Chest (A). Align the holes through the Inside Princeton Section Panel (C) with the holes in the edge of the Chest Top ( Top Step).
  • Page 7 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 6/11 LEFT ASSEMBLY 8. Position the Princeton Section Back Panel (M) in-between the Inside and Outside Princeton Section End Panels (B&C). Insert 2- Furniture Screws (3) from the outside panel (B) and 2- furniture screw (5) to the Inside Panels (C) into the Back Panel (M) and tighten by using the Allen Key (4) provided.

  • Page 8: Hardware List

    ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 7/11 HARDWARE LIST DESCRIPTION Q'ty DESCRIPTION Q'ty 8pcs 18pcs Machine Screw (Ø1/4x28mm) Machine Screw (Ø1/4x75mm) 16pcs 18pcs Half Moon (Ø1/4) Female Half Moon (Ø1/4x15mm) 4pcs 16pcs Wood Dowel (Ø10x40mm) Furniture Screw (Ø1/4x70mm) 4pcs 48pcs Furniture Screw (Ø1/4x50mm)
  • Page 9 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 8/11 3. IMPORTANT: Make sure that the access opening for the upper Bunk Bed on the Inside Bunk Bed Panel is toward the Back Side/ Wall Side of the Bed, as you would face it when fully assembled.
  • Page 10 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 9/11 12. Align the Wooden Dowels (9) in the end of the Upper Bunk Safety Rails (N) with the holes in the Outside Bunk Bed End Panel (G) and the Inside Bunk Bed End Panel (H). 13.
  • Page 11 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 10/11 22. Place the Princeton Section in its preferred nal location in the room. 23. Align the Bunk Bed section with the Princeton Section. 24. Slide the Bunk Bed Inner End Panel up to and ush with the Princeton Section. 25.
  • Page 12 ASSEMBLY INSTRUCTIONS # 9018 ARTESIAN STAIR BUNK Page 11/11 SIDE - RAIL SLAT ROLL...
