Summary of Contents for Donco 316

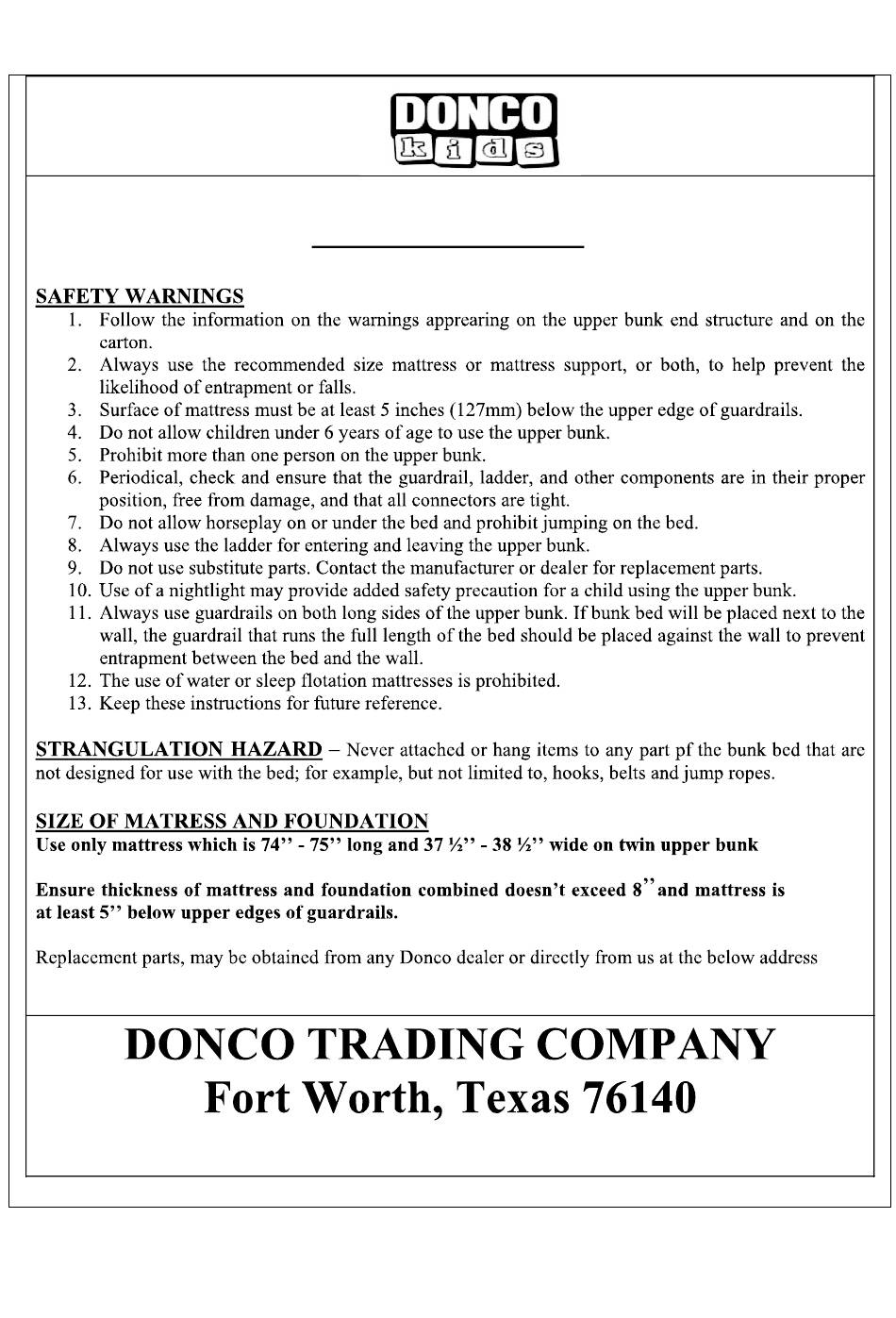

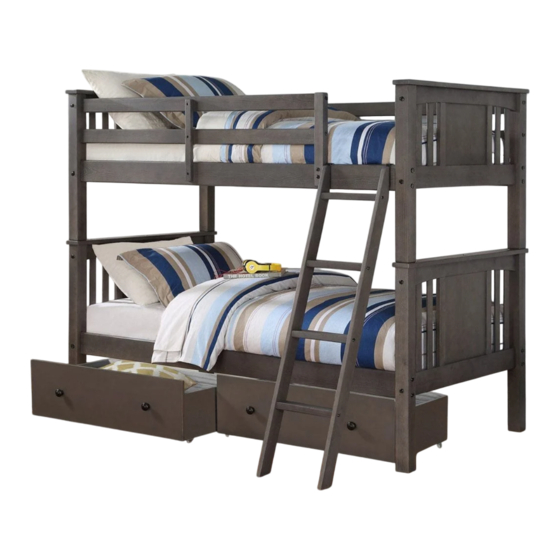

- Page 1 # 316 Bunk bed...
- Page 2 BUNK BED ASSEMBLY MANUAL #316...
-
Page 3: Parts List
BUNK BED ASSEMBLY MANUAL #316 PARTS LIST TOP POST TOP POST TOP POST 2 PCS 1 PC 1 PC UPPER HEADBOARD TOP CAP BOTTOM POST BOTTOM POST 2 PCS 2 PCS 2 PCS... - Page 4 BUNK BED ASSEMBLY MANUAL #316 LOWER HEADBOARD TOP CAP SHORT GUARDRAIL POST TOP FRONT SIDE RAIL 2 PCS 1 PC 1 PC TOP BACK SIDE RAIL BOTTOM SIDE RAIL SLAT 1 PC 2 PCS 26 PCS LONG GUARDRAIL SHORT GUARDRAIL...
- Page 5 BUNK BED ASSEMBLY MANUAL #316 2 PCS 2 PCS 12 PCS 8 PCS STEP 1 Insert wood dowels (7) into the large holes of the top headboard assembly (S), Attach upper headboard top cap (F) to top headboard assembly (S) using wood joint connectors (2) as shown. Tighten the wood joint connectors (2) with the hex key (8).
- Page 6 BUNK BED ASSEMBLY MANUAL #316 STEP 2 Insert wood dowels (7) into the end holes of the top headboard assembly (S). Attach top posts (A) and (B) to the top headboard assembly (S) using wood joint connectors (3) as shown. Tighten the wood joint connectors (3) with the hex key (8).
- Page 7 BUNK BED ASSEMBLY MANUAL #316 Warning label 2 PCS STEP 3 Repeat the previous step to assemble the remaining three sets of headboards. Be sure to pair the bottom posts (D) and (E) for one pair; (E) and (D) for another; and the top posts (C) and (A) for the last pair.
- Page 8 BUNK BED ASSEMBLY MANUAL #316 8 PCS 8 PCS STEP 4 Attach the two headboards with bottom posts (D and E) to bottom side rails (K) using joint connectors (1) and barrel nuts (9) as shown. Tighten the joint connectors (1) with the hex key (8).
- Page 9 BUNK BED ASSEMBLY MANUAL #316 STEP 5 Insert a wood dowel (7) into each end of the long guardrails (M). Attach two long guardrails (M) and two top side rails (I and J) to top posts (A and B) & (A and C) as shown. Fasten top side rails (I and J) with joint connectors (1) and barrel nuts (9).
- Page 10 BUNK BED ASSEMBLY MANUAL #316 STEP 6 Insert wood dowel (7) into each end of the short guardrails (N). Attach two short guardrails (N) to short guardrail post (H) with wood joint connectors (3) as shown. Fasten two short guardrails (N) to top post (A) with wood joint connectors (3). Fasten the short...
-
Page 11: Wood Screws
SIDE RAIL Headboar SLAT Footboard WOOD SCREWS BUNK BED ASSEMBLY MANUAL #316 PHILLIPS SCREWDRIVER IMPORTANT: Install slats in upper bunk before stacking on lower bunk Bed rails may bow outwards slightly after installation To compensate, attach one end of the center slat to the left bed rail... - Page 12 SLAT Footboard WOOD SCREWS BUNK BED ASSEMBLY MANUAL #316 STEP 8 Place four metal dowels (5) into the holes in the lower headboard top cap (G). Stack the top bunk onto the bottom bunk with the help of another person.
- Page 13 Headboard SLAT Footboard WOOD SCREWS BUNK BED ASSEMBLY MANUAL #316 8 PCS 8 PCS STEP 9 To assemble the ladder, insert wood dowels (7) into the end of the ladder steps (Q). Attach left ladder end (O) and right ladder end (P) to ladder steps (Q) with wood joint connectors (2). Tighten the wood joint connectors...
- Page 14 SLAT Footboard WOOD SCREWS BUNK BED ASSEMBLY MANUAL #316 back view STEP 10 Attach the guardrail leg (R) to the short guardrails (N) and top front side rail (I) with flat head screws (6). Attach another guardrail leg (R) (on the other side of the bed) to long guardrails (M) and top back side rail (J) with flat head screws (6) as shown.
- Page 15 Instructions for Converting the bunk bed into two single beds #316 Remove the ladder and all the guardrails. With the help of another person, remove the top bunk from the lower bunk. Disassemble the side rails from all headboards (top and lower bunks).
