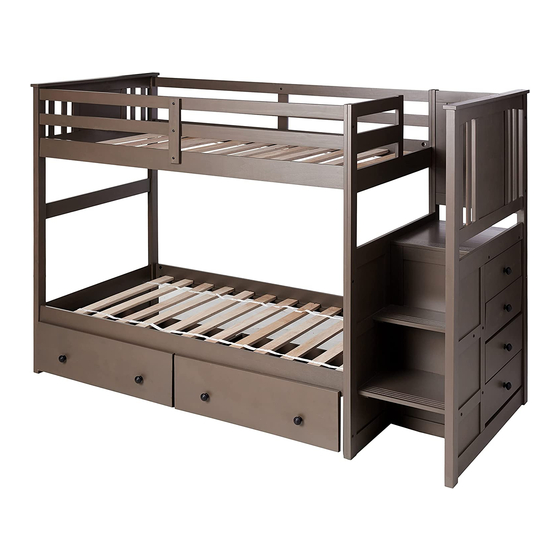

# 2204 PRINCETON STAIR BUNK
SAFETY WARNINGS
1. Follow the information on the warnings appearing on the upper bunk end structure and on the carton. Do not
remove warning label from bed.
2. Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood of
entrapment or falls.
3. Surface of mattress must be at least 5 inches (127mm) below the upper edge of guardrails.
4. Do not allow children under 6 years of age to use the upper bunk.
5. Prohibit more than one person on the upper bunk.
6. Periodicall, check and ensure that the guardrail, ladder, and other components are in their proper position,
free from damage, and that all connectors are tight.
7. Do not allow horseplay on or under the bed and prohibit jumping on the bed.
8. Always use the ladder for entering and leaving the upper bunk.
9. Do not use substitute parts. Contact the manufacturer or dealer for replacement parts.
10. Use of a nightlight may provide added safety precaution for a child using the upper bunk.
11. Always use guardrail on both long sides of the upper bunk. If bunk bed will be placed next to the wall, the
guardrail the runs the full length of the bed should be place against the wall to prevent entrapment between
the bed and wall.
12. The use of water or sleep flotation mattresses is prohibited.
13. Keep these instruction for future reference.
STRANGULATION HAZARD -
designed for use with the bed ; for example, but not limited to, hooks, belts and jump ropes.
SIZE OF MATTRESS AND FOUNDATION
Use only mattress, foundation and desk combined which is 74 - 75 inches long and 37
upper bunk.
Ensure thickness of mattress and foundation combined does not exceed 8
least 5 inches below edge of guardrails.
Replacement parts, may be obtained from any Donco dealer or directly from us at the below address.
DONCO TRADING COMPANY
Fort Worth, Texas 76140
SLATE - GREY
Never attach or hang items to any part of the bunk bed that are not
1
1
- 38
inches wide on
2
2
1
inches and mattress and is at
2
Advertisement
Table of Contents
Related Manuals for Donco PRINCETON STAIR BUNK 2204
Summary of Contents for Donco PRINCETON STAIR BUNK 2204
- Page 1 Ensure thickness of mattress and foundation combined does not exceed 8 inches and mattress and is at least 5 inches below edge of guardrails. Replacement parts, may be obtained from any Donco dealer or directly from us at the below address. DONCO TRADING COMPANY Fort Worth, Texas 76140...
- Page 2 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 1/11 LEFT ASSEMBLY RIGHT ASSEMBLY Princeton Section Assembly Hardware DESCRIPTION Q'ty DESCRIPTION Q'ty 2pcs Furniture Screw (Ø1/4x70mm) Allen Key 6pcs 14pcs Furniture Screw (Ø1/4x50mm) Screw (Ø4x30mm) 4pcs 4pcs Bolt (Ø4x45mm) Knob...
- Page 3 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 2/11 Outside Princeton Section Panel Upper Bunk Safety Rail 1 PC 4 PCS Inside Princeton Section Panel 1 PC Box A Upper Mattress Support Rail 2 PCS Outside Bunk Bed Section Panel 1 PC Inside Bunk Bed Section Panel Lower Mattress Support Rail...
- Page 4 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 3/11 Place the handle in front of the drawer panel and insert the screw into the pre-drilled holes. Tighten it with screwdriver (not provided).
- Page 5 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 4/11 LEFT ASSEMBLY RIGHT ASSEMBLY 1. Open the Chest Box and position the Chest (A) with the Drawer Fronts opening either to the LEFT (Steps on the Left End of Bunk Bed) or to the RIGHT (Steps on Right End of the Bunk Bed).
- Page 6 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 5/11 LEFT ASSEMBLY RIGHT ASSEMBLY 5. Position the Inside Princeton Section Panel (C) with the back side of the Chest (A). 6. Slide the Inside Princeton Section Panel (C) up to and flush with the Back of the Chest (A). Align the holes through the Inside Princeton Section Panel (C) with the holes in the edge of the Chest Top ( Top Step).
- Page 7 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 6/11 LEFT ASSEMBLY RIGHT ASSEMBLY 8. Position the Princeton Section Back Panel (M) in-between the Inside and Outside Princeton Section End Panels (B&C). Insert 2- Furniture Screws (6) from the outside of both the Inside and Outside Panels (B&C) and into the Back Panel (M) and tighten by using the Allen Key (4) provided.
- Page 8 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 7/11 HARDWARE LIST DESCRIPTION Q'ty DESCRIPTION Q'ty 8pcs 12pcs Machine Screw (Ø1/4x32mm) Machine Screw (Ø1/4x80mm) 16pcs 12pcs Half Moon (Ø1/4) Female Half Moon (Ø1/4x15mm) 4pcs 16pcs Wood Dowel (Ø10x40mm) Furniture Screw (Ø1/4x70mm) 4pcs 16pcs...
- Page 9 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 8/11 LEFT ASSEMBLY RIGHT ASSEMBLY 3. IMPORTANT: Make sure that the access opening for the upper Bunk Bed on the Inside Bunk Bed Panel is toward the Back Side/ Wall Side of the Bed, as you would face it when fully assembled.
- Page 10 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 9/11 LEFT ASSEMBLY RIGHT ASSEMBLY 12. Align the Wooden Dowels (9) in the end of the Upper Bunk Safety Rails (N) with the holes in the Outside Bunk Bed End Panel (G) and the Inside Bunk Bed End Panel (H). 13.
- Page 11 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 10/11 LEFT ASSEMBLY RIGHT ASSEMBLY 22. Place the Princeton Section in its preferred final location in the room. 23. Align the Bunk Bed section with the Princeton Section. 24. Slide the Bunk Bed Inner End Panel up to and flush with the Princeton Section. 25.
- Page 12 ASSEMBLY INSTRUCTIONS # 2204 PRINCETON STAIR BUNK - SLATE GREY Page 11/11 LEFT ASSEMBLY RIGHT ASSEMBLY SIDE - RAIL SLAT ROLL...
