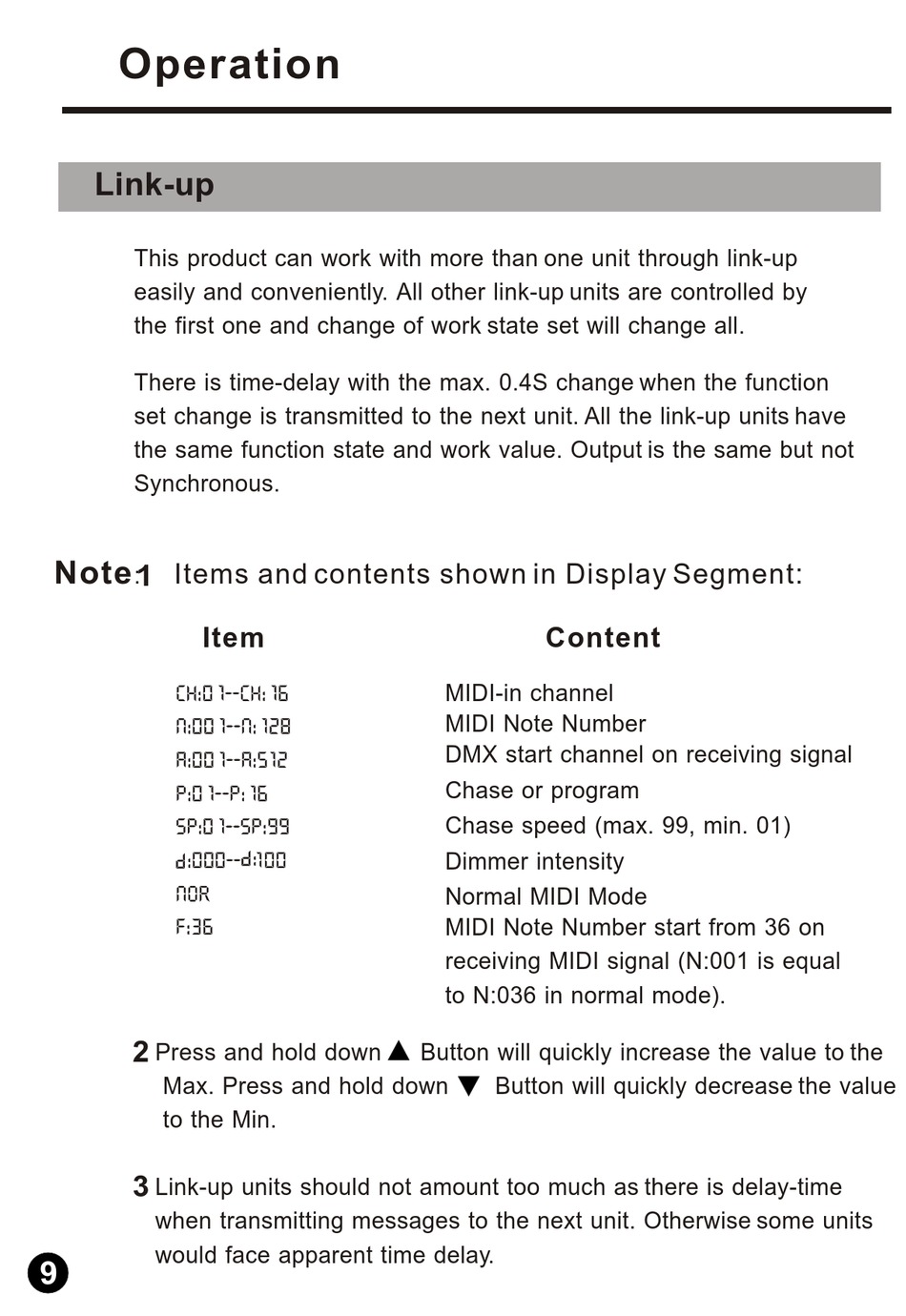

Operation

Link-up

This product can work with more than one unit through link-up
easily and conveniently. All other link-up units are controlled by
the first one and change of work state set will change all.
There is time-delay with the max. 0.4S change when the function
set change is transmitted to the next unit. All the link-up units have
the same function state and work value. Output is the same but not
Synchronous.
Note
Items and contents shown in Display Segment:
1
:
Item
CH:01--CH:16
N:001--N:128
A:001--A:512
P:01--P:16
SP:01--SP:99
:000-- 100
Nor
F:36
2
Press and hold down
Max. Press and hold down
to the Min.
3
Link-up units should not amount too much as there is delay-time
when transmitting messages to the next unit. Otherwise some units
would face apparent time delay.
9
:
Button will quickly increase the value to the
Content
MIDI-in channel
MIDI Note Number
DMX start channel on receiving signal
Chase or program
Chase speed (max. 99, min. 01)
Dimmer intensity
Normal MIDI Mode
MIDI Note Number start from 36 on
receiving MIDI signal (N:001 is equal
to N:036 in normal mode).
Button will quickly decrease the value
