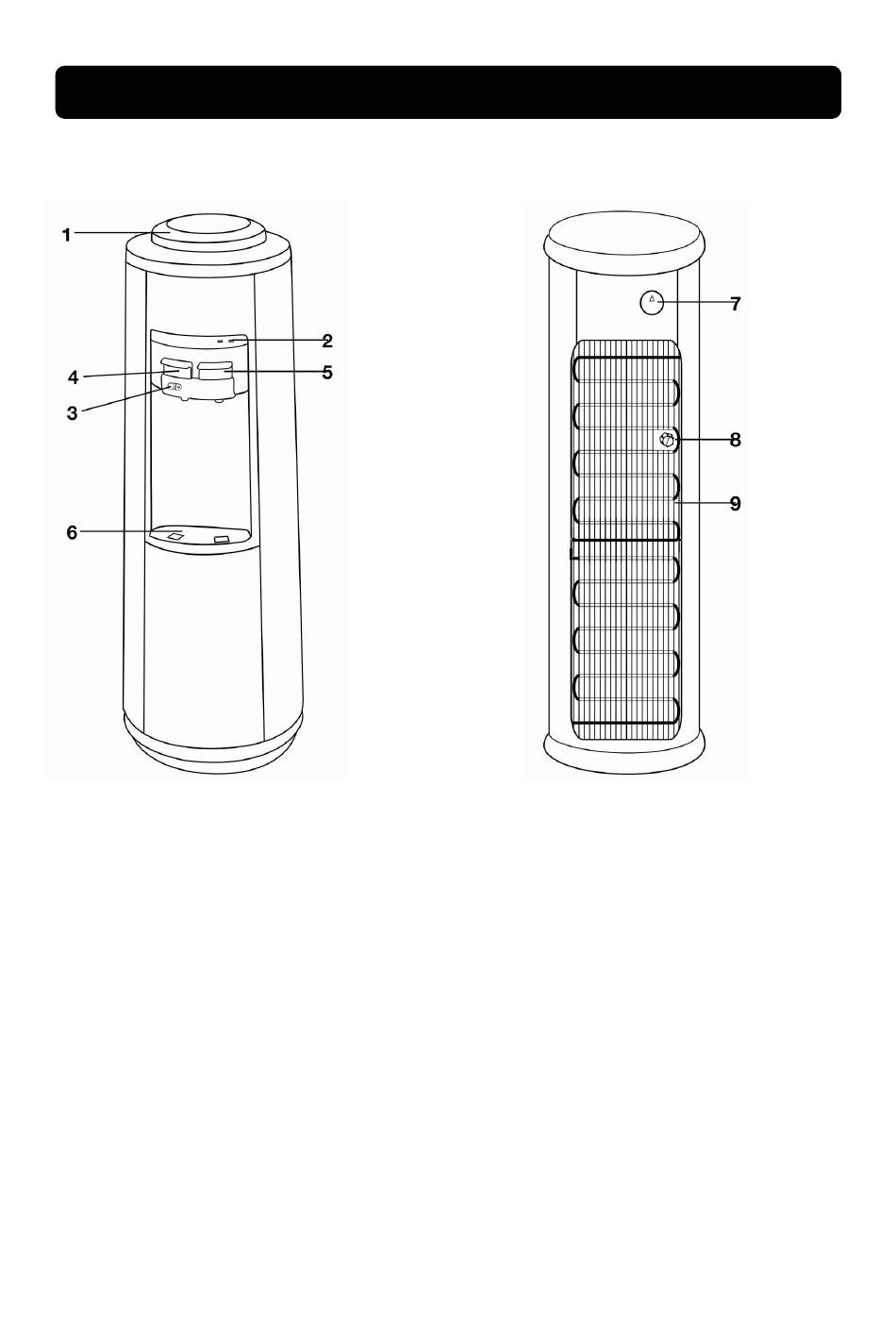

Front Side

Description:
1. Bottle support
2. Indicator lamp
A. Red indicator lamp
-
Blinking: Heating element is operating
-
On: Water temperature is optimum, water is ready for use
-
Off: Heating element is off, exercise caution when dispensing water, it may still be hot.
B. Blue Indicator Lamp
-
On: Cold water temperature is optimum, water is ready for use
-
Off: Water is cooling. At this moment water can still be used, but it may not be at optimum
temperature
3. Child lock
4. Hot water tap / button
5. Cold water tap / button
6. Water drip pan
7. Cold water temperature regulator thermostat
8. Drainage hole
9. Condenser
Part 1 :
Name of Parts

Back Side
