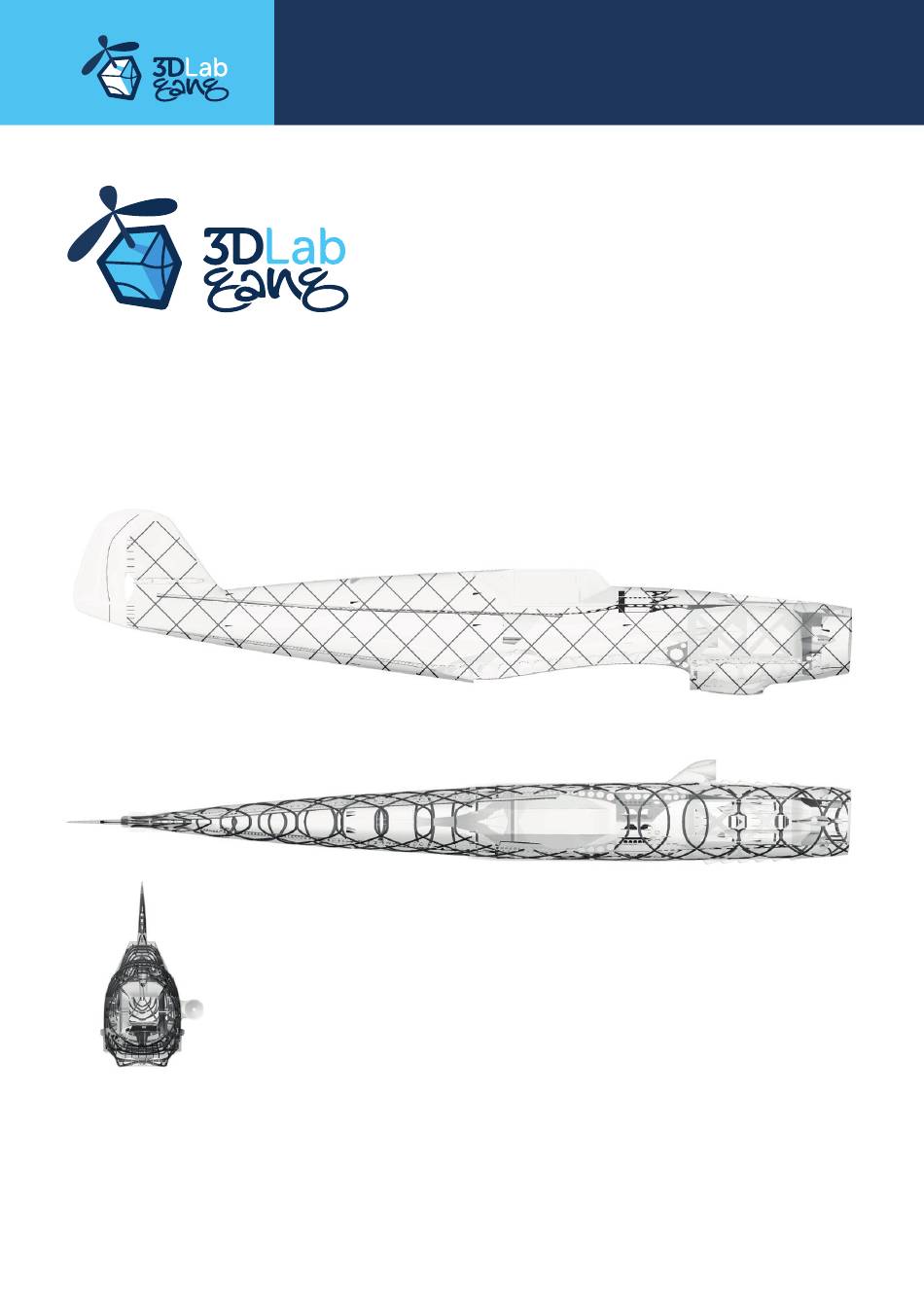

Page 1: User Guide
... print your plane | www.3DLabPrint.com User Guide rev. 2018/08 Fully 3d printable Messerschmitt Bf 109 H/F upgrade... - Page 2 ... print your plane | www.3DLabPrint.com 3D Labprint Messerschmitt Bf 109 H/F upgrade Introduction Do you want a sturdier Messerschmitt fuselage? You can now print the diagonal mesh reinforced fuselage. No more wandering weather grabbing the airplane at it’s most usual place (just behind the cockpit) will result in that annoying cracking sound.
- Page 3 ... print your plane | www.3DLabPrint.com Changes • Fuselage reinforcement (45 degree mesh in the fuselage) • Fixed rudder (removed rudder horn and bowden tube), redesigned to glue the rudder to the fuselage • Battery connection from outside (two channels for cable output to connect the battery after the wing has been attached) •...
- Page 4 ... print your plane | www.3DLabPrint.com How to print The modified parts use the same print settings as the original 3DLabprint ones. The modified stl, gcode and factory files have 3DLG (3D Lab Gang) at the end of their names. For detailed instructions regarding print settings, refer to the original 3DLabprint ME 109 H F userguide.
- Page 5 ... print your plane | www.3DLabPrint.com Comparison of print time and weight Print time comparison (h): Original 3DLabprint Modified 3DLG difference Fuselage 1 6:54 7:43 Fuselage 2 3:33 4:11 Ailerons etc 1:30 1:27 11:57 13:21 1:24 Print weight comparison (g):...
