Canarm 3000M Series User Manual

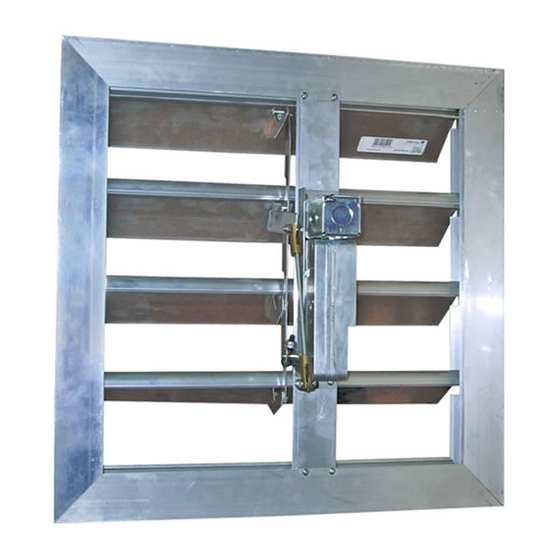

Motorized Back Draft Dampers User Guide

INSTALLATION

The motorized back draft dampers are available in
3 different mount options (Figure 1):
Series 3000M Side Mount (no flange),
Series 3100M Inward Mount (flange on outside)
Series 3200M Outward Mount (flange on inside).
Installation varies on the chosen mount option and
the specific customer application.

ELECTRICAL CONNECTIONS

WARNING: All electrical work should be
performed by a qualified electrician, following
local codes.
Damper motors are available in the following
voltages (must be specified at time of order):
115/230 Volt, 60 Hz, Single Phase
24 Volt AC
Electrical connections are made in the motor
wiring box.
115/230 Volt Connection (Figure 2)
Connect wires as shown in Figure 2.
Connect ground wire to the green
ground screw in the wiring box.
24 Volt AC Connection (Figure 3)
Connect wires as shown in Figure 3.
Connect ground wire to the green ground screw
in the wiring box.
Shutter opens when power is supplied, and closes
tight when power is off.
Motorized shutters can be wired through an on/off switch or using thermostat controls.
Never wire a motorized shutter in line with a variable speed fan.
This product is not for use in corrosive environments. Do not pressure wash.

REPLACEMENT PARTS

• 2W100 - 115/230 (115/230V motor)
• 2W104 24V AC motor
• G1206-KIT motorized shutter lever arm kit
***Non-standard shutters are non-returnable and cannot be cancelled.***
Installation or Product problems? Do not return to store of purchase.
Contact Canarm Service at 1-800-265-1833 (CANADA), 1-800-267-4427 (U.S.A.),
1-800-567-2513 (EN FRANCAIS) Monday to Friday 8:00 - 5:00 pm e.s.t.
M0097 - 07/11/12
• 2W134 Torque box motor return spring
CANARM LTD.
2157 PARKEDALE AVE., PO BOX 367
BROCKVILLE, ONTARIO K6V 5V6
TELEPHONE: (613) 342-5424
FAX: 1-800-263-4598

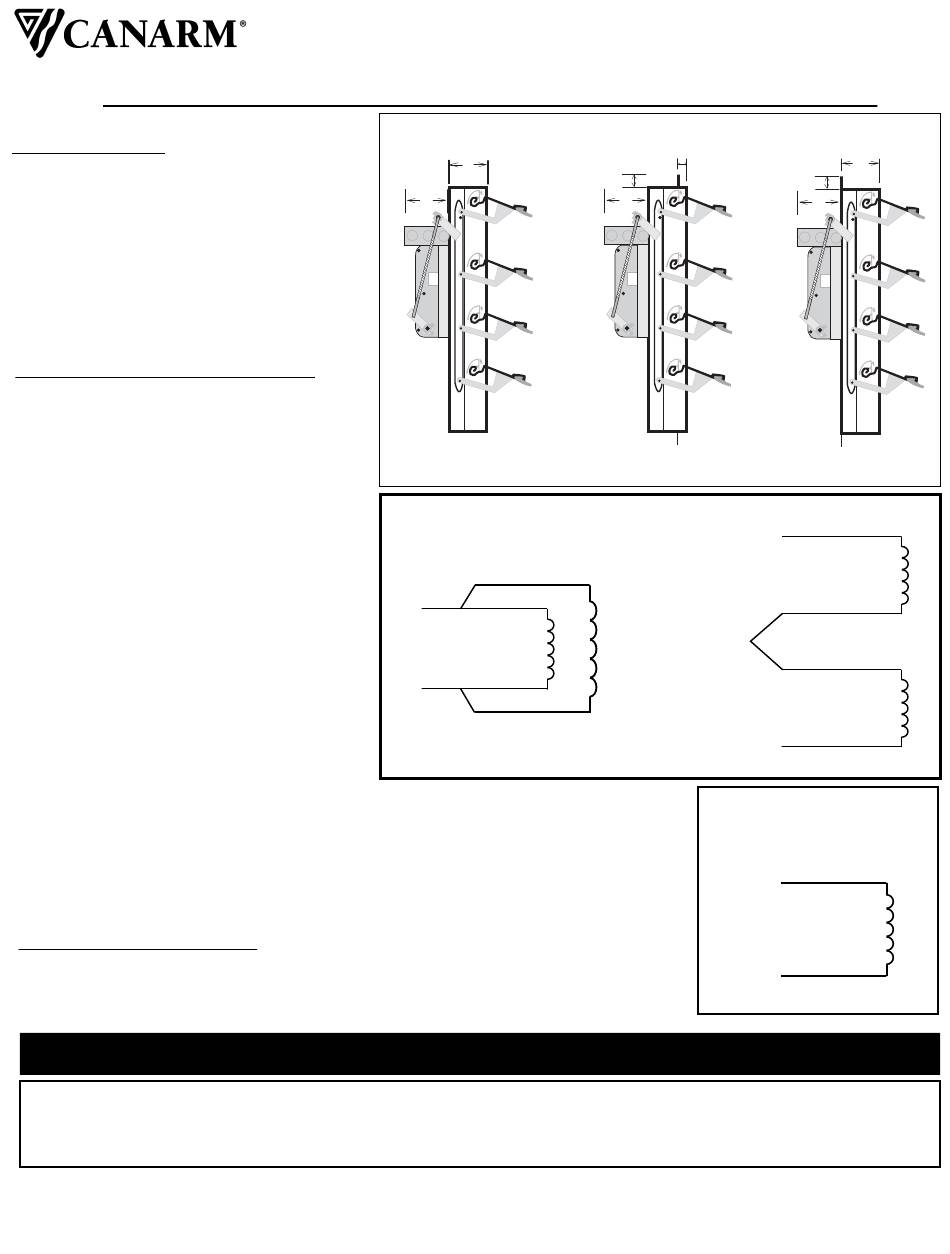

Figure 1
2.5"
6"
Series 3000M
Side Mount (no flange)
Figure 2
120 VOLTS
RED
BROWN
L1
LOW VOLTS
CONNECTION
BLACK
L2
WHITE
CANARM LTEE.
2555 RUE BERNARD LEFEBVRE
LAVAL, QUEBEC H7C 0A5
TELEPHONE: (450) 665-2535
FAX: (450) 665-0910
.5"
1.5"
6"
Series 3100M Inward
Mount (flange on outside)
L1
208/240 VOLTS
CONNECTION
JOIN
L2
Figure 3
L1
L2
ARTHUR MANUFACTURING FACILITY
#7686 CONCESSION 16, RR4
ARTHUR, ONTARIO N0G 1A0
TELEPHONE: (519) 848-3910
FAX: (519) 848-3948
2.5"
1.5"
6"
Series 3200M Outward
Mount (flange on inside)
RED
BLACK
BROWN
WHITE
WHITE
BROWN
