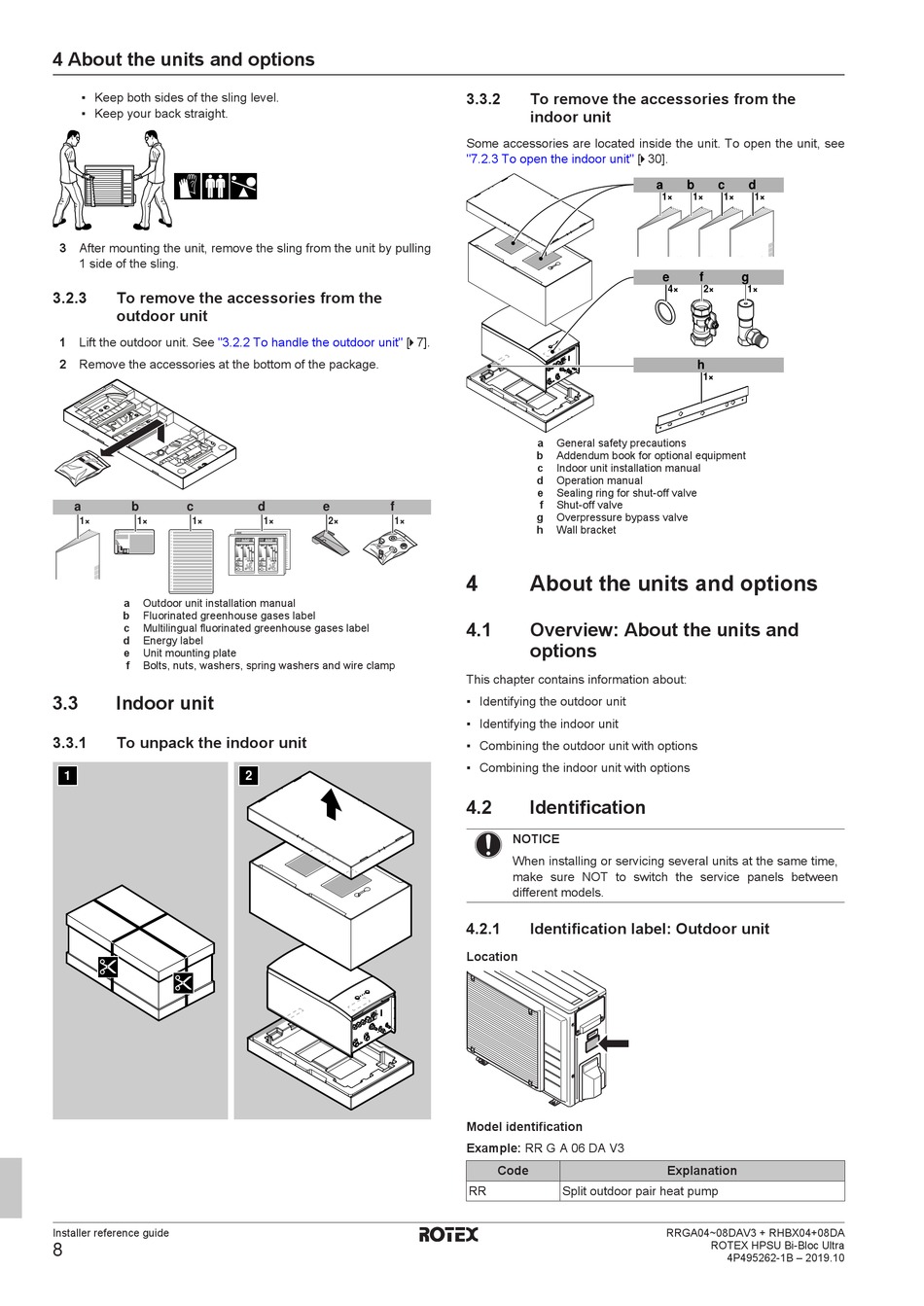

4 About the units and options

▪ Keep both sides of the sling level.
▪ Keep your back straight.
3 After mounting the unit, remove the sling from the unit by pulling
1 side of the sling.
3.2.3 To remove the accessories from the
outdoor unit
1 Lift the outdoor unit. See "3.2.2 To handle the outdoor
2 Remove the accessories at the bottom of the package.
a b c
1× 1× 1×
a Outdoor unit installation manual
b Fluorinated greenhouse gases label
c Multilingual fluorinated greenhouse gases label
d Energy label
e Unit mounting plate
f Bolts, nuts, washers, spring washers and wire clamp
3.3

Indoor unit

3.3.1

To unpack the indoor unit

1
Installer reference guide
8
unit" [ 4 7].
d e f
1× 2× 1×
ENERG Y IJA ENERG Y IJA
IE IA IE IA
2
3.3.2 To remove the accessories from the
indoor unit
Some accessories are located inside the unit. To open the unit, see
unit" [ 4 30].
"7.2.3 To open the indoor
a General safety precautions
b Addendum book for optional equipment
c Indoor unit installation manual
d Operation manual
e Sealing ring for shut-off valve
f Shut-off valve
g Overpressure bypass valve
h Wall bracket
4 About the units and options
4.1 Overview: About the units and
options
This chapter contains information about:
▪ Identifying the outdoor unit
▪ Identifying the indoor unit
▪ Combining the outdoor unit with options
▪ Combining the indoor unit with options
4.2

Identification

NOTICE
When installing or servicing several units at the same time,
make sure NOT to switch the service panels between
different models.
4.2.1

Identification label: Outdoor unit

Location
Model identification
Example: RR G A 06 DA V3
Code
RR Split outdoor pair heat pump
a b c d
1× 1× 1× 1×
e f g
4× 2× 1×
h
1×
Explanation
RRGA04~08DAV3 + RHBX04+08DA
ROTEX HPSU Bi-Bloc Ultra
4P495262-1B – 2019.10
