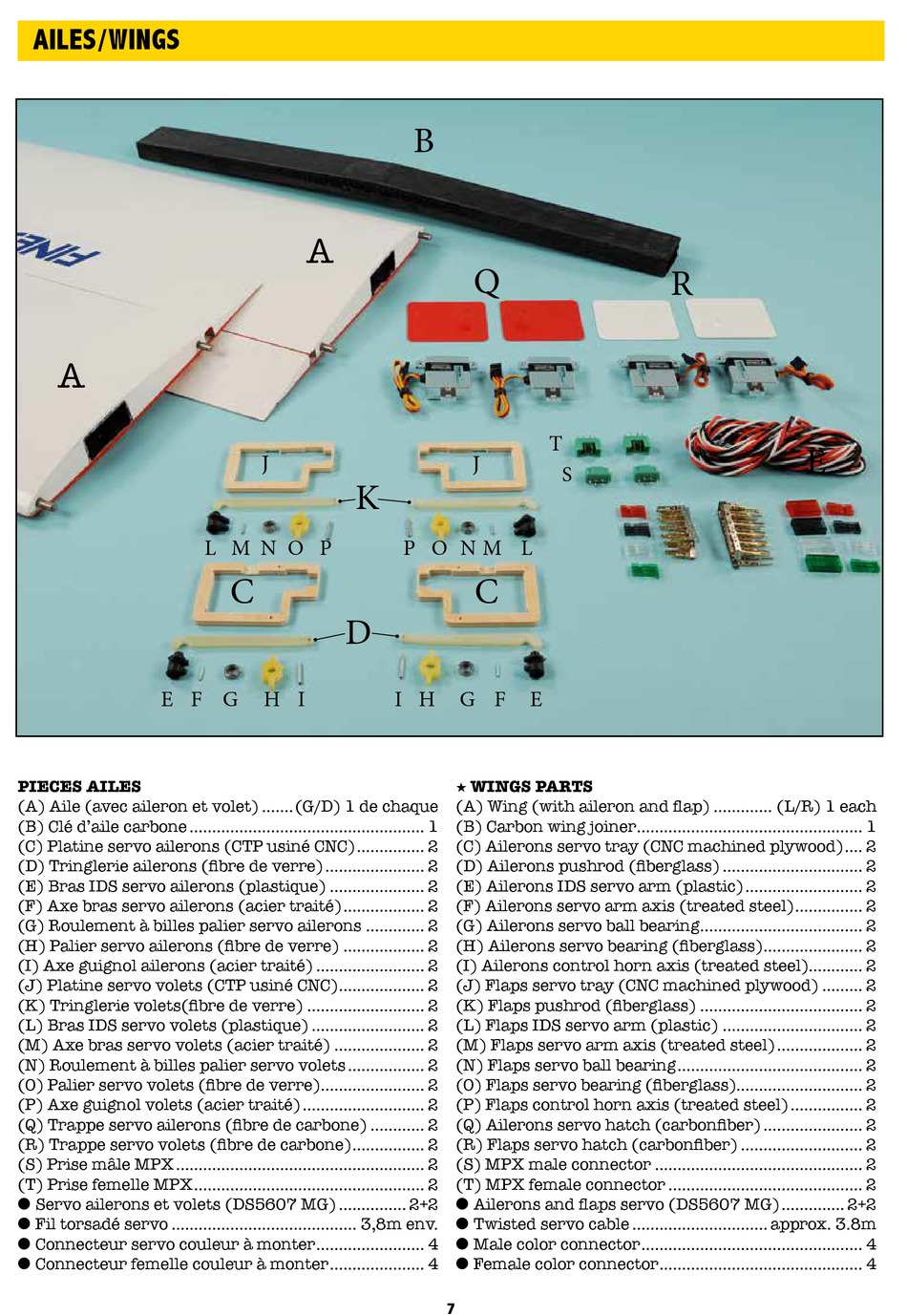

AILES/WINGS
A
E
PIECES AILES
(A) Aile (avec aileron et volet) .......(G/D) 1 de chaque
(B) Clé d'aile carbone .................................................... 1
(C) Platine servo ailerons (CTP usiné CNC) ............... 2
(D) Tringlerie ailerons (fibre de verre) ...................... 2
(E) Bras IDS servo ailerons (plastique) ..................... 2
(F) Axe bras servo ailerons (acier traité) .................. 2
(G) Roulement à billes palier servo ailerons ............. 2
(H) Palier servo ailerons (fibre de verre) .................. 2
(I) Axe guignol ailerons (acier traité) ........................ 2
(J) Platine servo volets (CTP usiné CNC) ................... 2
(K) Tringlerie volets(fibre de verre) .......................... 2
(L) Bras IDS servo volets (plastique) ......................... 2
(M) Axe bras servo volets (acier traité) .................... 2
(N) Roulement à billes palier servo volets ................. 2
(O) Palier servo volets (fibre de verre) ....................... 2
(P) Axe guignol volets (acier traité) ........................... 2
(Q) Trappe servo ailerons (fibre de carbone) ............ 2
(R) Trappe servo volets (fibre de carbone) ................ 2
(S) Prise mâle MPX ....................................................... 2
(T) Prise femelle MPX ................................................... 2
l Servo ailerons et volets (DS5607 MG) ............... 2+2
l Fil torsadé servo ......................................... 3,8m env.
l Connecteur servo couleur à monter ........................ 4
l Connecteur femelle couleur à monter ..................... 4
A
J
K
L
M
N
O
P
C
D
F
G
H
I
B
Q
T
J
S
P
O
N
M
L
C
I
H
G
F
E
WINGS PARTS
H
(A) Wing (with aileron and flap) ............. (L/R) 1 each
(B) Carbon wing joiner .................................................. 1
(C) Ailerons servo tray (CNC machined plywood) .... 2
(D) Ailerons pushrod (fiberglass) ............................... 2
(E) Ailerons IDS servo arm (plastic) .......................... 2
(F) Ailerons servo arm axis (treated steel) ............... 2
(G) Ailerons servo ball bearing .................................... 2
(H) Ailerons servo bearing (fiberglass) ...................... 2
(I) Ailerons control horn axis (treated steel)............ 2
(J) Flaps servo tray (CNC machined plywood) ......... 2
(K) Flaps pushrod (fiberglass) .................................... 2
(L) Flaps IDS servo arm (plastic) ............................... 2
(M) Flaps servo arm axis (treated steel) ................... 2
(N) Flaps servo ball bearing ......................................... 2
(O) Flaps servo bearing (fiberglass)............................ 2
(P) Flaps control horn axis (treated steel) ................ 2
(Q) Ailerons servo hatch (carbonfiber) ...................... 2
(R) Flaps servo hatch (carbonfiber) ........................... 2
(S) MPX male connector .............................................. 2
(T) MPX female connector ........................................... 2
l Ailerons and flaps servo (DS5607 MG) .............. 2+2
l Twisted servo cable .............................. approx. 3.8m
l Male color connector ................................................. 4
l Female color connector ............................................. 4
7
R
E
